Telemecanique

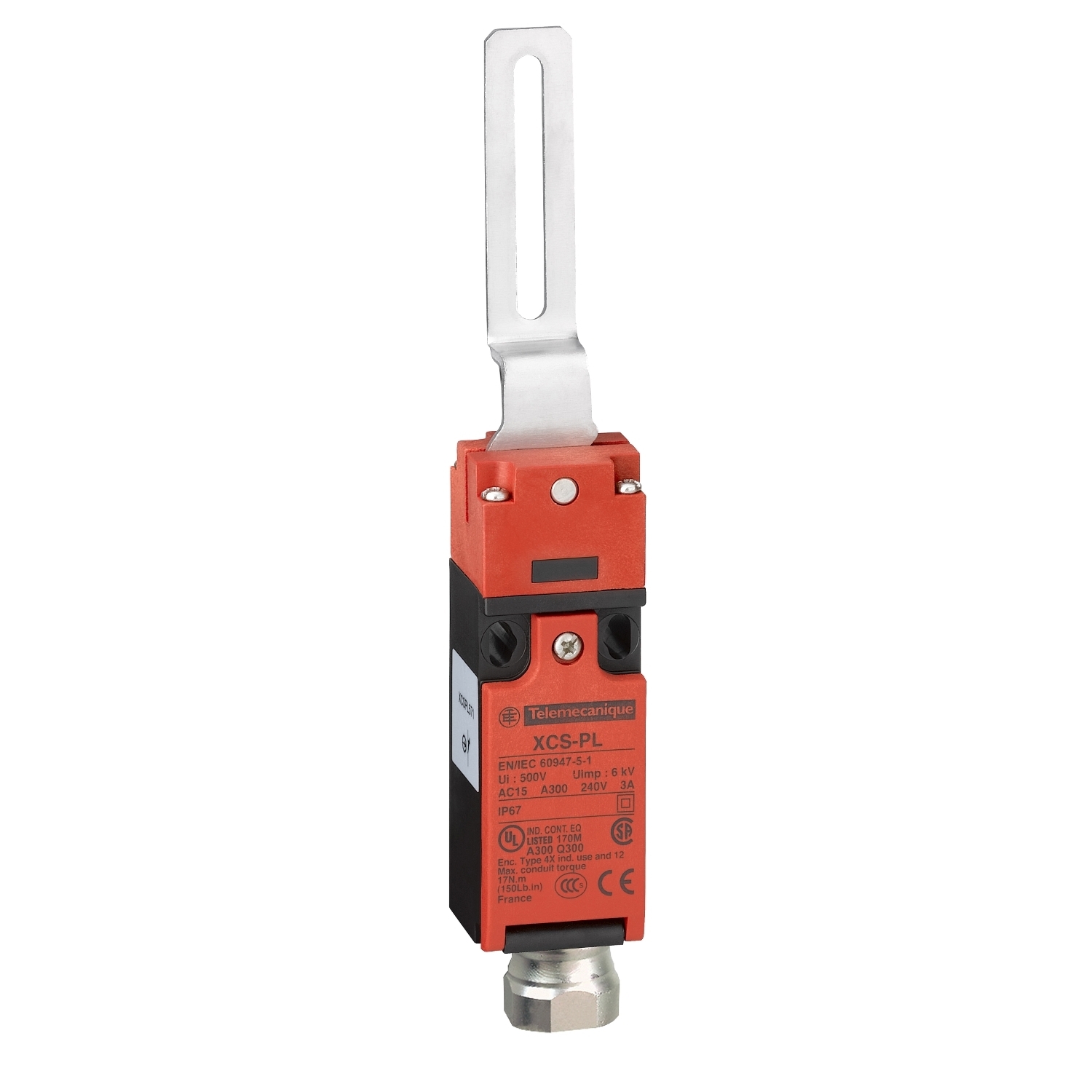

XCSPL583 Preventa Rotary Elbowed Lever Turret Head Safety Interlock Switch, 240/300 V AC, 10 A, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCSPL583
UPC:
785901326717
Item #:
68810

This XCSPL Safety Limit Switch has a stainless steel turret head rotary elbowed flush lever with an operation contact on the centered position, a double insulated plastic enclosure and a 1/2" NPT cable gland entry. It has 1 normally open and 1 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals & Documentation
Catalog Number XCSPL583
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Morocco
Made in USA No
Action Slow-break, break before make
Actuator Elbowed flush lever;Stainless steel
Amperage Rating 10
Application TURRET HEAD ROTARY LEVER
Connection Terminal
Contact Configuration 1 NC + 1 NO
Enclosure Polyamide PA66 fibre glass impregnated
Insulation Double insulated
Number of Poles 2
Special Features PLASTIC
Standard 50 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,EN 1088/ISO 14119-EN/IEC 60204-1-UL 508-EN/ISO 12100-EN/IEC 60947-5-1-EN/IEC 60947-5-4-CSA C22.2 NO 14,IP67 IEC 60529,UL-BG-CSA,CLASS II EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859876&lang=en-us
UPC 785901326717
GTIN 03389110866520
Item Type Guard switch
Size 1.18
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Operating Temperature -25-70 A Degrees C
Voltage Rating 300VAC
