Telemecanique

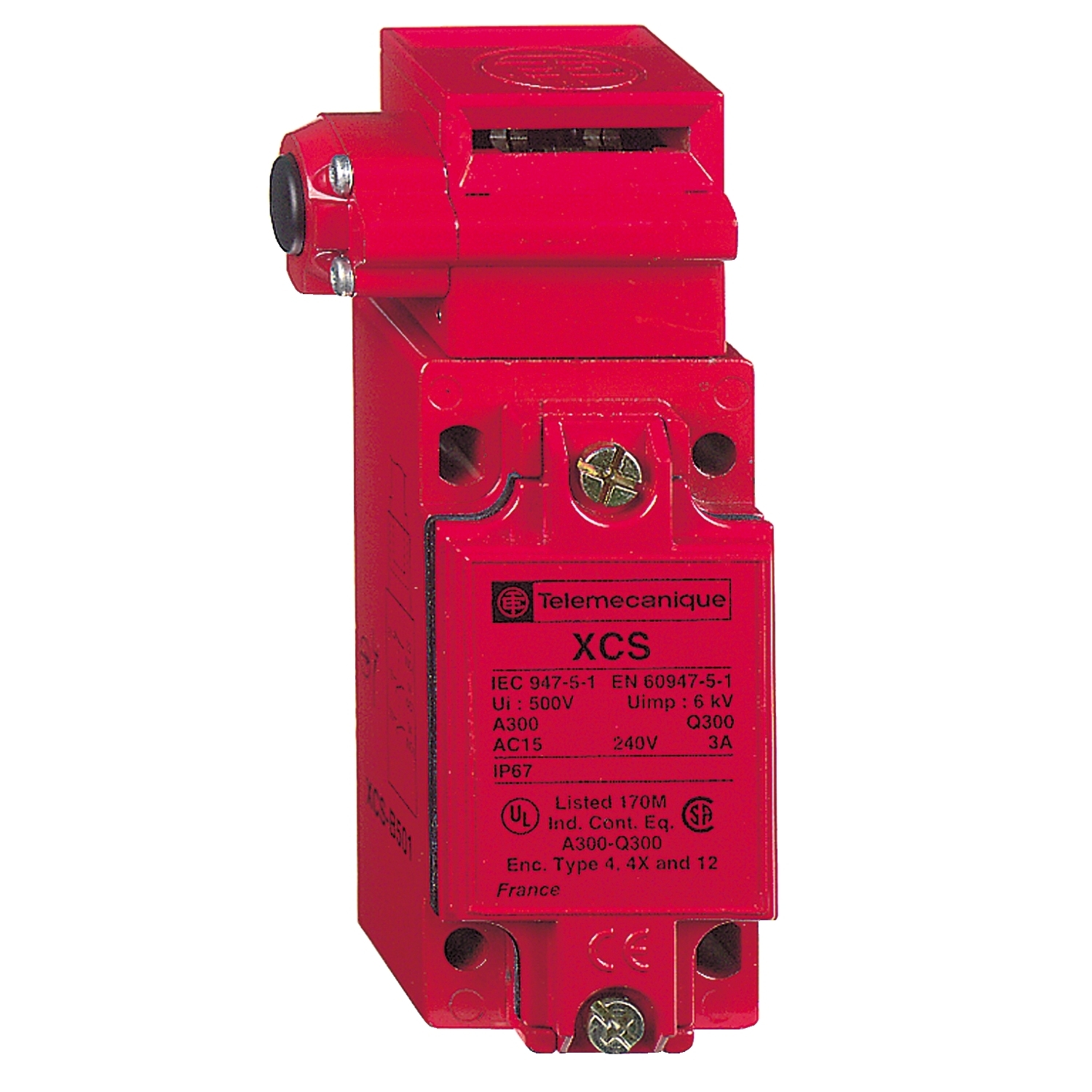

XCSB703 Preventa XCSB Safety Interlock Switch, 300 V AC, 10 A, 3 Poles

MFR:
Telemecanique Sensors
MFR #:
XCSB703
UPC:
785901377337
Item #:
68761

This XCSB Key Operated Safety Switch for guard doors with unlocking by pushbutton has an adjustable turret head and a robust red coated Zamak body with a 1/2" NPT cable gland entry, allowing for flexible installation. It has 1 normally open and 2 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 3 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals & Documentation
Catalog Number XCSB703
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Slow-break, break before make
Actuator KEY
Amperage Rating 10
Application KEY OPERATED TURRET HEAD
Connection Terminal 1 x 0.5...2 x 1.5 mm² with or without cable end
Contact Configuration 2 NC + 1 NO
Enclosure NEMA 4/4X/12 - IP67
Number of Poles 3
Operating Cycles 10 CYC/MN FOR MAXIMUM DURABILITY
Special Features without
Standard 10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-CSA C22.2 NO 14-EN 1088/ISO 14119-EN/ISO 12100-UL 508-EN/IEC 60204-1,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,UL-CSA,CLASS I EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858728&lang=en-us
UPC 785901377337
GTIN 03389110185393
Item Type Safety switch
Size 1.73
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Operating Temperature -25-70 A Degrees C
Voltage Rating 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1-3 A 240 V, AC-15, A300 EN/IEC 60947-5-1-0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
