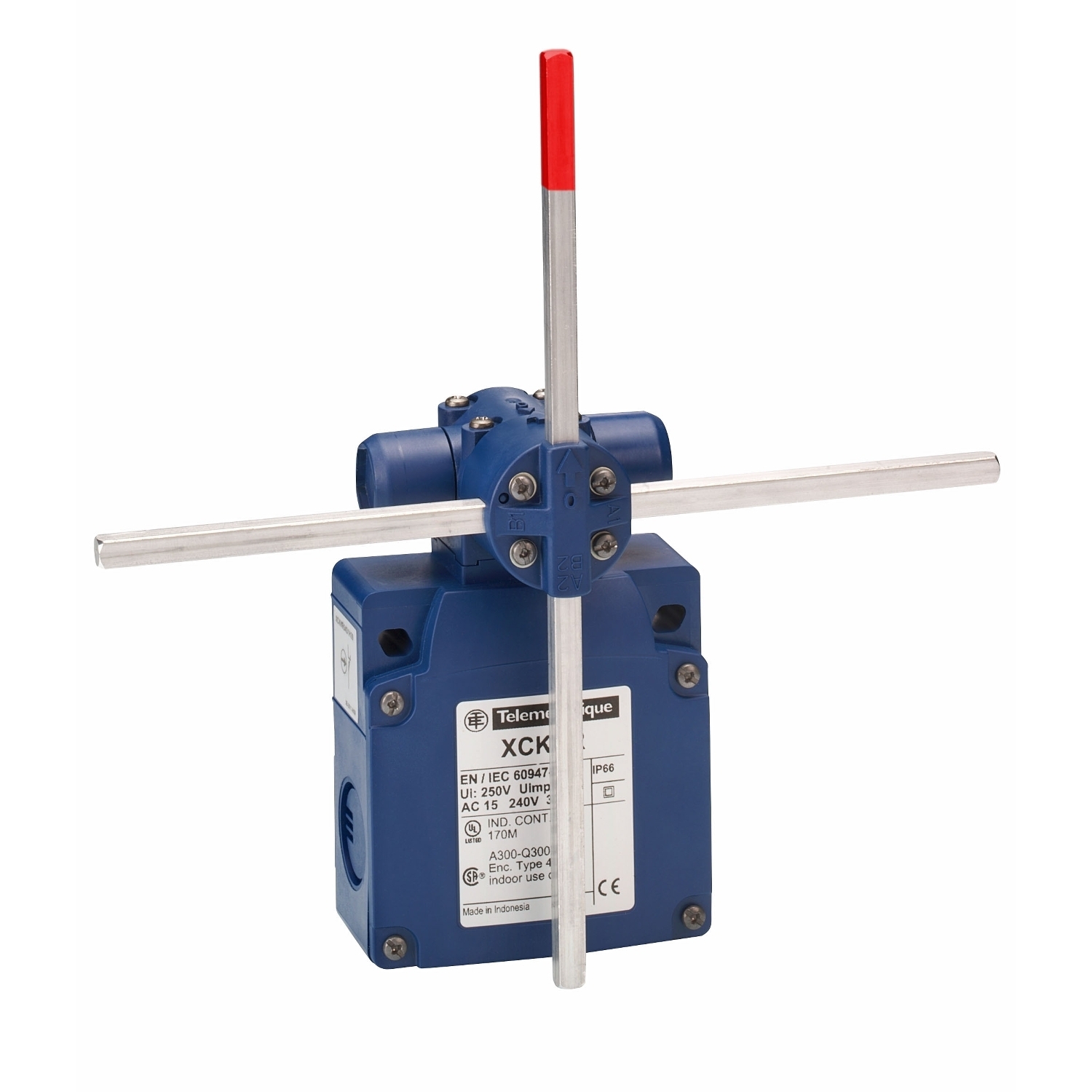

XCKVR24SR1H29 OsiSense Fixed Limit Switch, Rod Lever Actuator, 2NO-2NC Contact, 4 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKVR24SR1H29
- Item #:
- 687445
XCKVR24SR1H29 OsiSense Fixed Limit Switch, Rod Lever Actuator, 2NO-2NC Contact, 4 Poles
- MFR #:
- XCKVR24SR1H29
- Item #:
- 687445
limit switch XCKVR - stay put crossed rods lever 6mm - 2x(NC+NO) - slow - M20
Manuals & Documentation
| Catalog Number | XCKVR24SR1H29 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Action | Lateral approach, 2 directions;Slow-break, break before make;By any moving part |
| Actuator | Stay put crossed rods lever metal square rod 6 mm, L = 200 mm |
| Application | For hoisting and mechanical handling applications |
| Connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Contact Configuration | 2 x (1 NC + 1 NO) |
| Mounting | By The Body |
| Number of Poles | 4 |
| Special Features | FIXED,PLASTIC |
| Standard | 25 GN 10-500 HZ)EN/IEC 60068-2-6,50 GN EN/IEC 60068-2-27,CSA-CCC-UL-CE,EN/IEC 60947-5-1-CSA C22.2 NO 14-UL 508,IK04 EN 50102,IP65 EN/IEC 60529,CLASS II IEC 60536 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=150036355&lang=en-us |
| GTIN | 03389119077460 |
| Item Type | Limit switch |
| Size | 2.24 |
| Operating Temperature | -25-70 A Degrees C |
