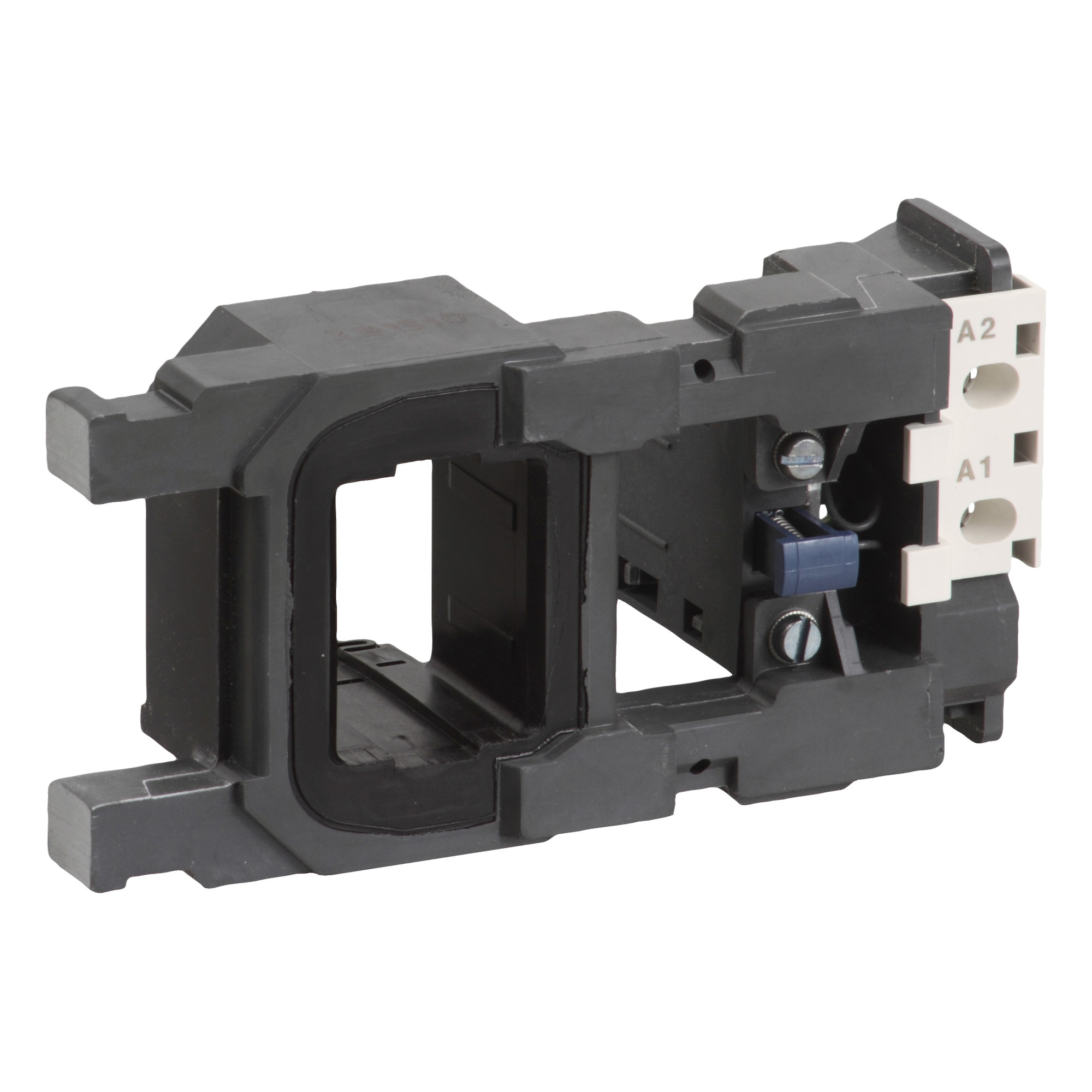

LX4FG024 Contactor Coil, 24 VDC, For Use With TeSys F LC1F185 and LC1F225 Contactor
- MFR:
- Schneider Electric
- MFR #:
- LX4FG024
- Item #:
- 686405
Discontinued
LX4FG024 Contactor Coil, 24 VDC, For Use With TeSys F LC1F185 and LC1F225 Contactor
- MFR #:
- LX4FG024
- Item #:
- 686405
TeSys F DC coil 24V (voltage code BD), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1 F185, F225. It operates in the voltage limits 0.85-1.1 Uc and environments until 55C. It provides to the contactor high operating rates until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Manuals & Documentation
| Catalog Number | LX4FG024 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | TeSys TeSys F LC1F contactor;LC1F185;LC1F225 |
| Coil Voltage | 24 V DC |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=641716&lang=en-us |
| GTIN | 03389110083538 |
| Item Type | Contactor coil |
