Telemecanique

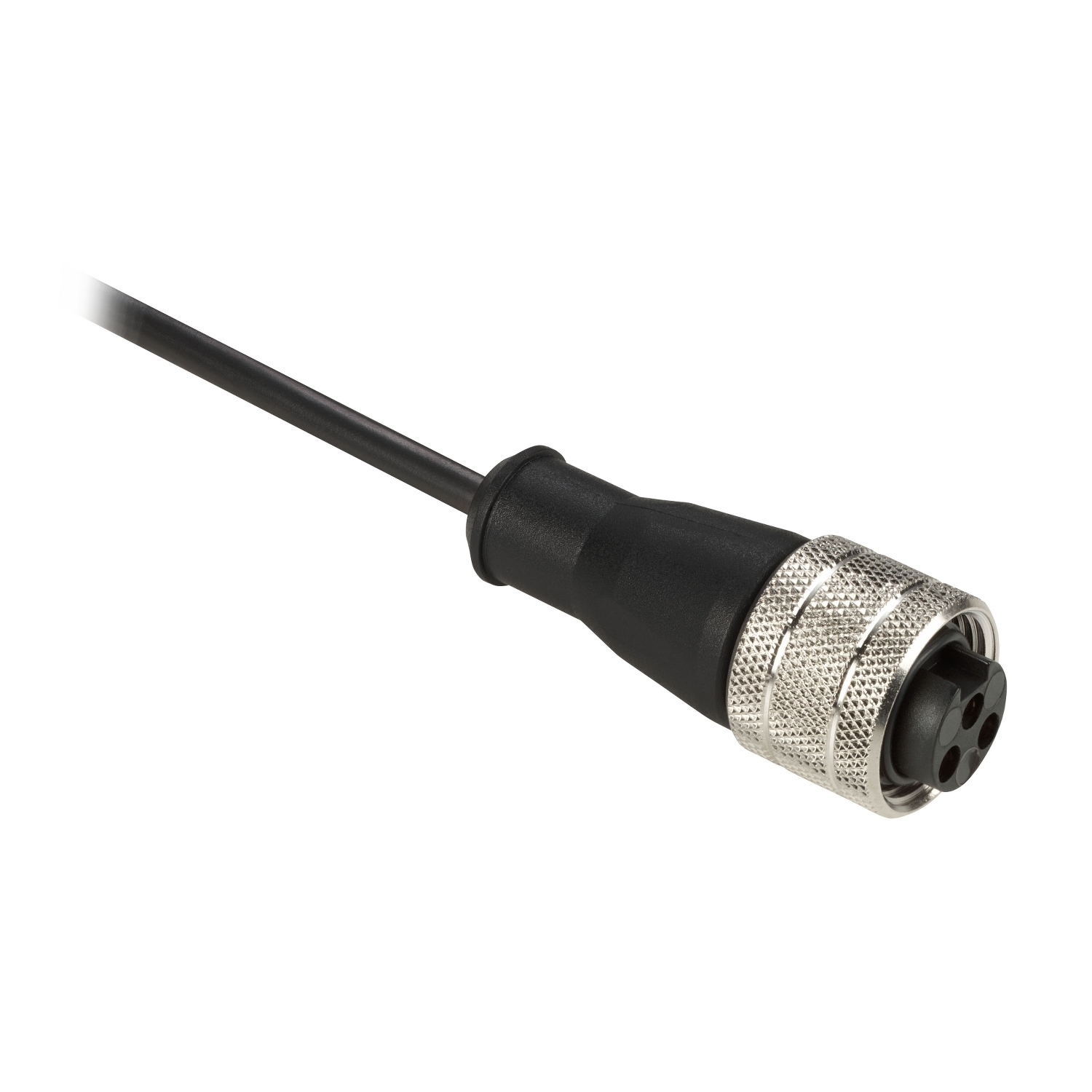

XZCP1865L5 OsiSense Straight Pre-Wired Connector, 1/2-20 UNF Female Connector, 5 m L Cable

MFR:
Telemecanique Sensors
MFR #:
XZCP1865L5
UPC:
785901333869
Item #:
683762

This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 3 wires and has a 3 pins 1/2" 20 UNF straight female connector with a metal collar. It is designed in polyurethane for severe industrial environments. Its rated operational voltage is 250V/AC or 300V/DC and its nominal current is 4A. Its contact resistance is 5000Ohm and its minimum insulating resistance is 1G. It is dustproof and can be temporarily immersed in water (IP67). This cable has a length of 5m and a diameter of 5.2mm. It is made up of 3 wires, each section of which is 0.34 mm. Its color is black and its weight is 0.18kg. It is intended for industrial environments thanks to its excellent resistance to extreme temperatures (-35C to +90C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 3 pins 1/2" 20 UNF male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification.

Manuals & Documentation
Catalog Number XZCP1865L5
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Amperage Rating 4
Application GENERAL PURPOSE
Connection Straight female connector 1/2"20 UNF, 3 pins
Enclosure IP67
Mounting Screw
Special Features IP67
Standard IP67,CULUS
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=877938&lang=en-us
UPC 785901333869
GTIN 03389110763478
Item Type Cabling accessory;General purpose;Pre-wired connectors
Size 5M
Operating Temperature -35-90 A Degrees C STATIC--5-90 A Degrees C FLEXING
Voltage Rating 250 V AC-300 V DC
