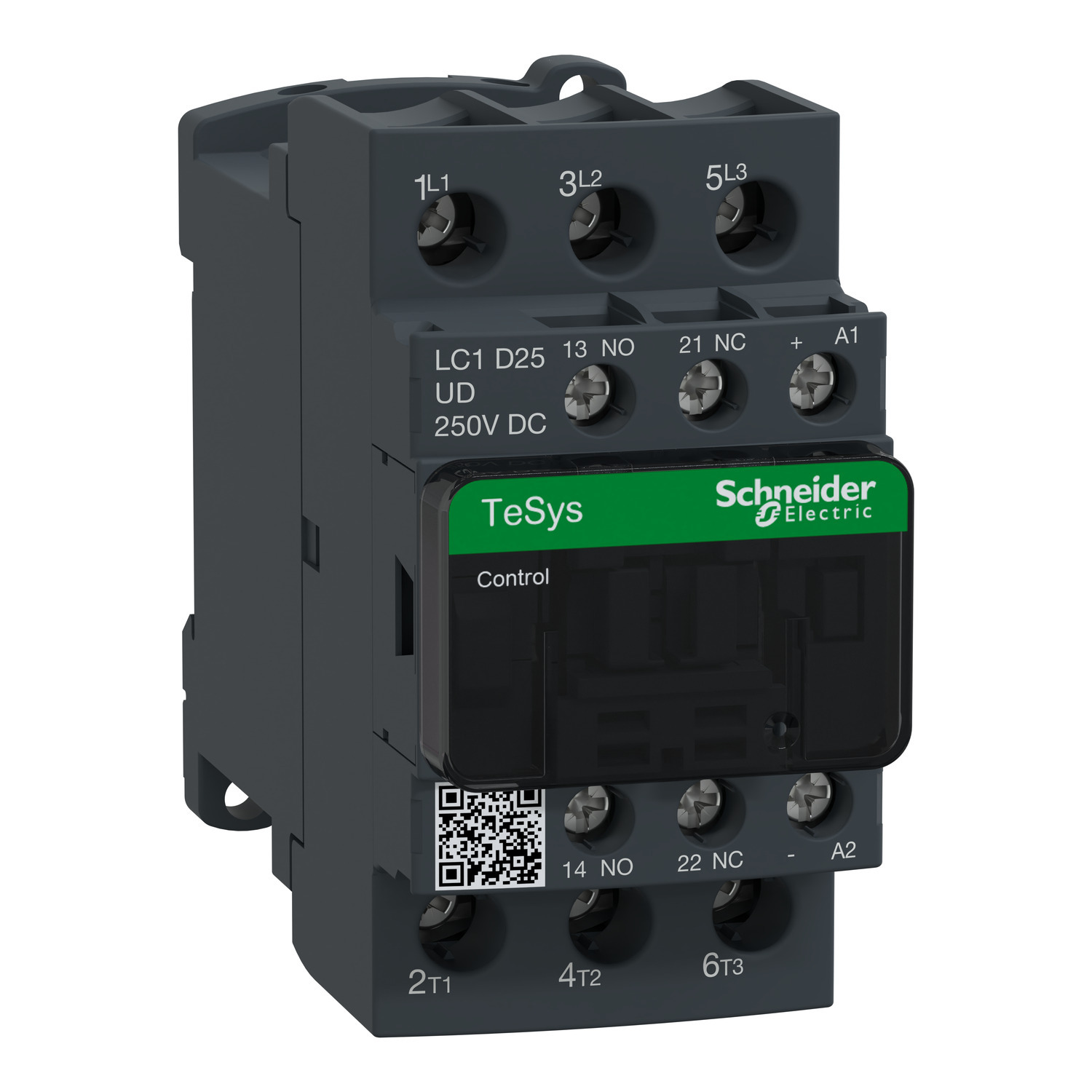

IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 250VDC coil, open style

MFR:
Schneider Electric
MFR #:
LC1D25UD
Item #:
683292

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). They can be used to create motor starters for almost any type of application. It provides a 250V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC and 20HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 60A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 250 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.82 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Manuals & Documentation
Catalog Number LC1D25UD
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application Resistive load;motor control
Coil Voltage 250 V DC
Connection Control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: solid without cable
Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Mounting Rail Plate
Operating Cycles 25...400 Hz
Special Features Built-in bidirectional peak limiting diode suppressor
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1471702&lang=en-us
GTIN 03389110357059
Item Type Contactor
