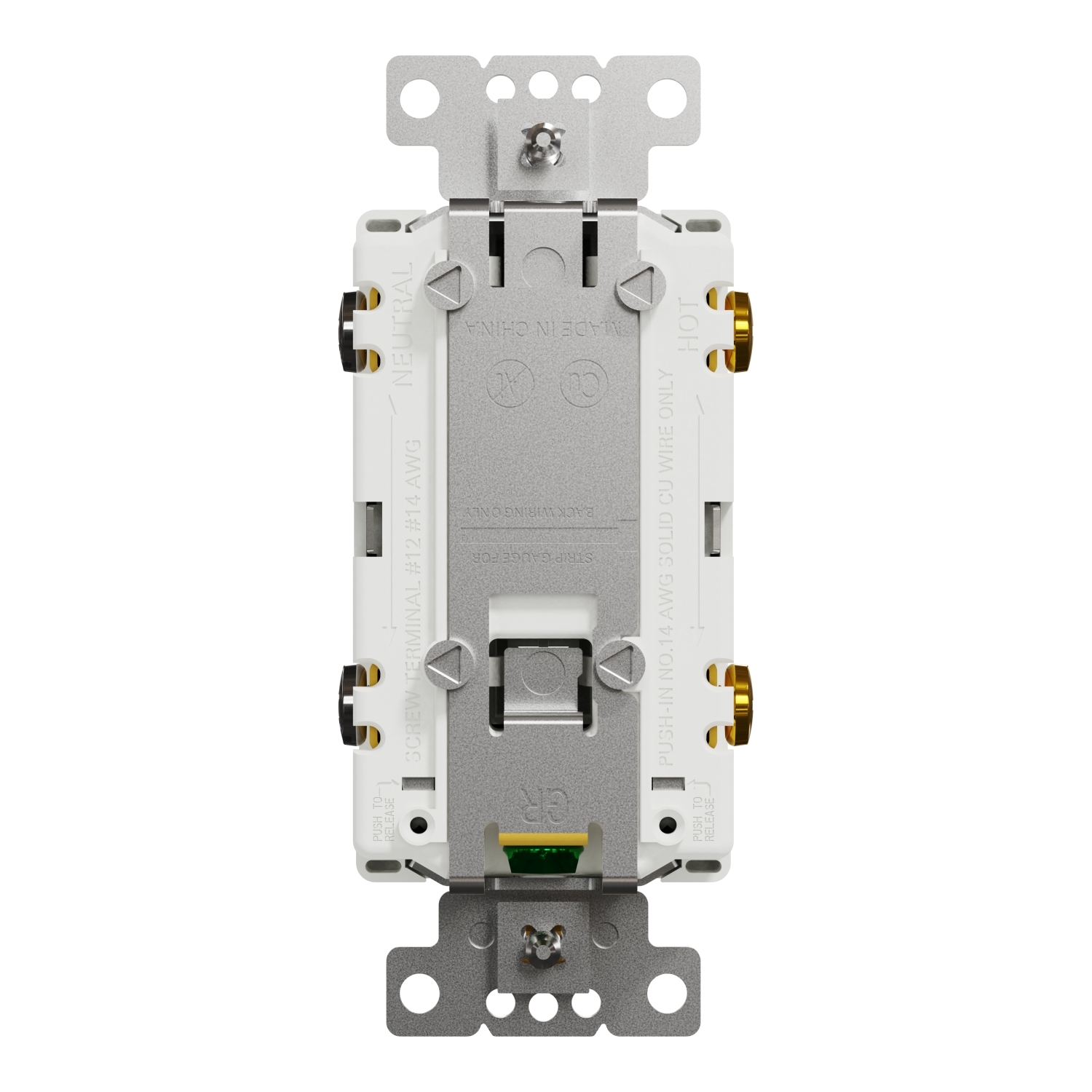

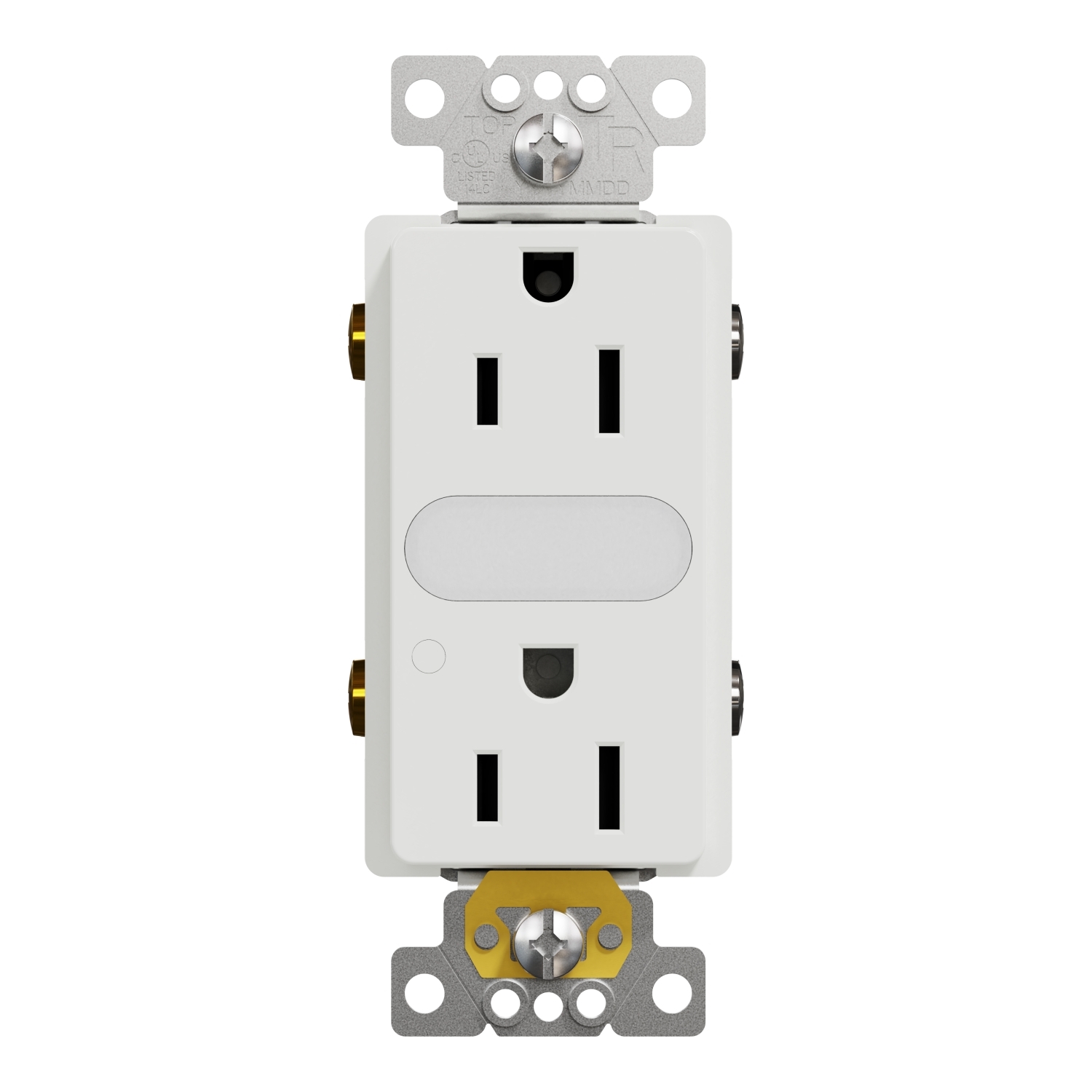

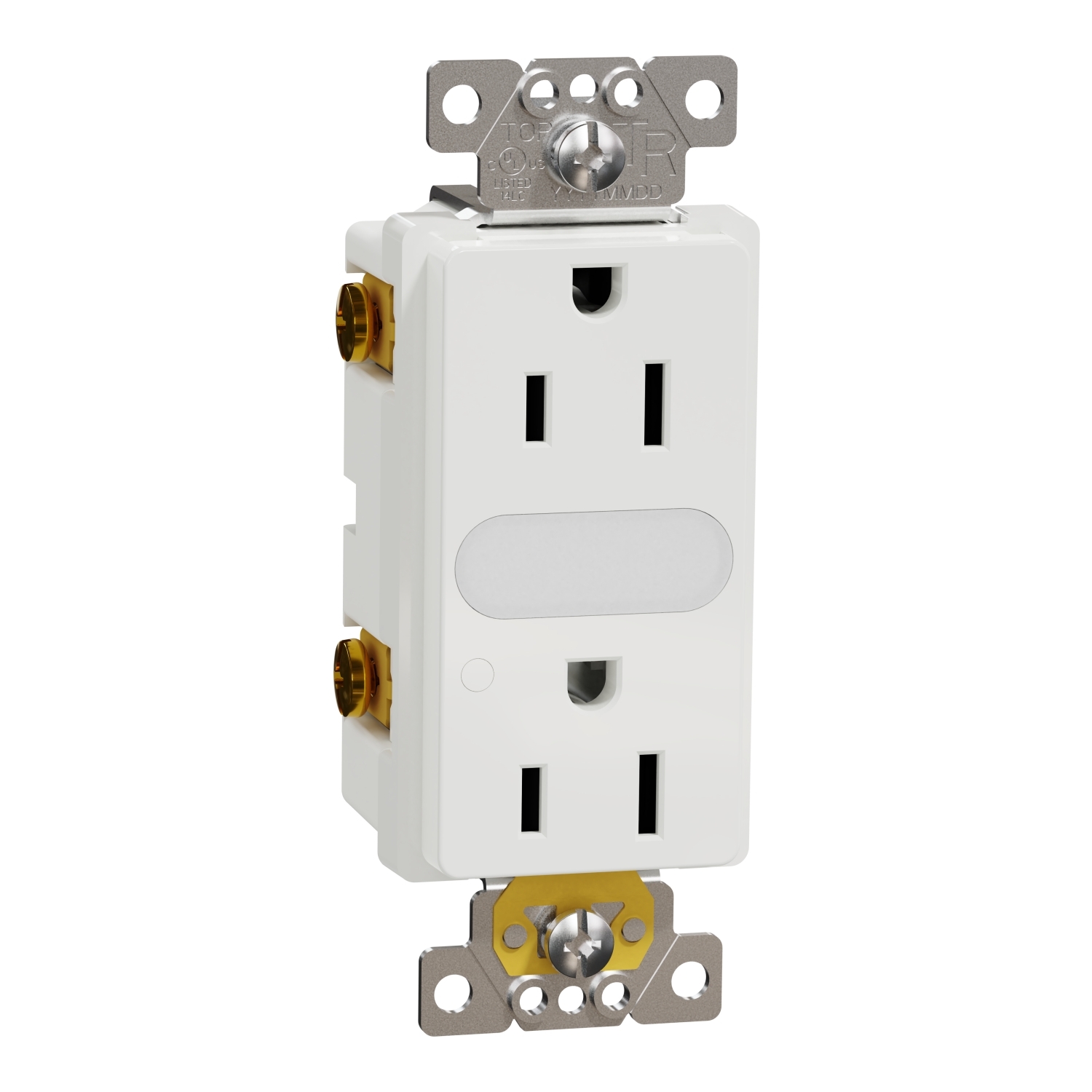

The Square D X Series 125V Tamper Resistant Electrical Outlet with LED Night Light with side wire clamps features a warm, sensor-enabled, 2700K LED light to help you navigate dark hallways, corners or rooms. This outlet socket has a 15A current rating. The rated operational voltage of this device is 120 VAC. Each outlet socket unit has two outlet sockets and is used to supply power. Wiring and installation is fast and easy with side wire pressure plates and ground wire pressure plate. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Elevate safety with discrete, tamper resistant shutters that help keep inappropriate objects out of the socket. This socket outlet has a white frame. The self-grounding feature is a brass ground contact which provides ground retention to metal boxes that eliminates the need to use a ground screw. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. By satisfying the UL 498 standard, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices. The dimensions are (W) 42mm (1.65in) x (H) 103mm (4.06in) x (D) 35mm (1.38in). This device is compliant with UL 498 standard and cULus certification.

Manuals & Documentation
Catalog Number SQR57101WH
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:2 years
Country of Origin China
Made in USA No
Color White
Light Source LED
Material Plastic: strap;metal: fixing frame
Mounting Screw
Number of Gangs 1 gang
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=508635106&lang=en-us
UPC 785901549178
GTIN 00785901549178
Item Type Socket-outlet
