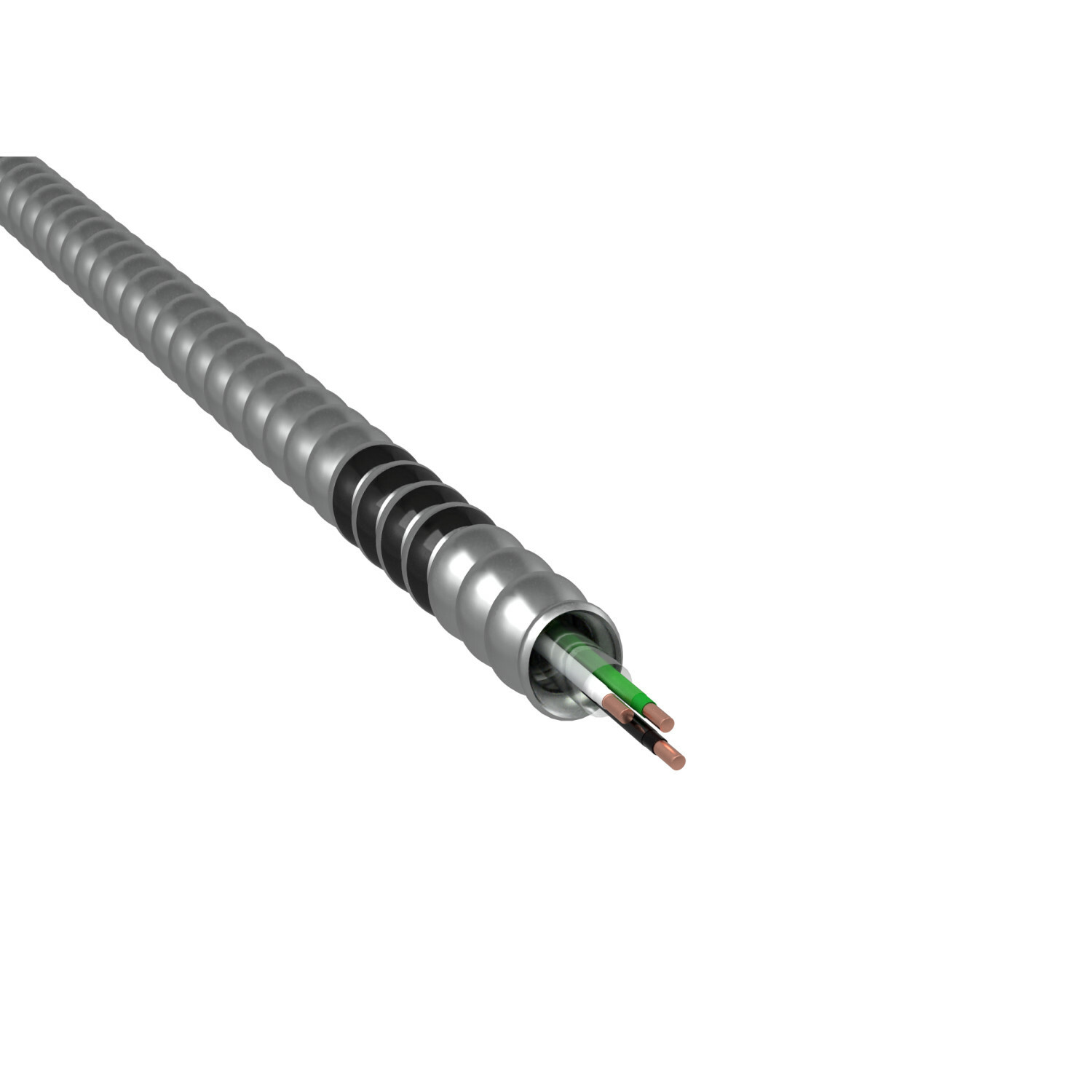

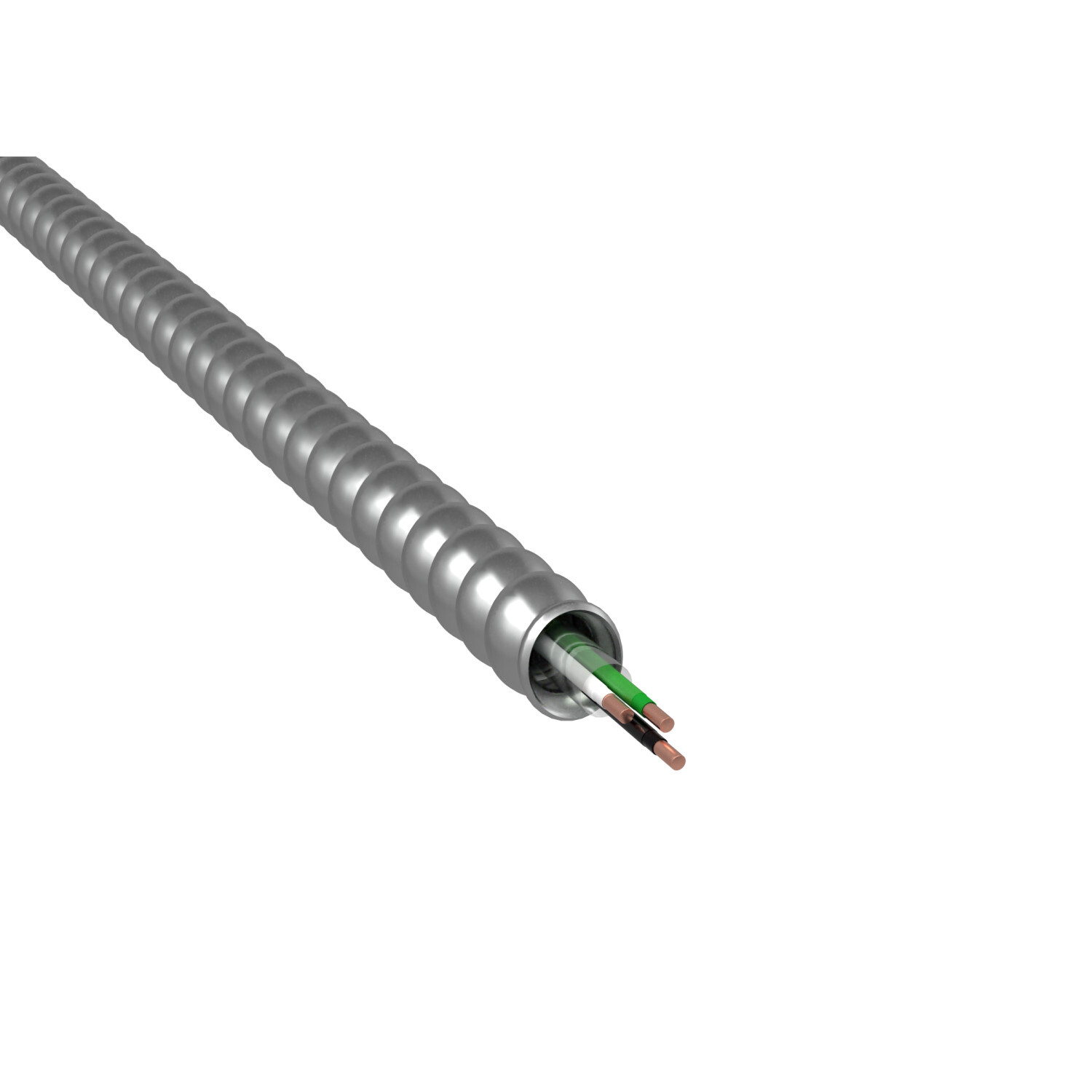

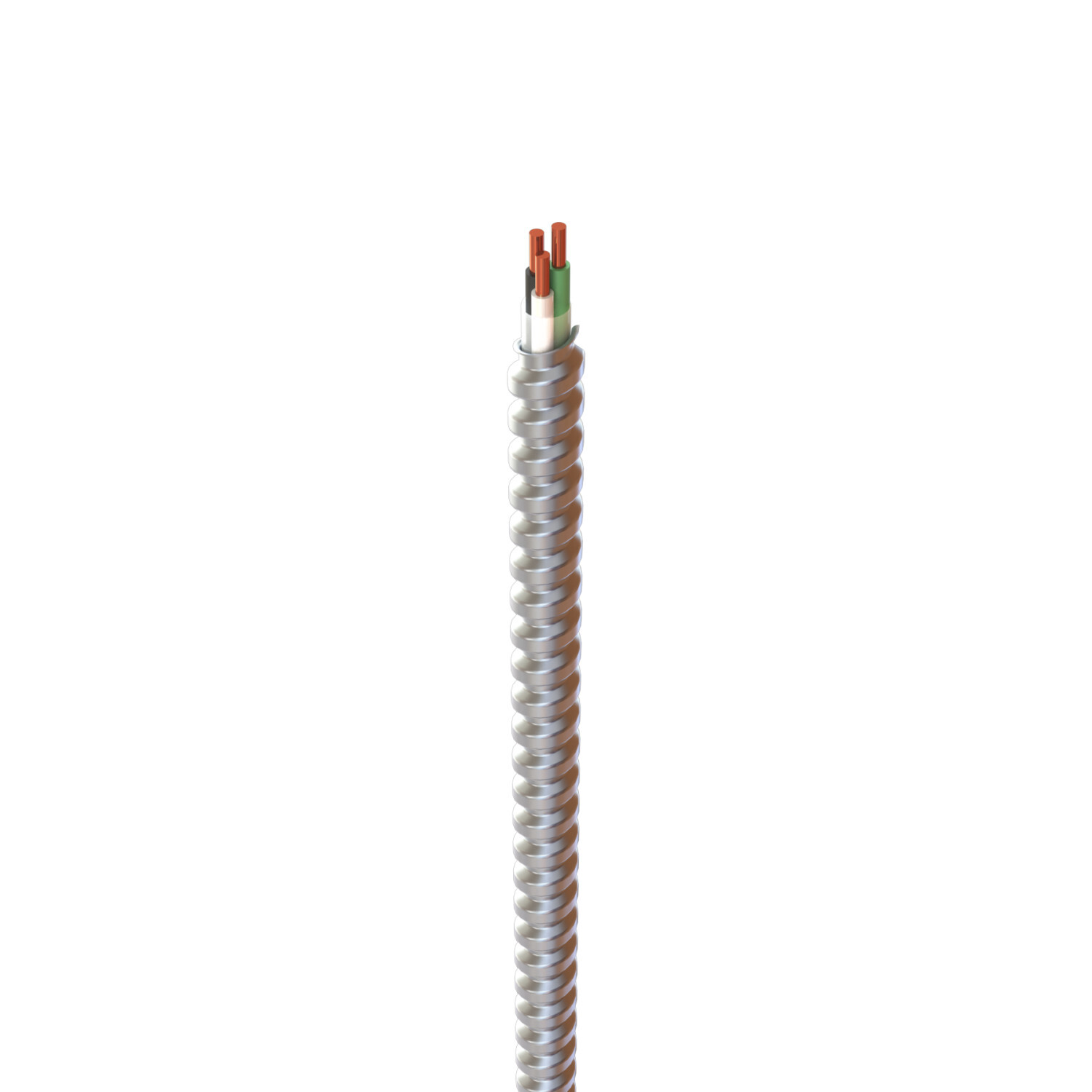

2107-60-05 MC Lite Traditional Type MC Armored Cable, Reel Packaging, 600 V, (2) 10 AWG Solid Copper Conductor, 1000 ft L
- MFR:
- ATKORE - KAF-TECH
- MFR #:
- 2107-60-05
- UPC:
- 077680142221
- Item #:
- 678459
2107-60-05 MC Lite Traditional Type MC Armored Cable, Reel Packaging, 600 V, (2) 10 AWG Solid Copper Conductor, 1000 ft L
- MFR #:
- 2107-60-05
- UPC:
- 077680142221
- Item #:
- 678459

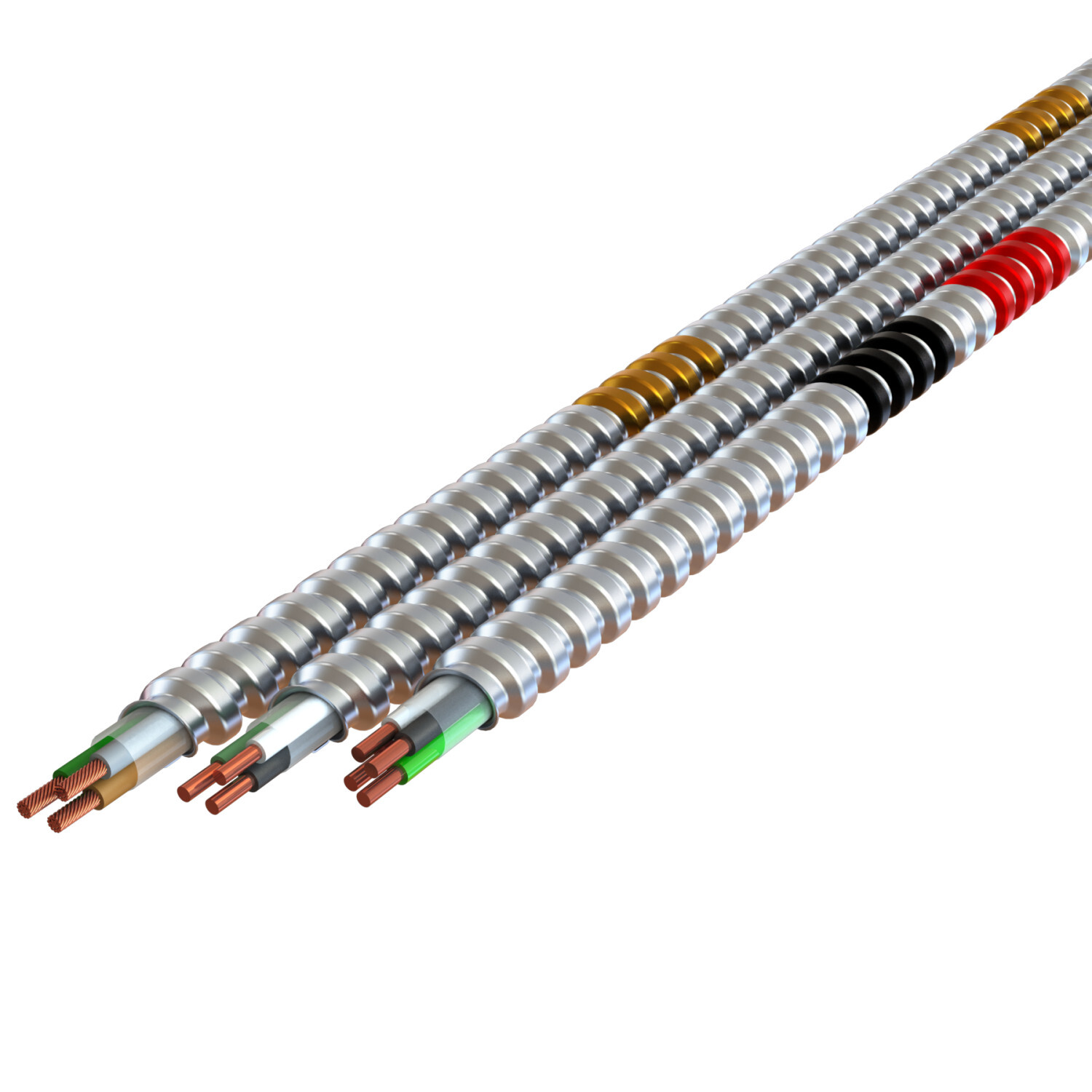

Atkore's aluminum interlocked armor Type MC cables are named MC Lite and offer a lightweight alternative to steel MC cables. MC Lite cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.
Manuals & Documentation
| Catalog Number | 2107-60-05 |
| Manufacturer | ATKORE - KAF-TECH |
| Brand | Kaf-Tech |
| Country of Origin | United States |
| Made in USA | Yes |
| Armour | Interlocked Aluminum Strip |
| Color | Plain |
| Conductor Material | Copper |
| Conductor Size | 2 AWG |
| Insulation Material | THHN |
| Number of Conductors | 3 |
| Special Features | May be surface mounted, fished and/or embedded in plaster; Cable tray rated, install per NEC; UL Classified 1, 2, and 3 hour through (Fire) penetration product, R-14141; Environmental air-handling space installation per NEC 300.22; Made in USA of US and/or imported materials |
| UPC | 077680142221 |
| GTIN | 00077680142221 |
| Item Type | Traditional Type MC Cable With Ground And Neutral |
| Length | 1000 |
| Length UOM | Foot |
| Weight | 0.152 LB/FT |
| Outside Diameter | 0.581 IN |
| Temperature Rating | 90 |
| Voltage Rating | 600V |
