AFC Cable Systems

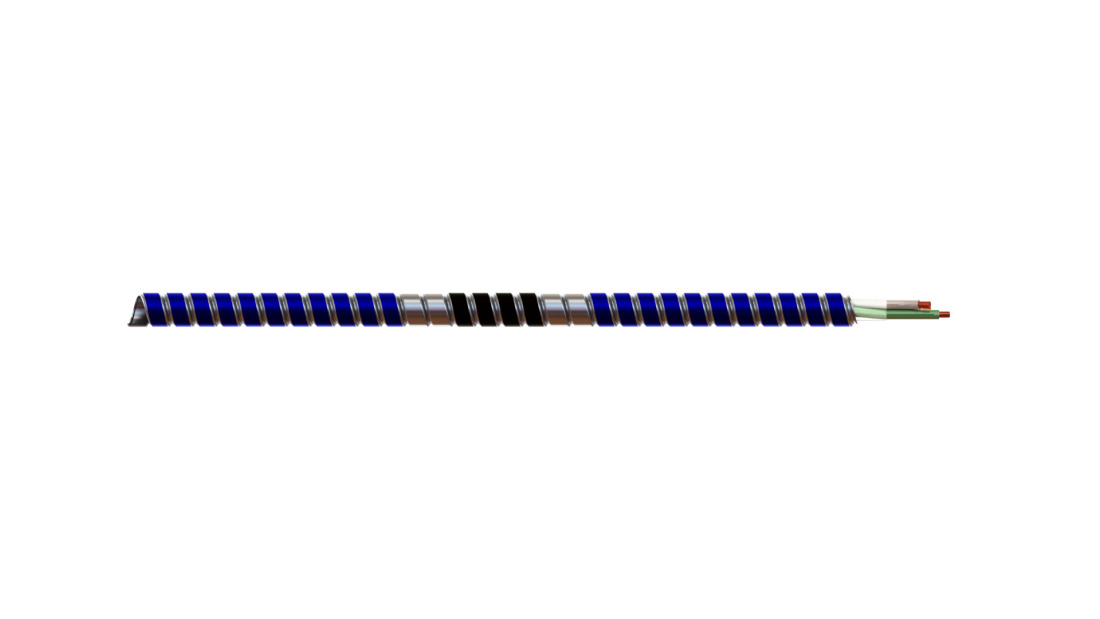

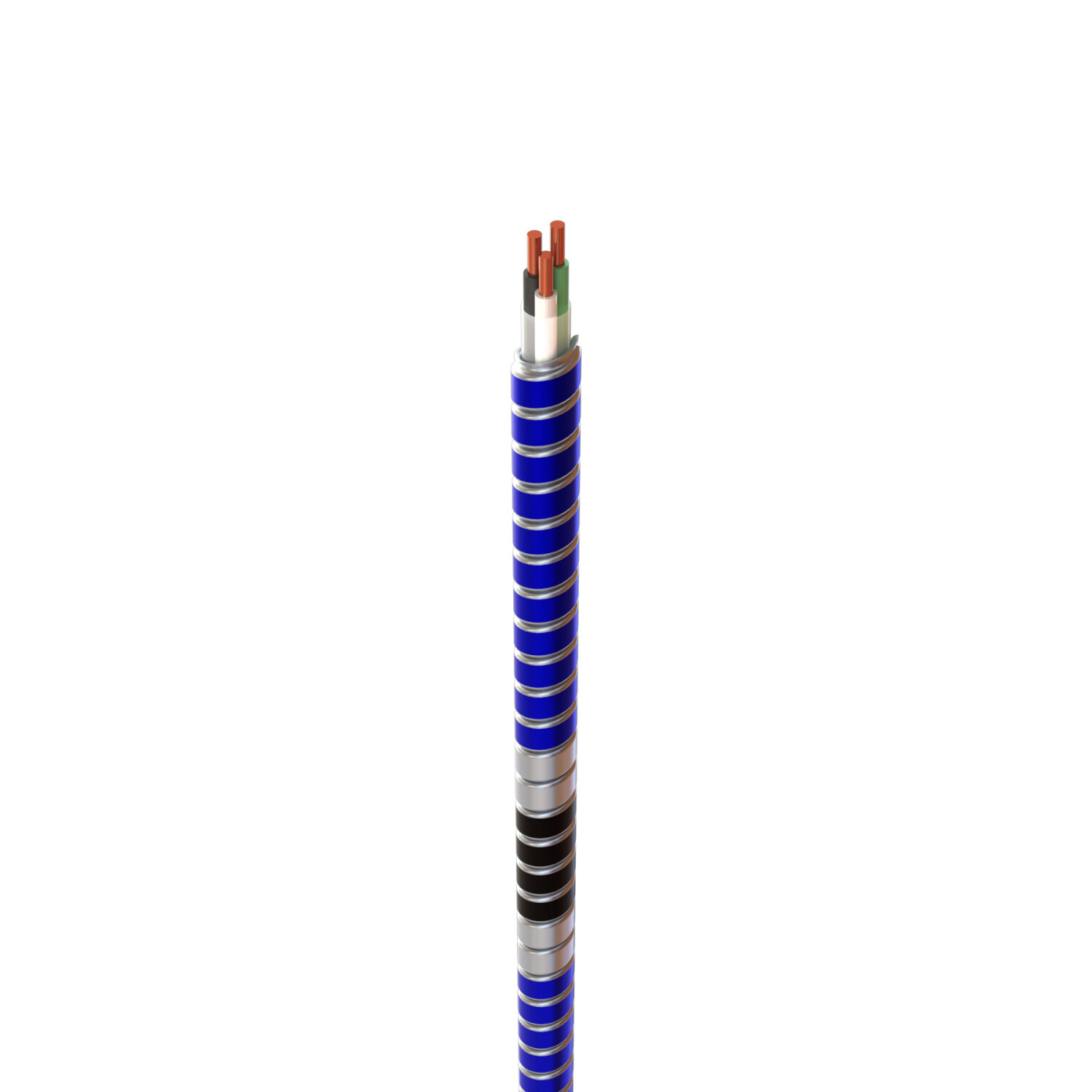

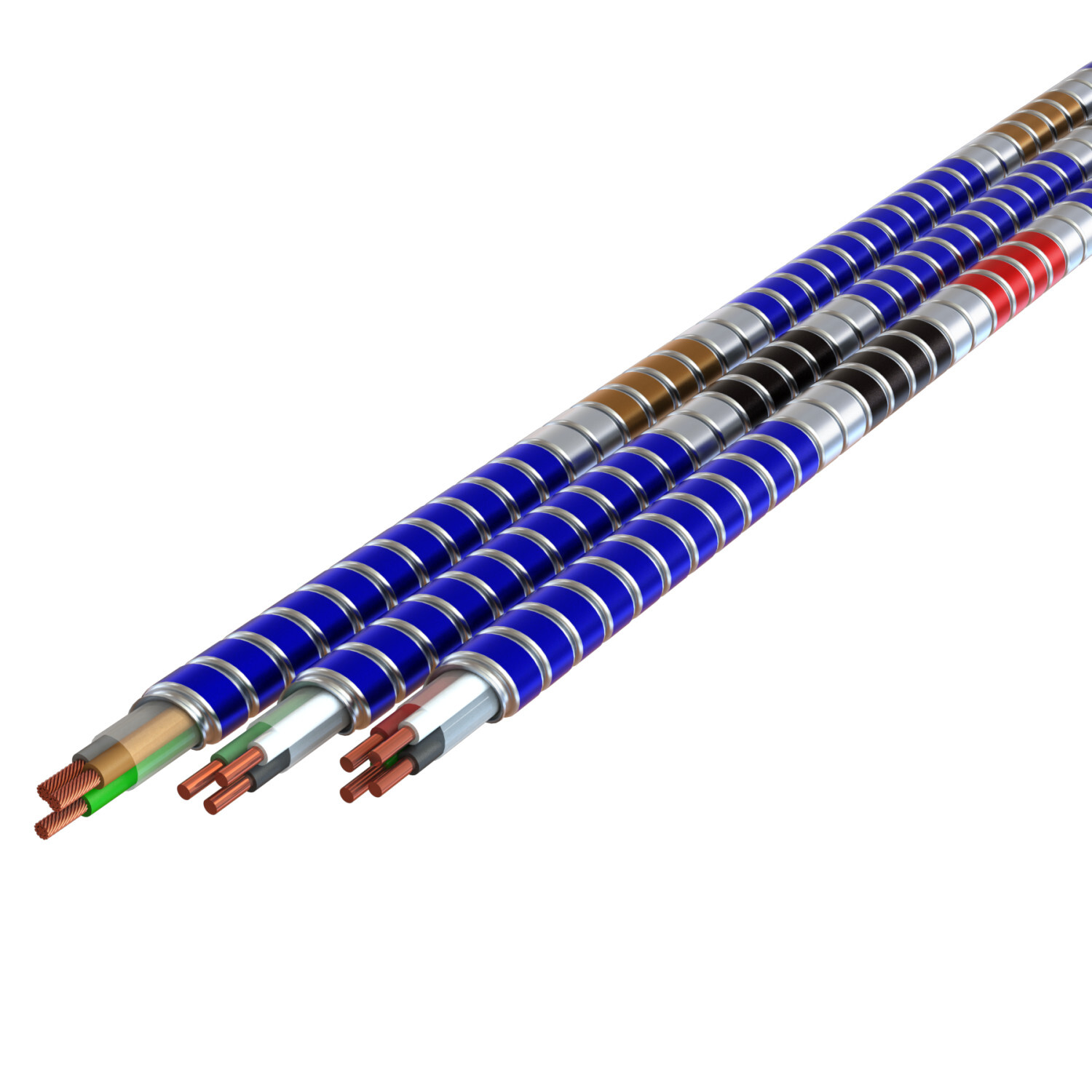

12-2 Solid Red, White, Green - MC Glide Tuff Blue Interlocked Galvanized Steel Armor w/Phase ID - Type MC - 250' Coil

MFR:
ATKORE - AFC CABLE
MFR #:
S004B42T04
UPC:
077680355881
Item #:
676207

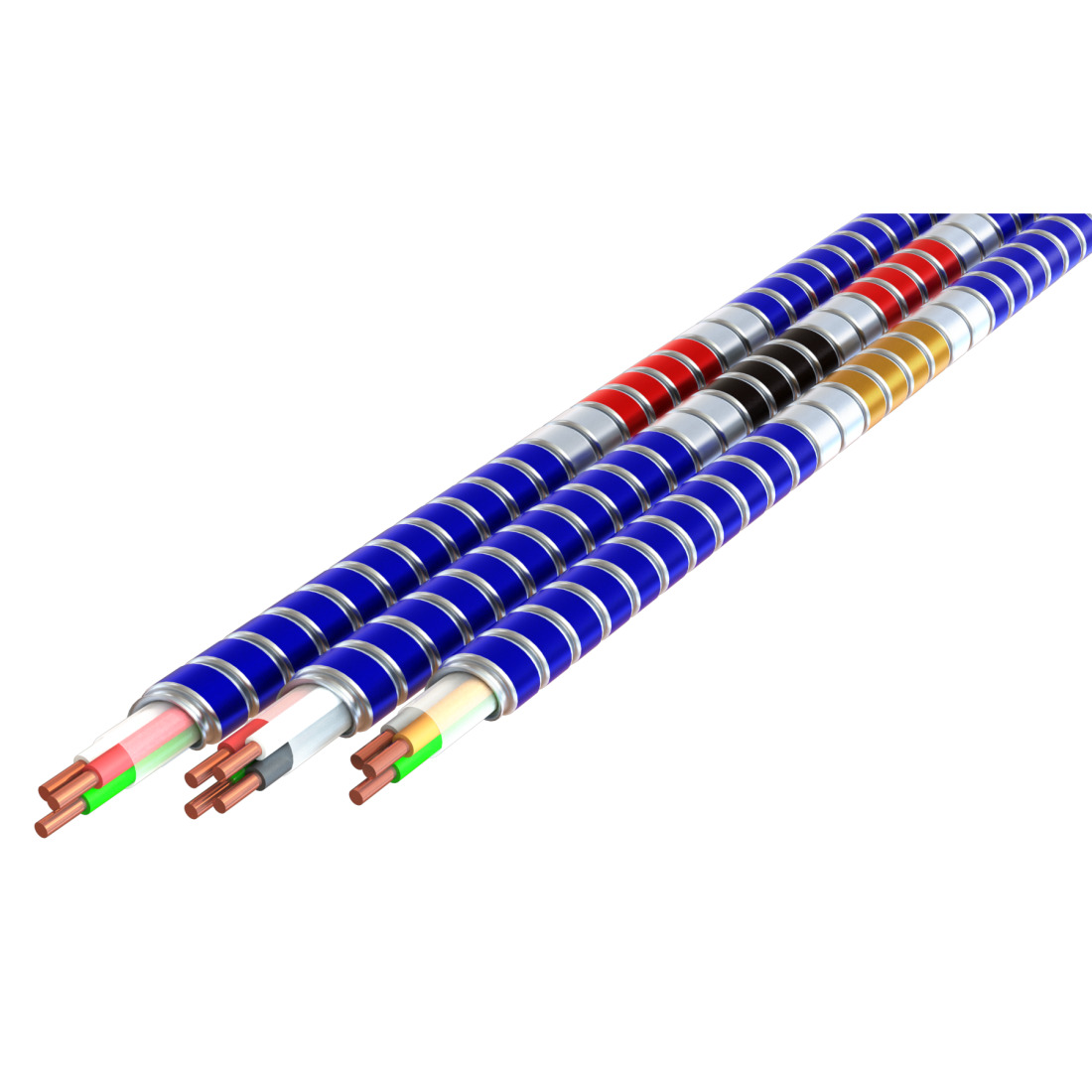

In 2021, Atkore launched MC Glide Tuff, a low-profile interlocked armor design that reduces fatigue on workers during cable installation. Like its predecessor, MC Tuff, MC Glide Tuff has a lightweight, high-strength blue galvanized steel interlocked armor that features ColorSpecID/ColorTrak ID for easy identification. These cables have no conductor count limit, offer various conductor bundle combinations, and meet UL Standard 1569 and NEC 330. They consist of THHN/THWN rated conductors twisted and wrapped with polypropylene assembly tape, and come with an insulated green equipment grounding conductor.

Manuals & Documentation
Catalog Number S004B42T04
Manufacturer ATKORE - AFC CABLE
Brand AFC Cable Systems
Sub Brand MC Glide Tuff
Country of Origin United States
Made in USA Yes
Armour Interlocked Galvanized Steel Strip
Bend Radius 6.825
Color Blue
Conductor Material Copper
Conductor Size 12 AWG
Finish Blue Paint
Material Galvanized Steel
Number of Conductors 3
Standard UL 83, 1479, 1569, 1581, 2556, File Reference E80042.NEC® 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645.Federal Specification A-A–59544 (formerly J-C–30B),Meets OSHA and HUD Requirements
UPC 077680355881
GTIN 00077680355881
Item Type Metal Clad Aluminum Armored Cable
Length 250
Length UOM Foot
Weight 0.152 LB/FT
Inside Diameter 0.31 IN
Outside Diameter 0.455 IN
Temperature Rating 194
Trade Size 12-2
Voltage Rating 600V
