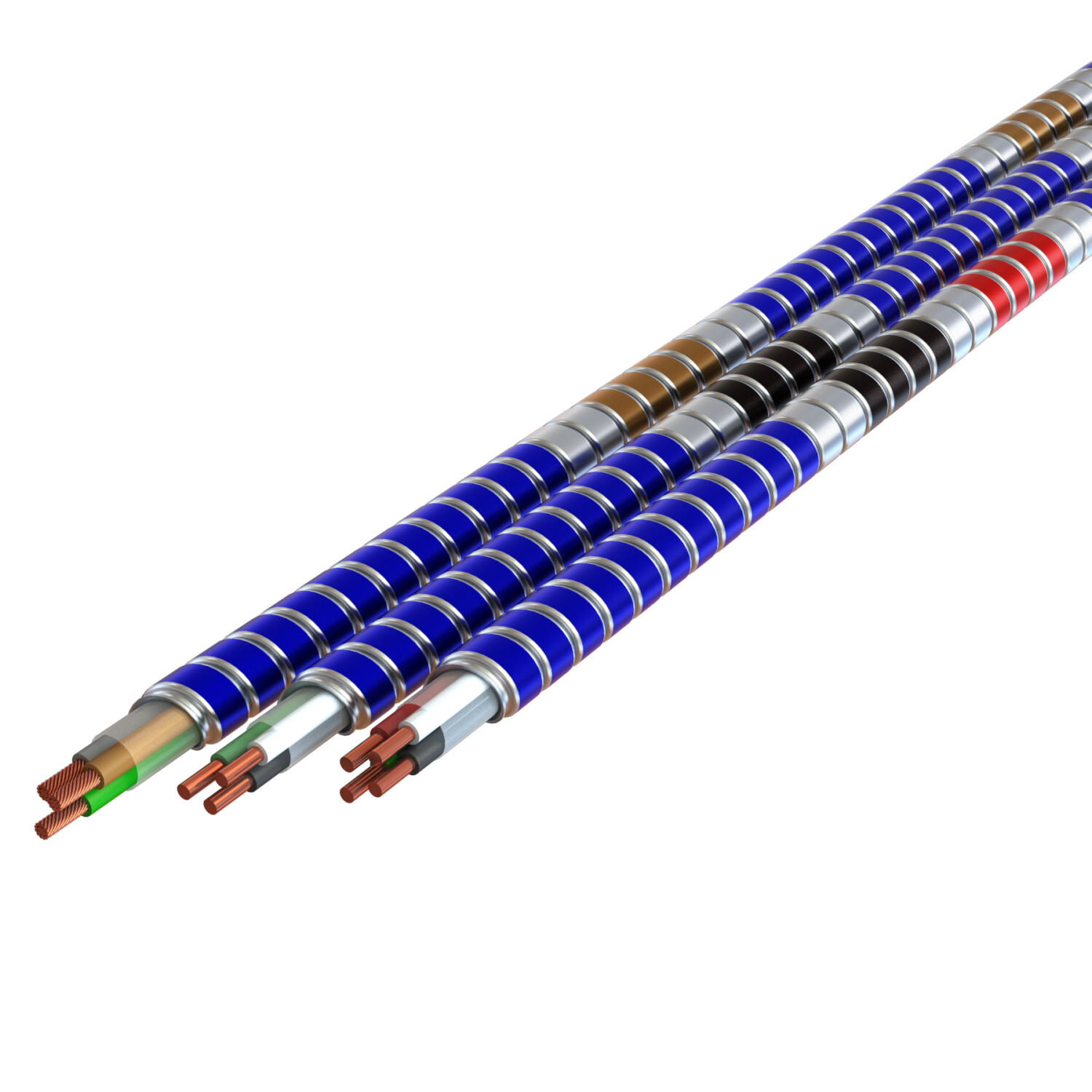

S005B42T00 MC Glide Tuff Steel Armored Cable, Coil Packaging, 600 V, Solid Conductor, 250 ft L
- MFR:
- ATKORE - AFC CABLE
- MFR #:
- S005B42T00
- UPC:
- 077680356055
- Item #:
- 675663
S005B42T00 MC Glide Tuff Steel Armored Cable, Coil Packaging, 600 V, Solid Conductor, 250 ft L
- MFR #:
- S005B42T00
- UPC:
- 077680356055
- Item #:
- 675663
In 2021, Atkore launched MC Glide Tuff, a low-profile interlocked armor design that reduces fatigue on workers during cable installation. Like its predecessor, MC Tuff, MC Glide Tuff has a lightweight, high-strength blue galvanized steel interlocked armor that features ColorSpecID/ColorTrak ID for easy identification. These cables have no conductor count limit, offer various conductor bundle combinations, and meet UL Standard 1569 and NEC 330. They consist of THHN/THWN rated conductors twisted and wrapped with polypropylene assembly tape, and come with an insulated green equipment grounding conductor.
Manuals & Documentation
| Catalog Number | S005B42T00 |
| Manufacturer | ATKORE - AFC CABLE |
| Brand | AFC Cable Systems |
| Sub Brand | MC Glide Tuff |
| Country of Origin | United States |
| Made in USA | Yes |
| Armour | Interlocked Galvanized Steel Strip |
| Bend Radius | 7.05 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Size | 12 AWG |
| Finish | Blue Paint |
| Material | Galvanized Steel |
| Number of Conductors | 4 |
| Standard | UL 83, 1479, 1569, 1581, 2556, File Reference E80042.NEC® 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645.Federal Specification A-A–59544 (formerly J-C–30B),Meets OSHA and HUD Requirements |
| UPC | 077680356055 |
| GTIN | 00077680356055 |
| Item Type | Metal Clad Aluminum Armored Cable |
| Length | 250 |
| Length UOM | Foot |
| Weight | 0.177 LB/FT |
| Inside Diameter | 0.325 IN |
| Outside Diameter | 0.47 IN |
| Temperature Rating | 194 |
| Trade Size | 12-3 |
| Voltage Rating | 600V |
