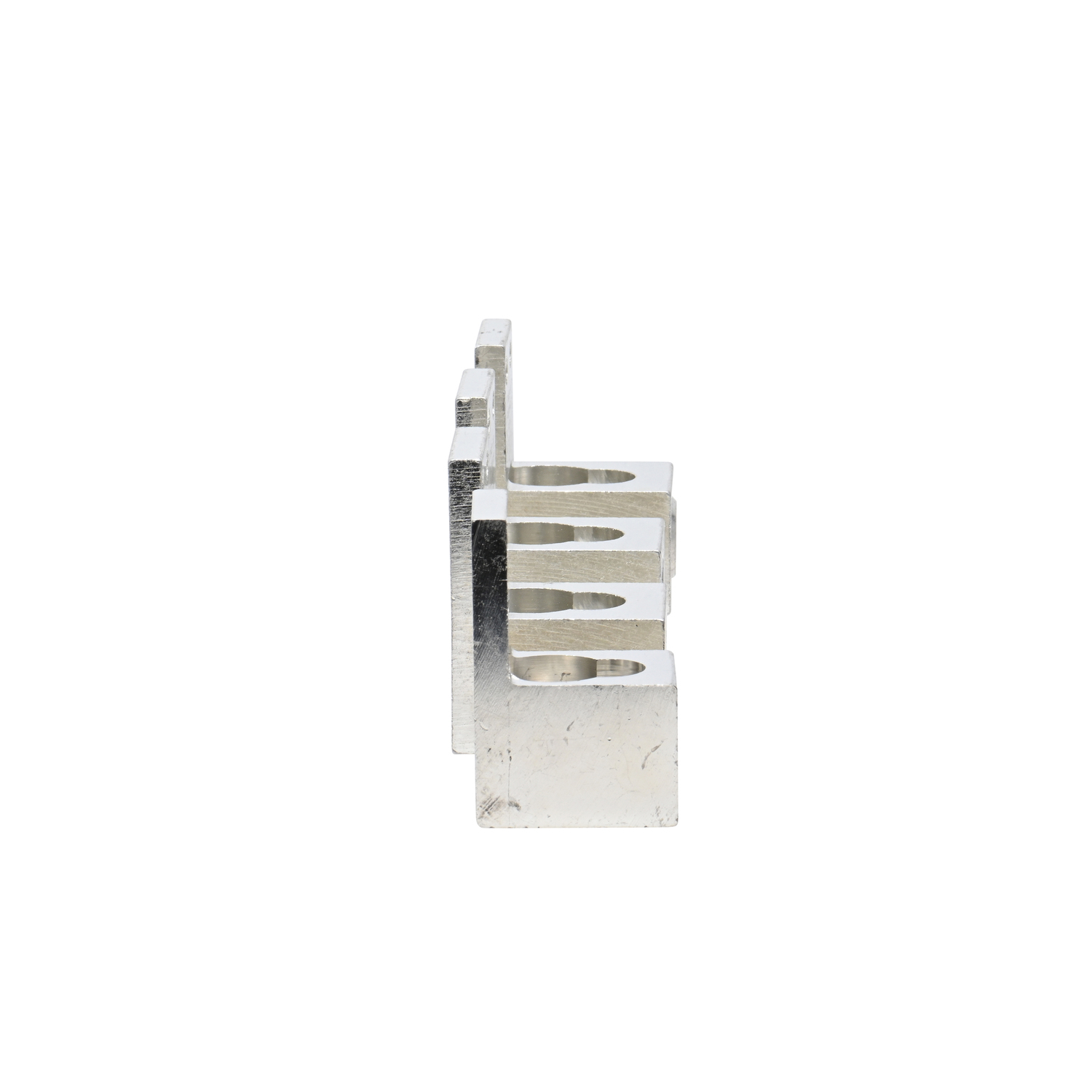

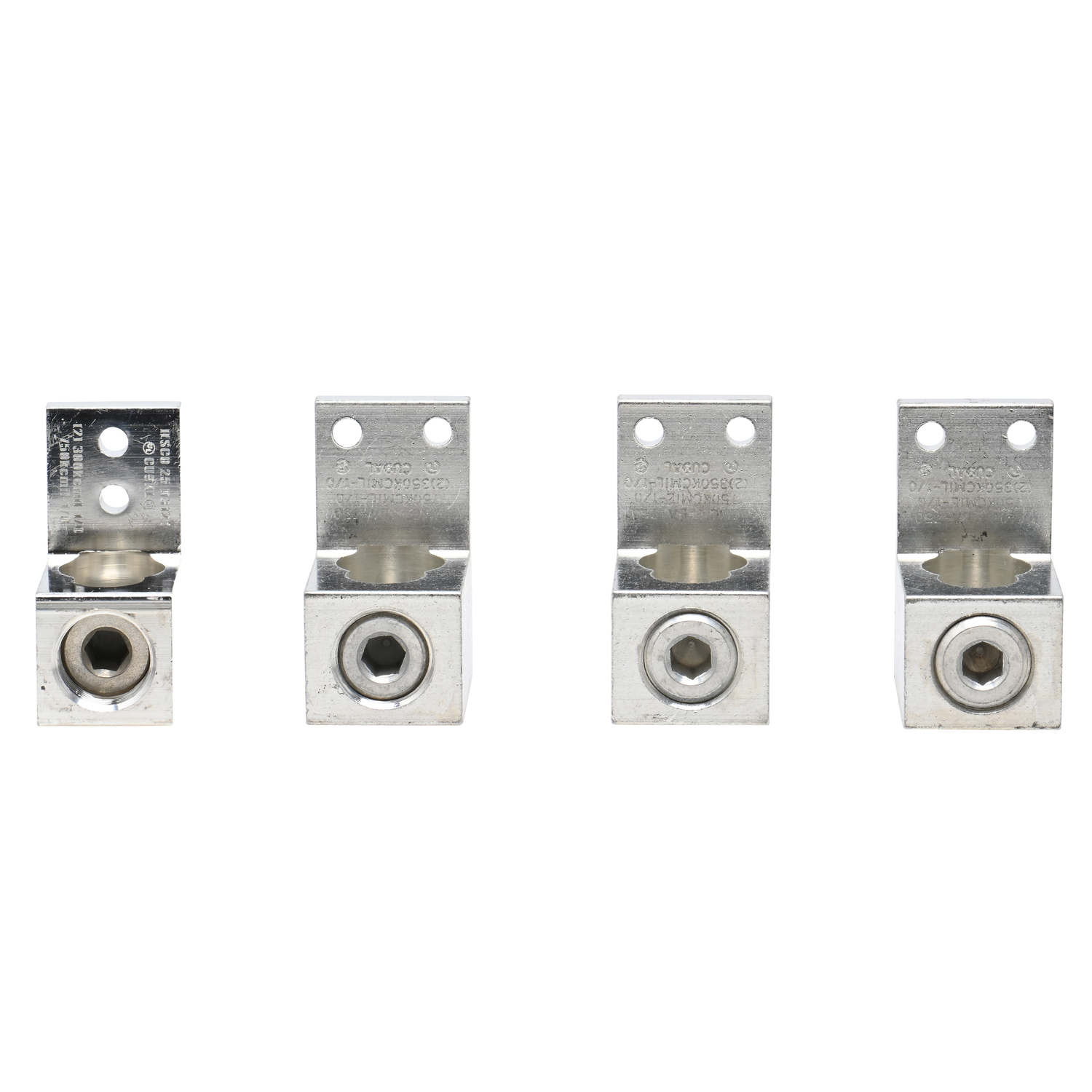

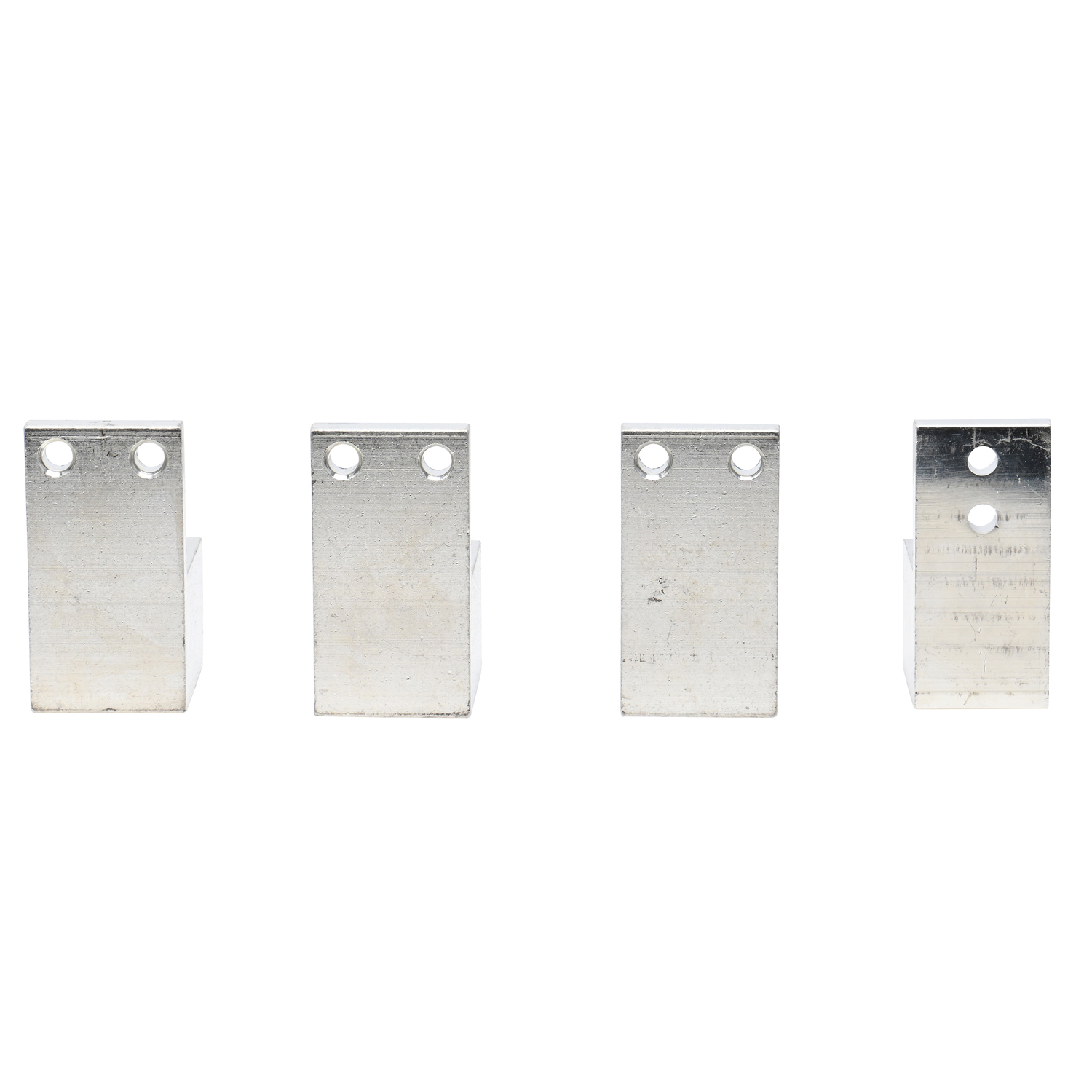

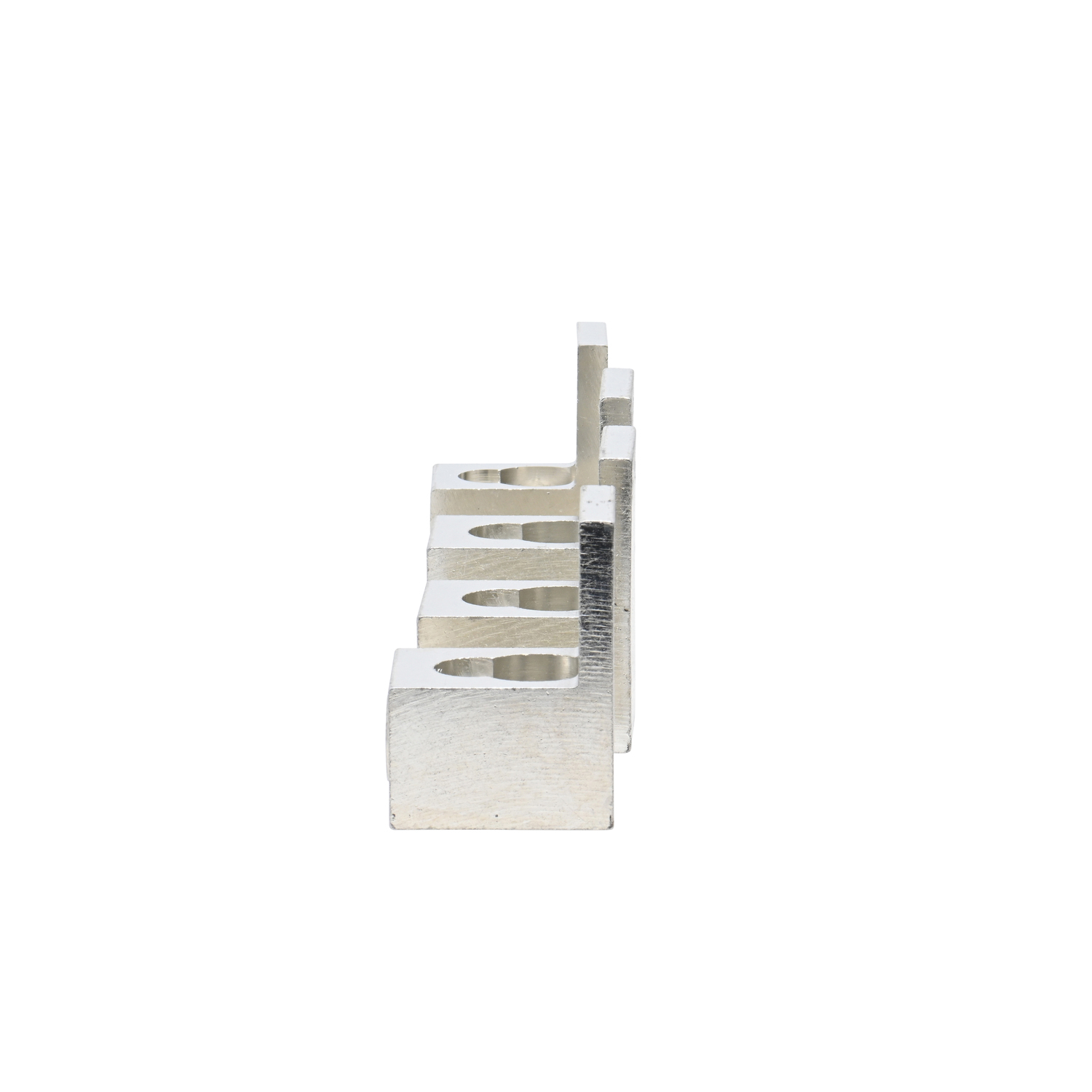

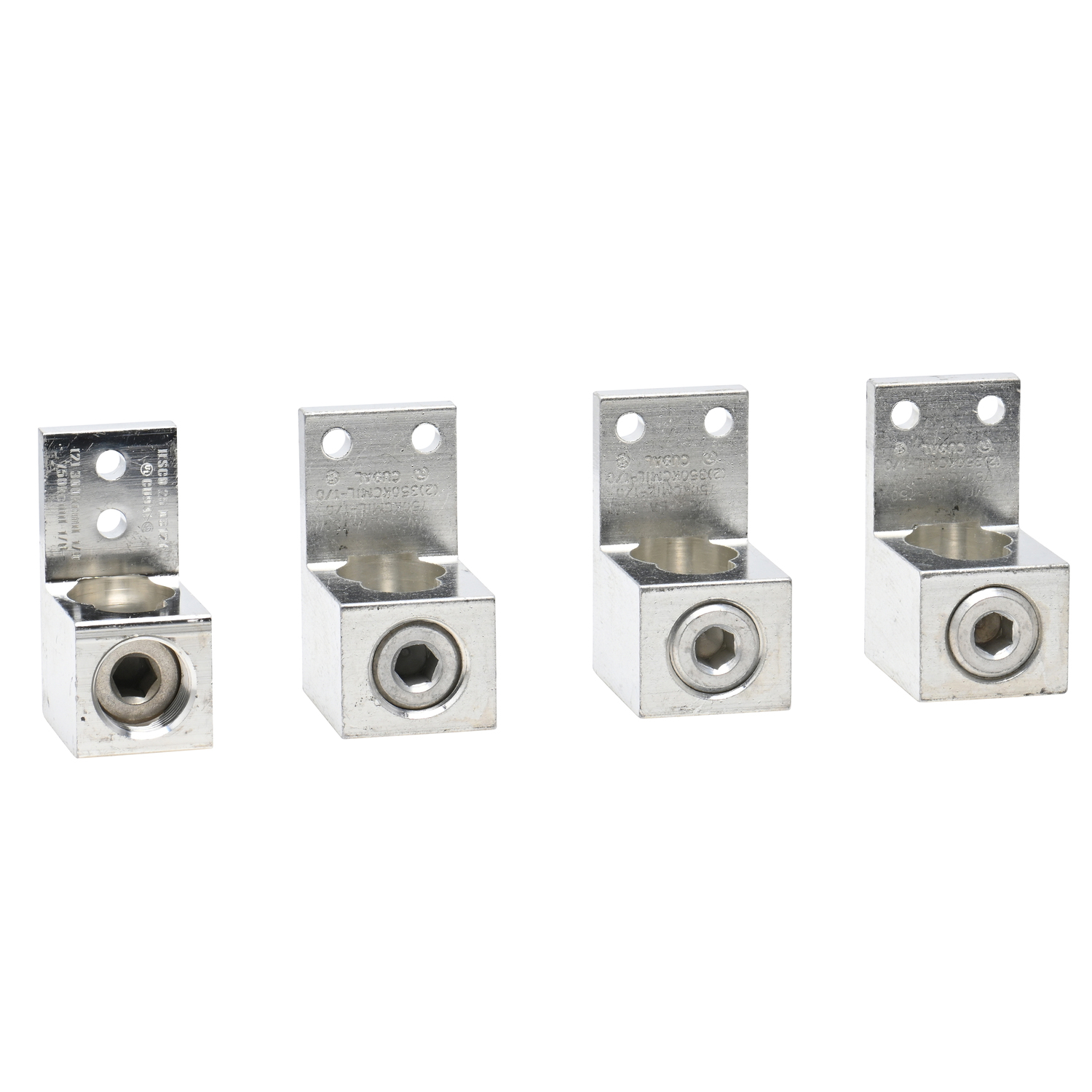

NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ and NF Panelboards have modular construction to accept field installable accessories and conversion kits. This standard mechanical lug kit is for the main lugs of the NF interior. These aluminum mechanical lugs are rated at 400A. Each lug will accept either one 1/0 AWG to 750kcmil copper or aluminum wire or two 1/0 AWG to 350kcmil copper or aluminum wires.

Manuals & Documentation
Catalog Number NFALM4
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Cable Size AWG 1/0...350 kcmil 2 ;AWG 1/0...750 kcmil 1 aluminium/copper
Material Aluminium
Panelboard Type Main Lug Kit
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423254807&lang=en-us
UPC 785901235934
GTIN 00785901235934
Item Type Mechanical lug
