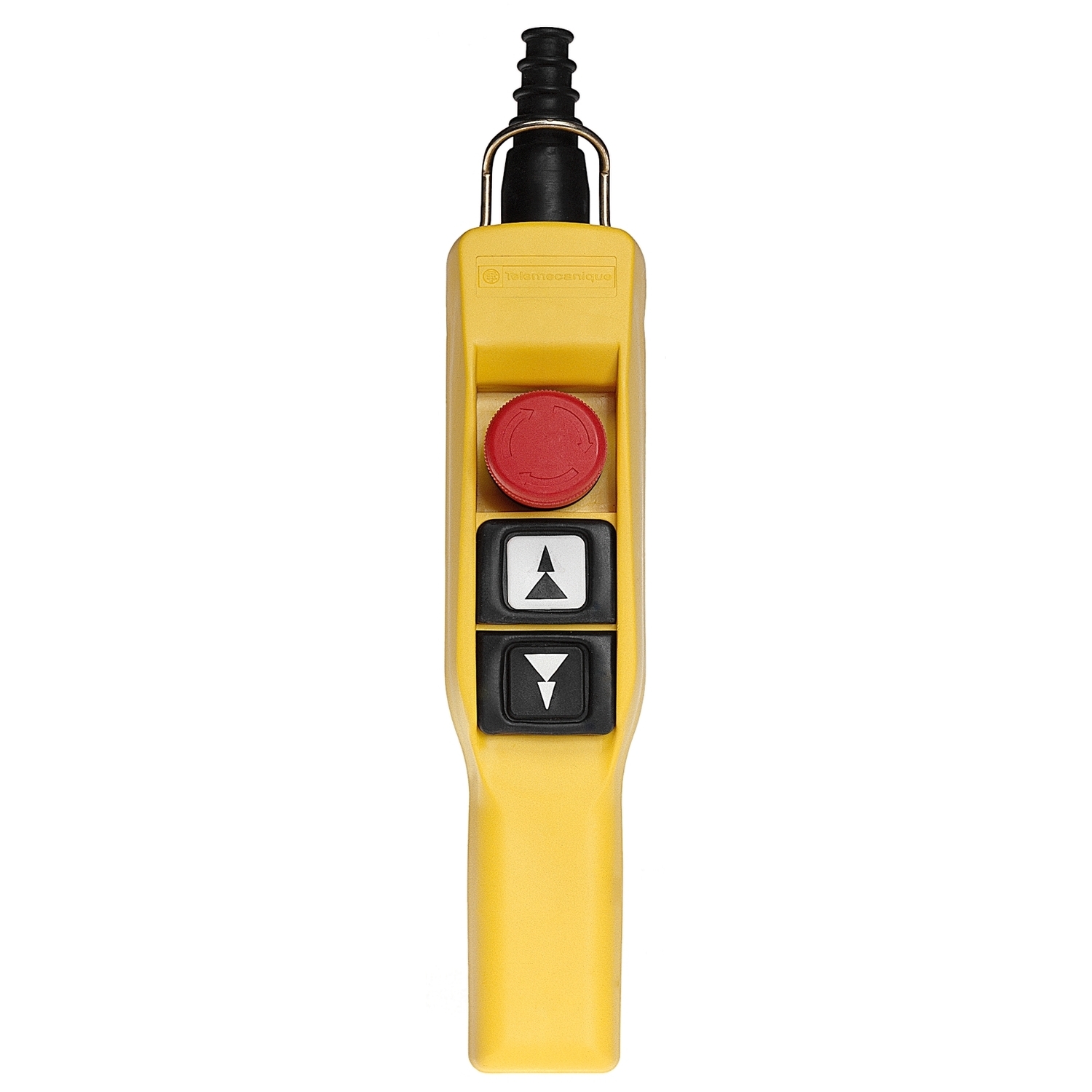

XACA2173 Harmony Medium Duty 1-Emergency Stop Pendant Station, 600 V, 10 A, 3 Operators, NEMA 4/4X NEMA Rating
- MFR:
- Schneider Electric
- MFR #:
- XACA2173
- Item #:
- 673850
XACA2173 Harmony Medium Duty 1-Emergency Stop Pendant Station, 600 V, 10 A, 3 Operators, NEMA 4/4X NEMA Rating
- MFR #:
- XACA2173
- Item #:
- 673850

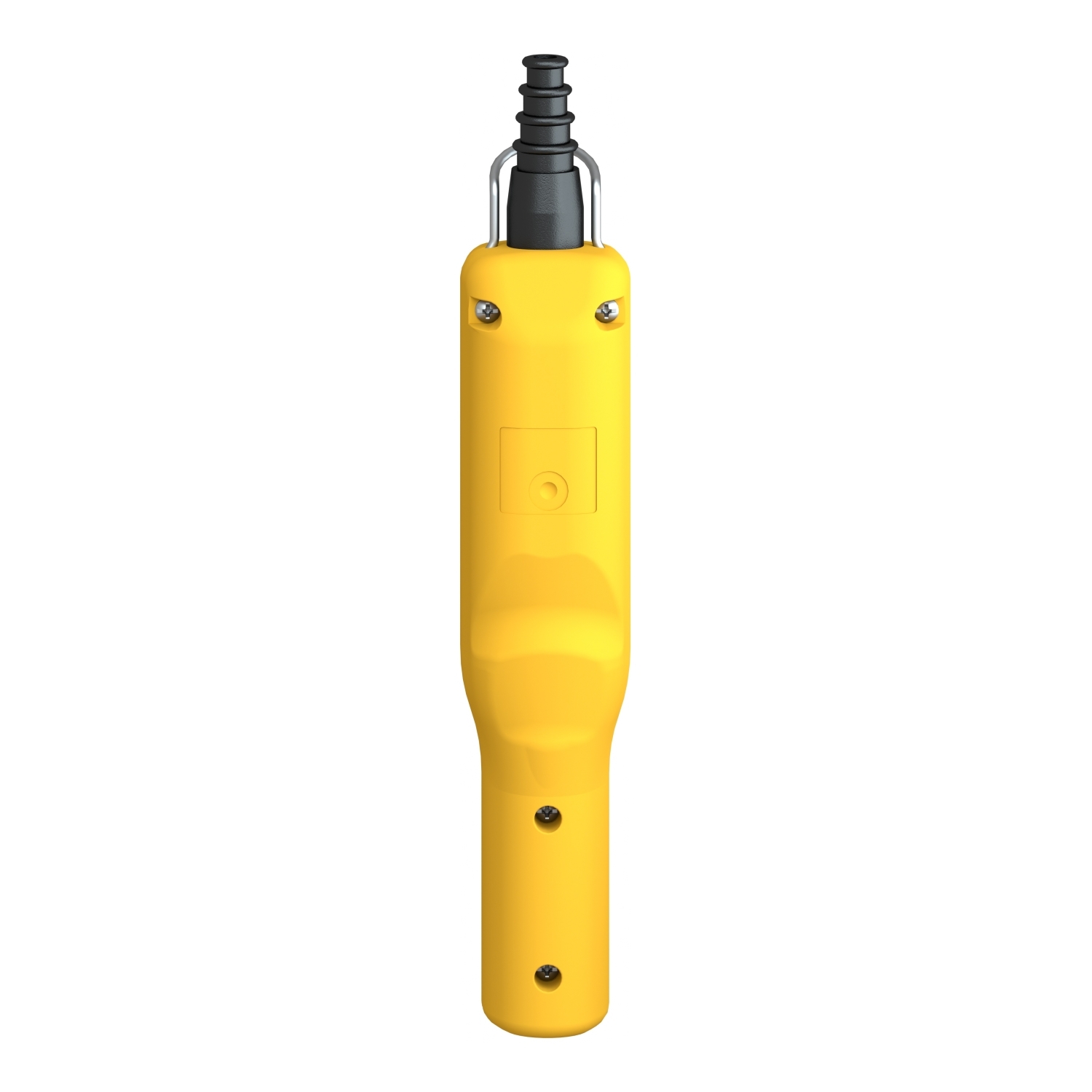

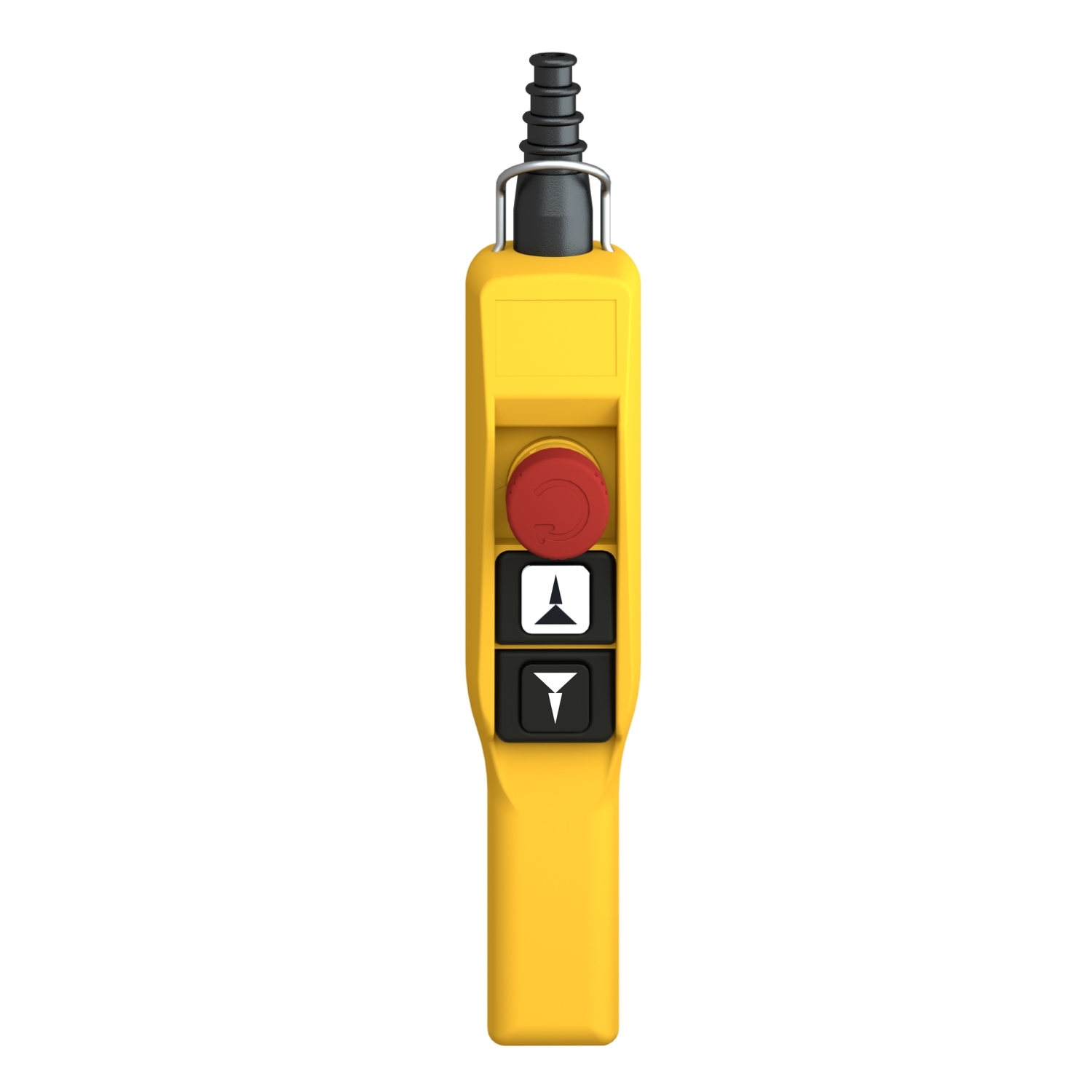

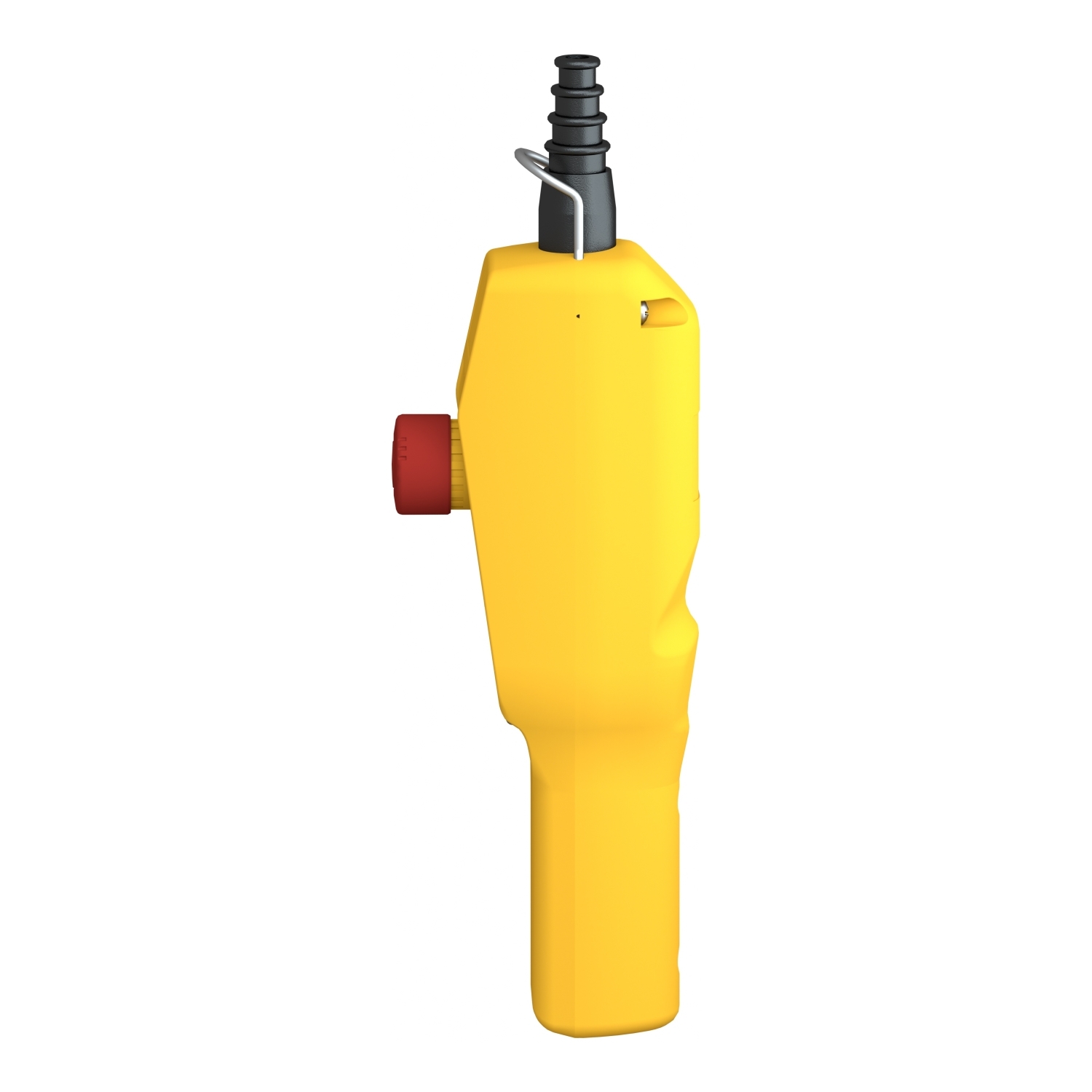

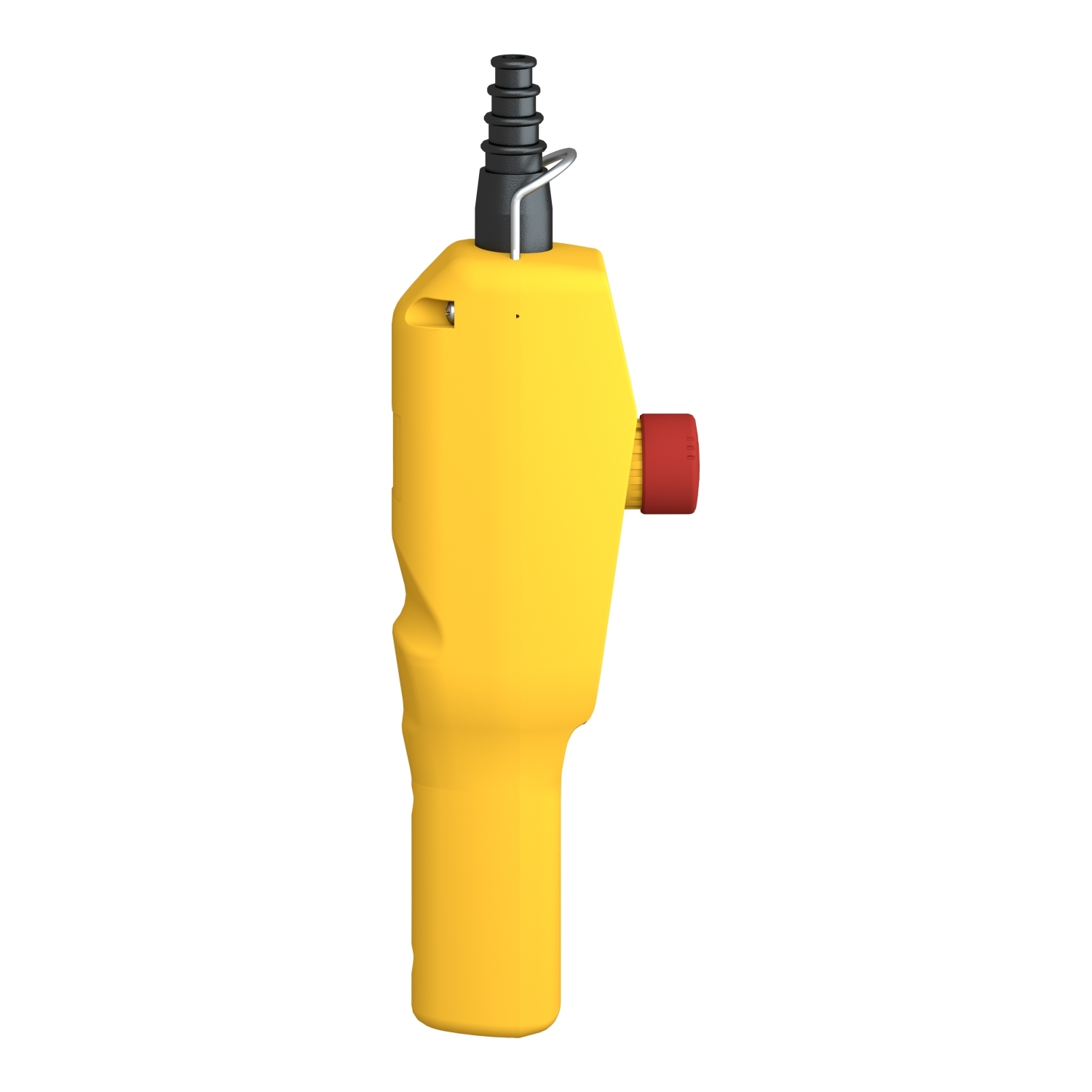

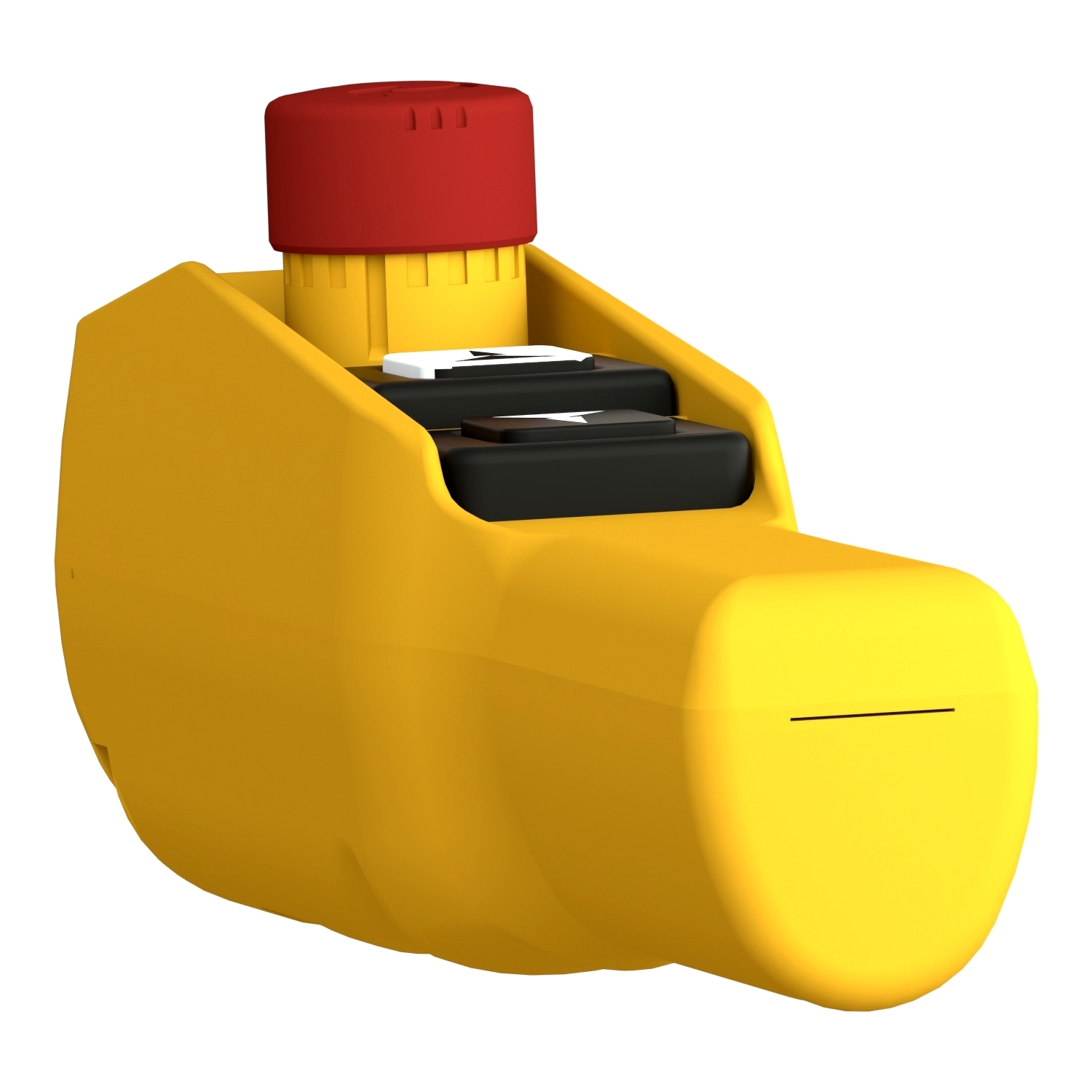

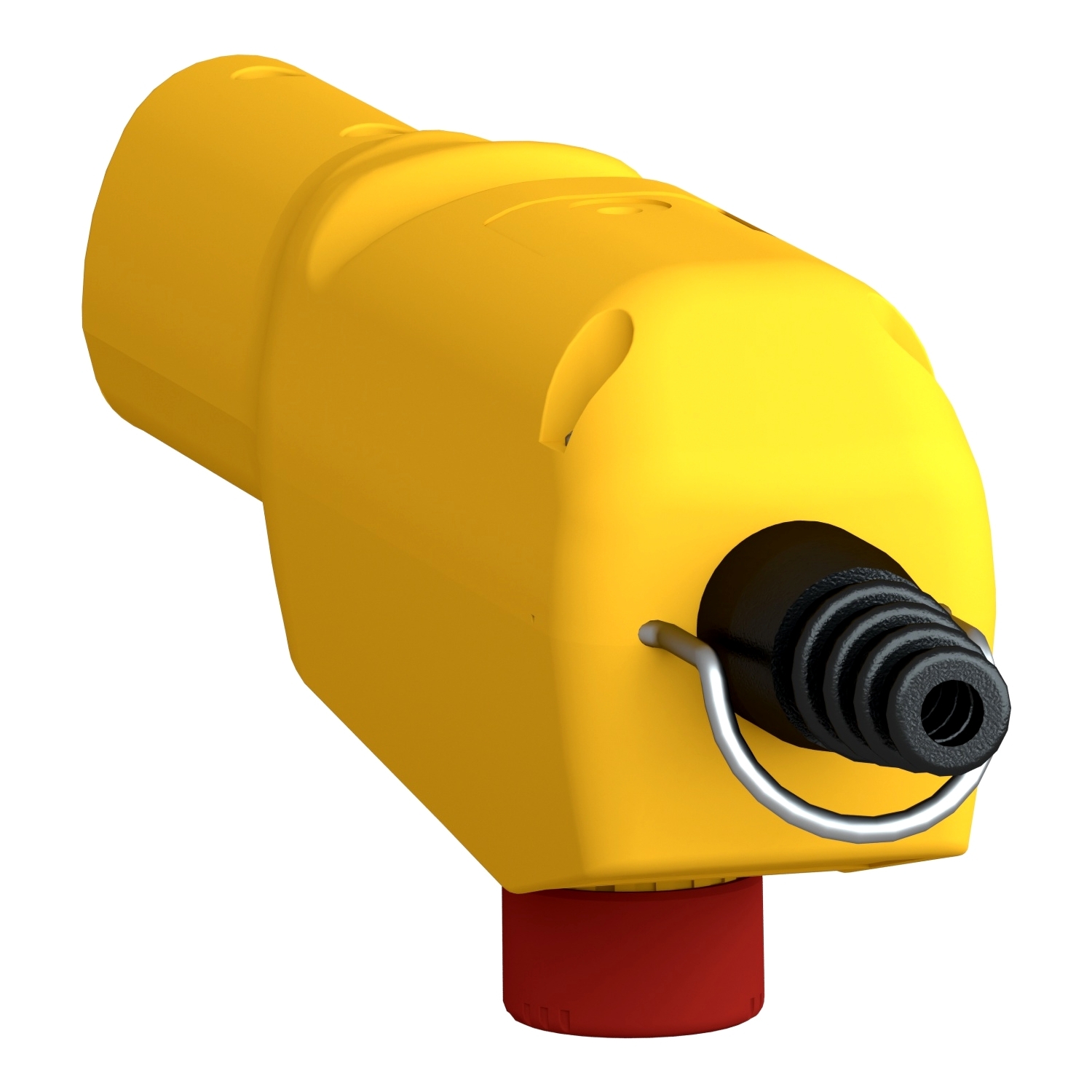

This yellow, complete ready to use, pendant station for control circuits is designed for control of 2-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylne enclosure with 2 booted push buttons mechanically interlocked and 1 trigger action latching emergency stop diameter 30mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Manuals & Documentation
| Catalog Number | XACA2173 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Control of 2-speed hoist motor;ZB2BE102 for emergency stop;ZB2BE101 + ZB2BE201 for each direction;Control circuit |
| Cable Entry | Rubber sleeve with stepped entry 7-15 mm |
| Connection | Screw clamp terminals, 1 x 2.5 mm² with or without cable end;screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Contact Rating | Slow-break;staggered |
| Enclosure | Polypropylene |
| Special Features | Complete ready for use;With mechanical interlocking |
| Standard | UL;CSA;IK08 conforming to IEC 62262;IEC 60204-32;IEC 60947-5-1;UL 508;CSA C22.2 No 14;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=674296&lang=en-us |
| GTIN | 03389110558913 |
| Item Type | Pendant control station;Double insulated;Intuitive |
