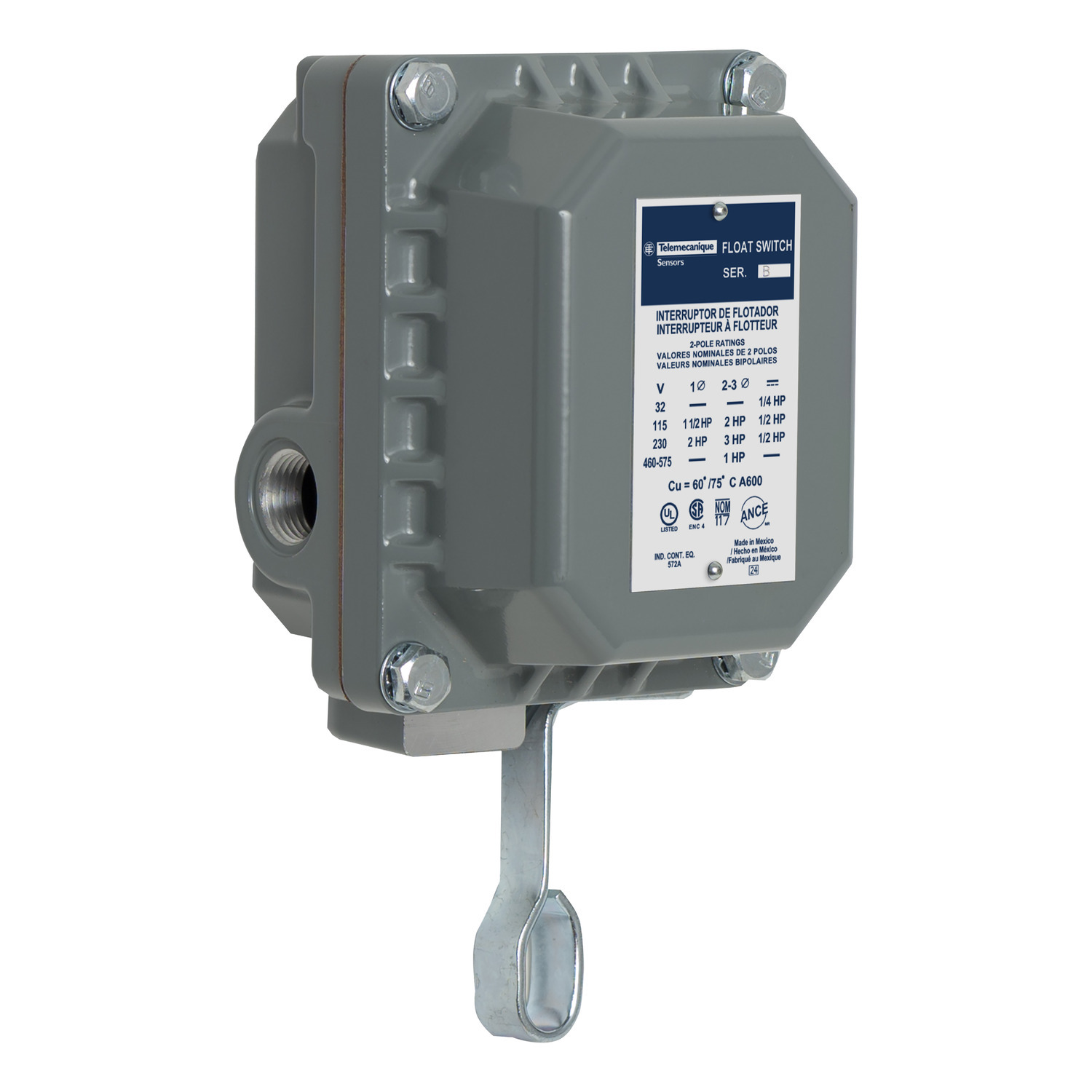

This product is part of the NEMA Pressure Switches range, an offer of float switches. This close on liquid rising float switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts. The open tank float switch supports pedestal mounting method and vertical float rod angle for operating in any position. It is furnished with screw clamp terminals for electrical connection and 2 conduit entries for 3/4-14 NPT. Offers electrical durability of 100 cycles and mechanical durability of 300 cycles. Switch is 8.5inch(W) x 4.37inch(D) x 5.06inch(H) and weighs 4.1lb. Float switch has a compensating spring. It is a NEMA 4 rated product. This product is certified by UL, CSA, CE. Meets UL 508 standards. Float switch is lever operated and designed for open tank applications. This switch can be pedestal mounted using mounting plate 9049UMS1. It is a NEMA 4 rated product. This product is certified by CE, CSA and UL. Meets UL 508 standards. Float switch is lever operated and designed for open tank applications. This switch can be pedestal mounted using mounting plate 9049UMS1.
