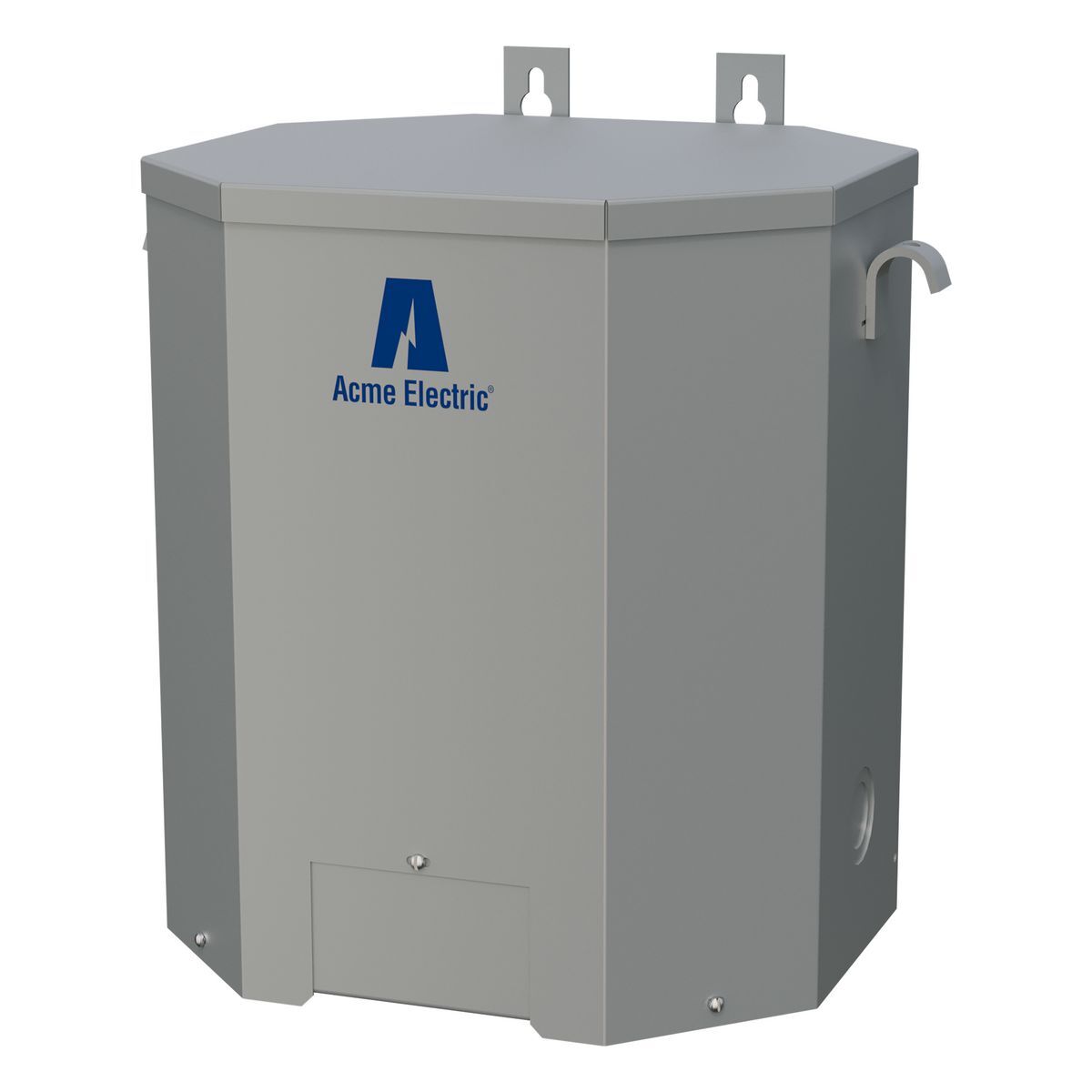

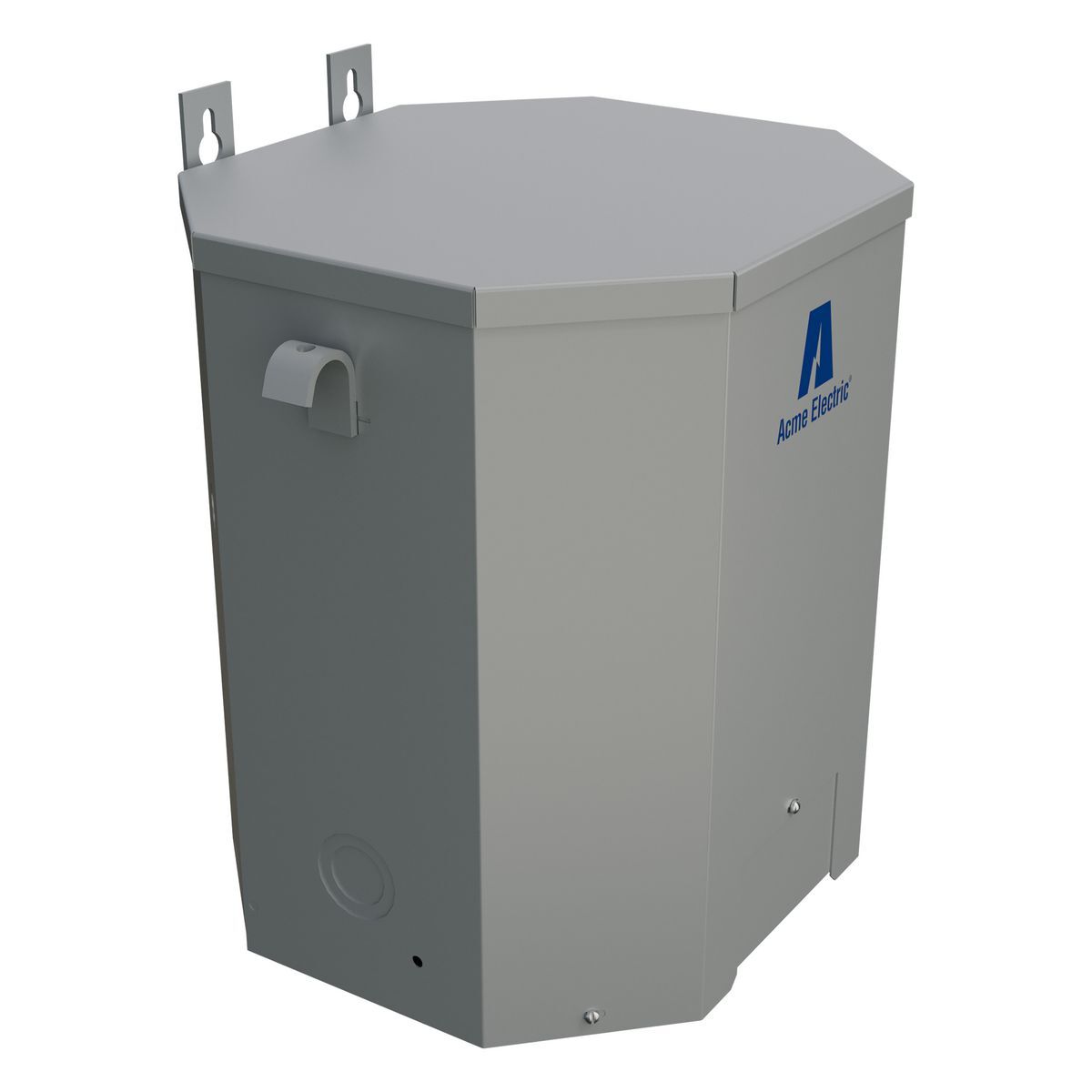

T2535173S Air Colled/Dry Distribution Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 15 kVA Power Rating, 60 Hz, 1 Phase
- MFR:
- Acme Electric, a Hubbell affiliate
- MFR #:
- T2535173S
- UPC:
- 047503734155
- Item #:
- 6693
T2535173S Air Colled/Dry Distribution Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 15 kVA Power Rating, 60 Hz, 1 Phase
- MFR #:
- T2535173S
- UPC:
- 047503734155
- Item #:
- 6693
Manuals & Documentation
| Catalog Number | T2535173S |
| Manufacturer | Acme Electric, a Hubbell affiliate |
| Brand | ACME ELECTRIC |
| Country of Origin | Mexico |
| Made in USA | No |
| Enclosure | NEMA 3R Steel |
| Frequency Rating | 60 HZ |
| Mounting | Wall |
| Primary Voltage | 240 X 480 V |
| Secondary Voltage | 120/240 V |
| Special Features | Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; 10-year limited warranty |
| Standard | UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number H3221, CSA Certified, OSHA Compliant, ANSI, IEEE |
| UPC | 047503734155 |
| GTIN | 00047503734155 |
| Item Type | Distribution Transformer |
| Length | 11.59 |
| Length UOM | Inch |
| Width | 14.12 |
| Width UOM | Inch |
| Height | 16.94 |
| Height UOM | Inch |
| Temperature Rating | 115 DEG C Rise |
