Telemecanique

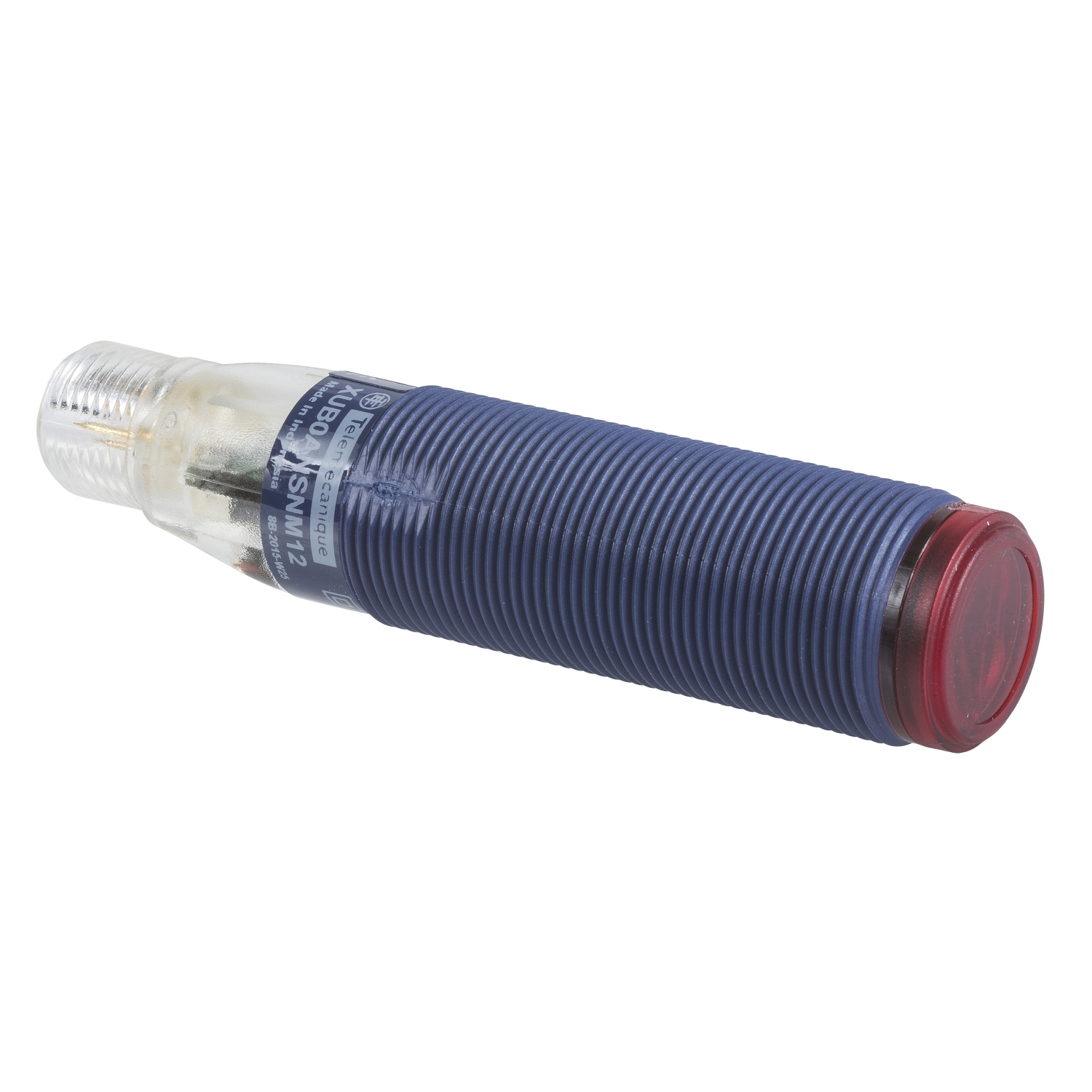

XUB1APANM12 OsiSense XU Simply Easy 3-Wire Axial Corrosion-Resistant Dusttight/Watertight Photoelectric Sensor, M18 Cylindrical Shape, 5.5 m, Infrared Sensing Beam, 1 ms Response, PNP 1NO Output

MFR:
Telemecanique Sensors
MFR #:
XUB1APANM12
UPC:
785901821649
Item #:
669110

This design 18 single mode (reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Manuals & Documentation
Catalog Number XUB1APANM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application -
Connection 1 male connector M12, 4 pins
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,PBT
Operating Cycles <= 500 Hz
Output PNP;1 NO;Discrete;Solid state
Sensing Range 4-4 M REFLEX NEED REFLECTOR XUZC50,> 3.28...16.4 FT (> 1...5 M)
Special Features 1 LED yellow)output state
Standard CSA-UL-CE,IP67 DOUBLE INSULATION IEC 60529-IP65 DOUBLE INSULATION IEC 60529-IP69K DOUBLE INSULATION DIN 40050
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=872688&lang=en-us
UPC 785901821649
GTIN 03389110148688
Item Type General purpose single mode;Reflex;Cylindrical M18;Photo-electric sensor
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
