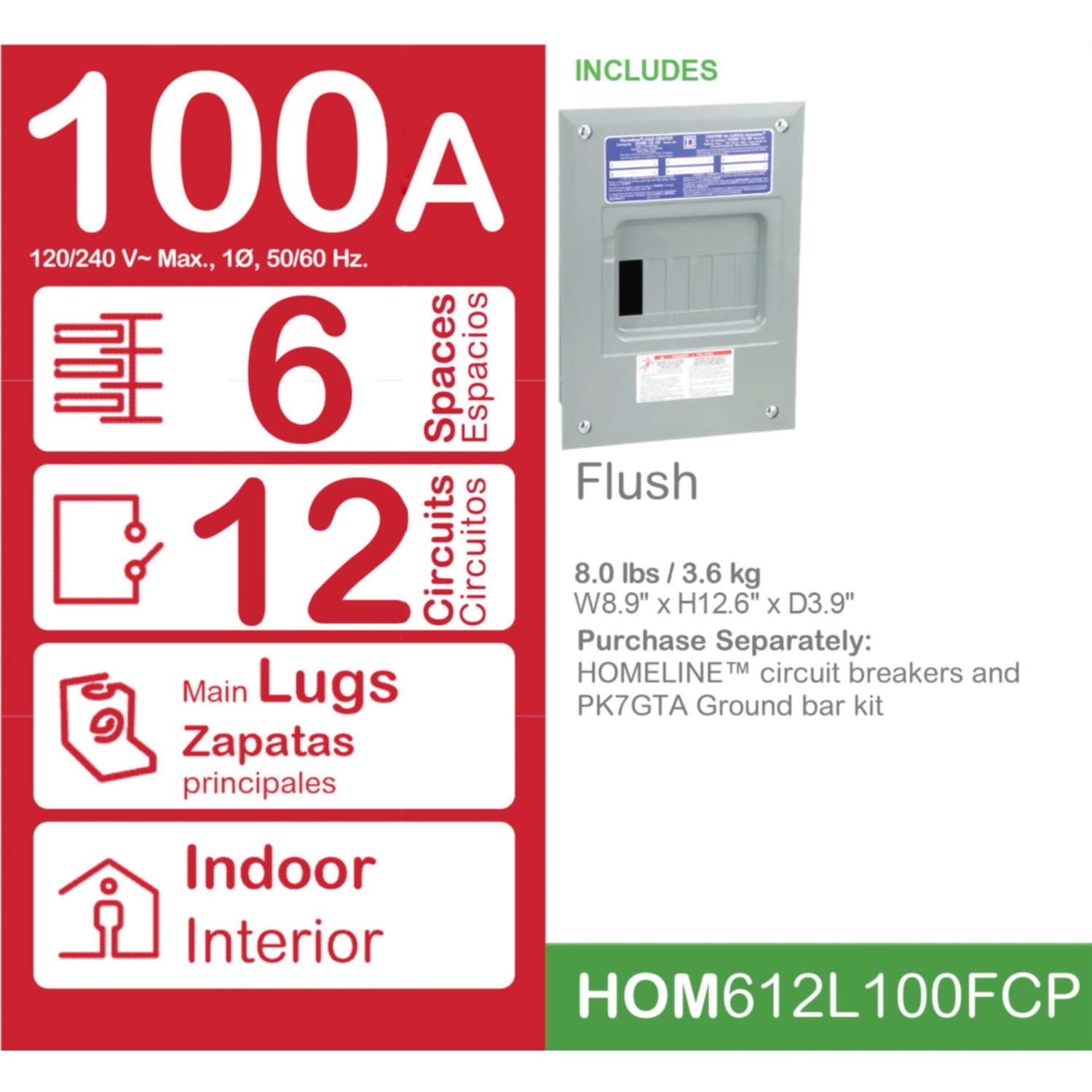

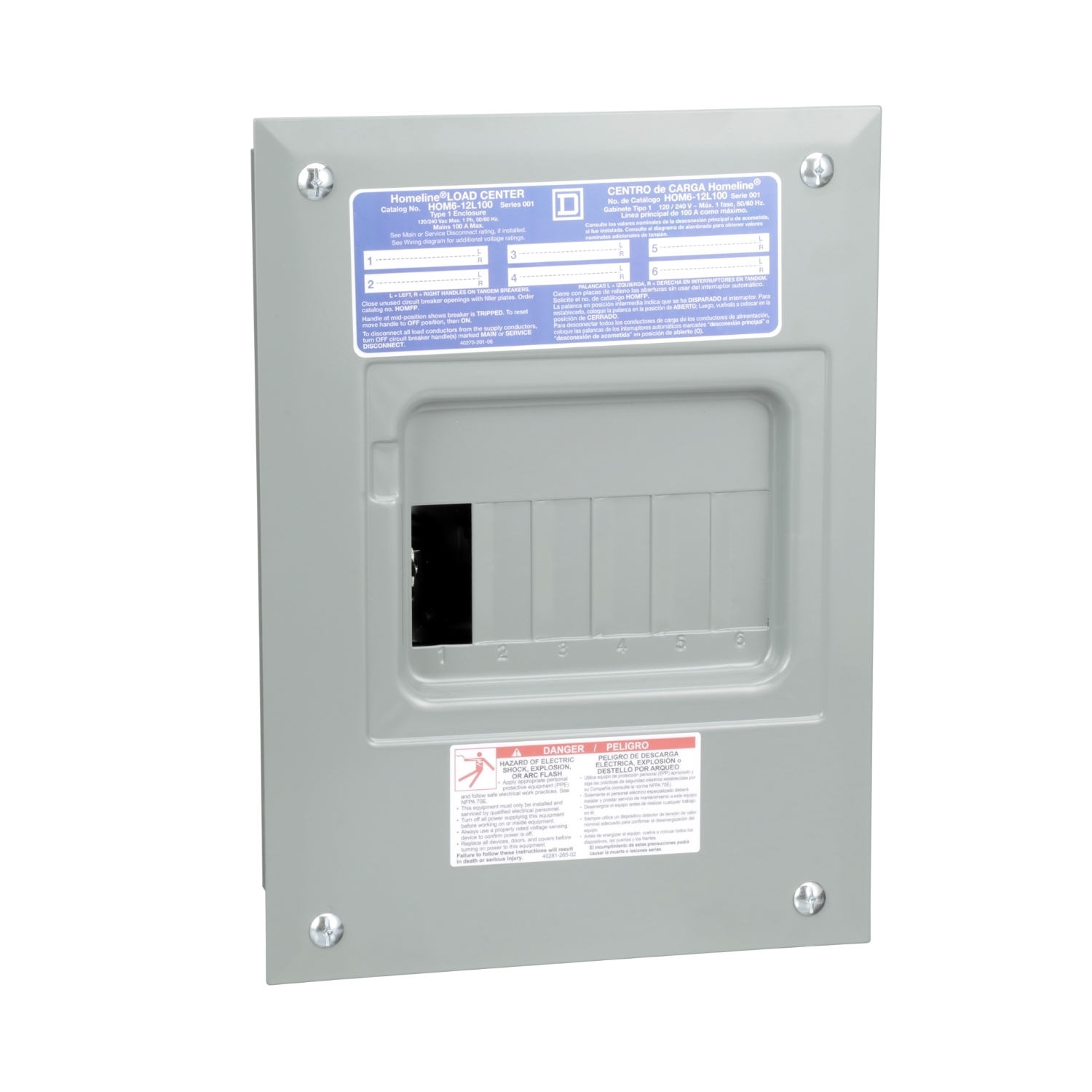

Load center, Homeline, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA1, flush cover, consumer pack
- MFR:
- Schneider Electric
- MFR #:
- HOM612L100FCP
- UPC:
- 047569071249
- Item #:
- 668895
Load center, Homeline, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA1, flush cover, consumer pack
- MFR #:
- HOM612L100FCP
- UPC:
- 047569071249
- Item #:
- 668895
The Square D Homeline Load Centers and Circuit Breakers, HOM612L100FCP are part of a comprehensive family of circuit protection solutions. Plug on neutral load main breakers centers with lug connections. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 80 kA of surge protection per phase and comes in consumer package. The surge protection device is in a NEMA 4X housing. The surge protection device is 3.23 inches tall, 3.72 inches wide and 2.10 inches deep. The surge protection device is UL listed.
Manuals & Documentation
| Catalog Number | HOM612L100FCP |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Connection | Lugs;AWG 8...AWG 1 copper or aluminium |
| Cover Type | Flush cover |
| Enclosure | Baked enamel Gray;Welded sheet steel;4 |
| Material | Tin plated aluminium: busbar |
| Phase | 1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=359225&lang=en-us |
| UPC | 047569071249 |
| GTIN | 00047569071249 |
| Item Type | Load Center |

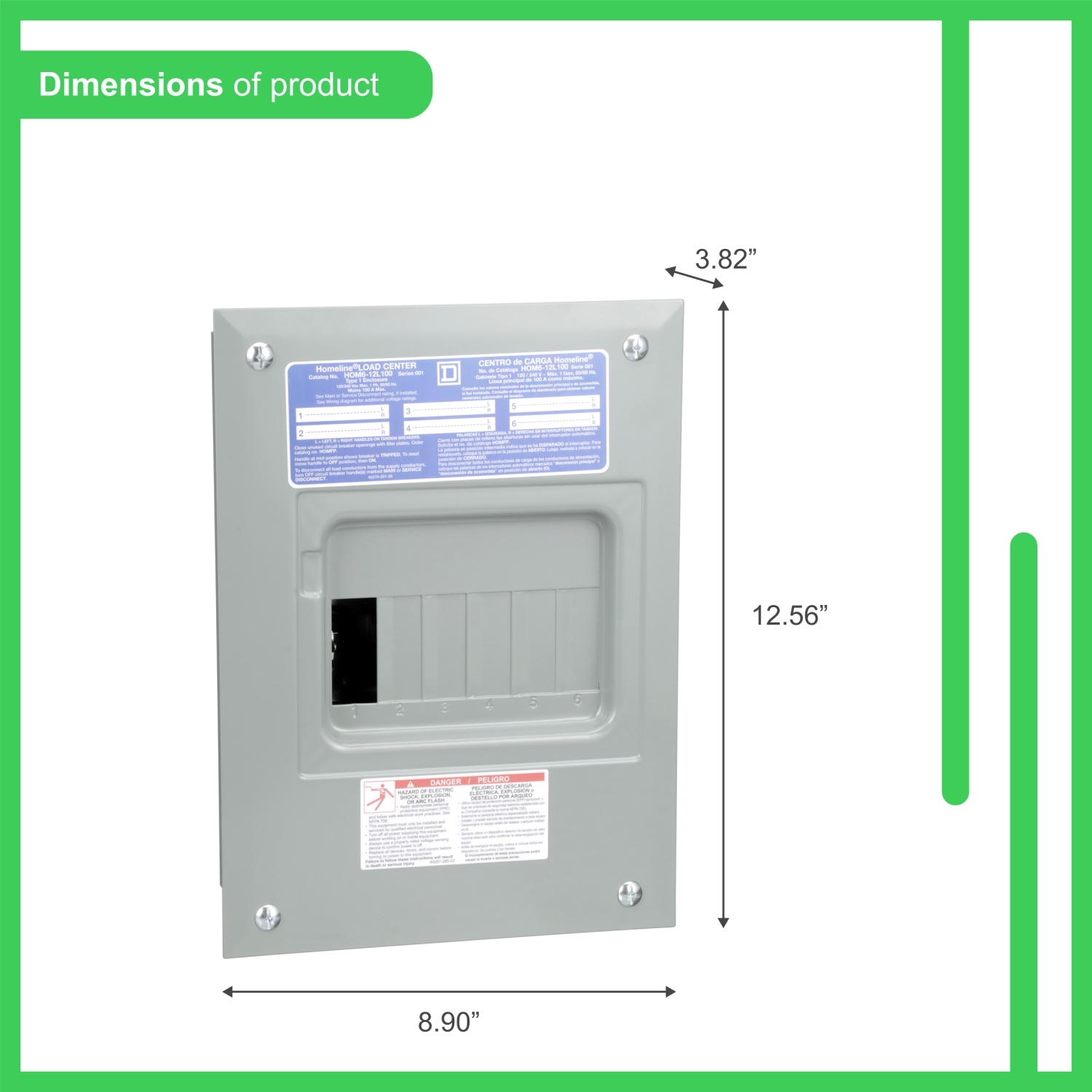

| Width | 8.89760 |
| Width UOM | Inch |
| Height | 12.55910 |
| Height UOM | Inch |
| Voltage Rating | 120/240 V AC |
