SCHNEIDER ELECTRIC

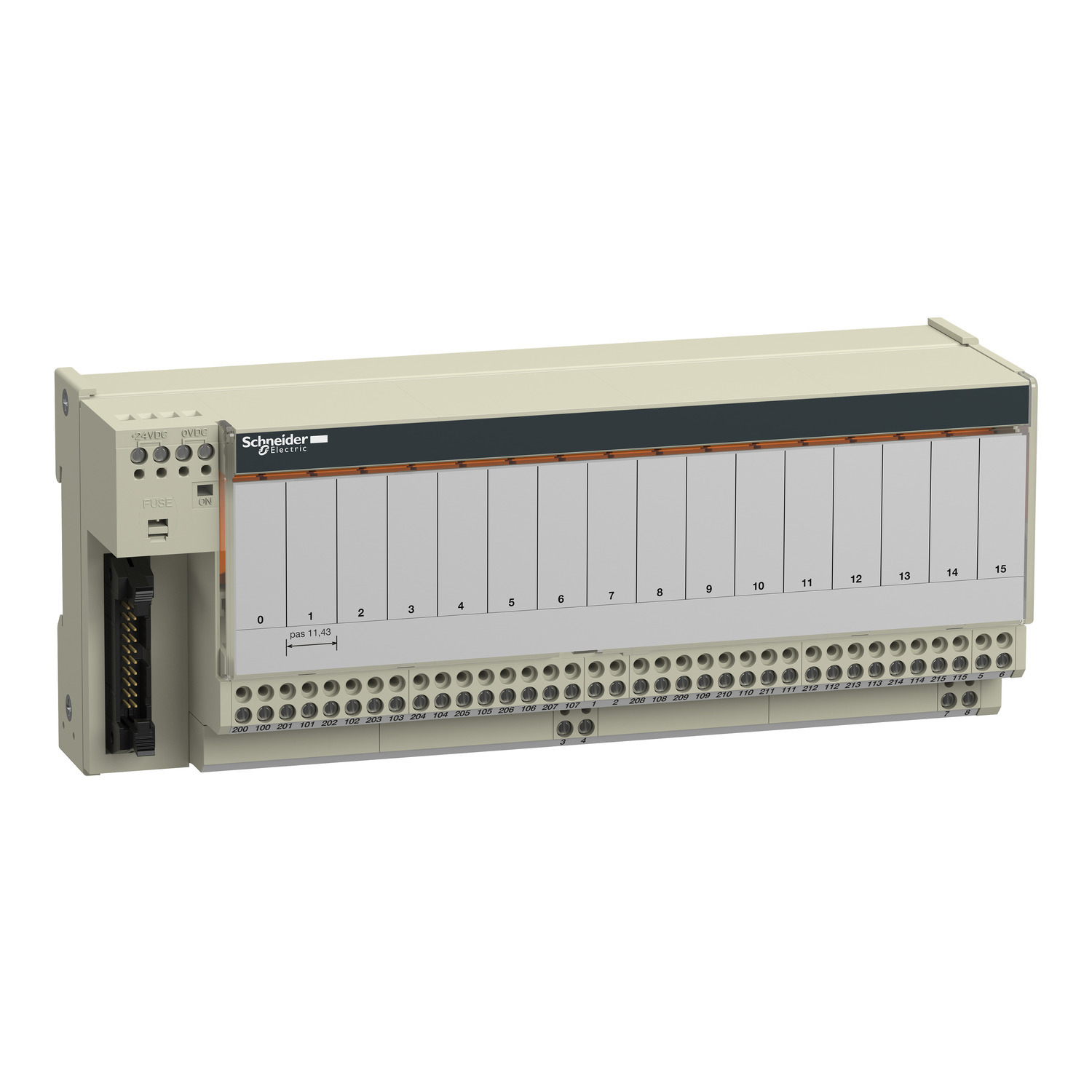

ABE7R16T210 Advantys 2-Output Sub-Base With EM Relay, 19 to 30 V DC, For Use With Modicon ABE7 and ABR7S21 Plug-In Electromechanical Relay

MFR:
Schneider Electric
MFR #:
ABE7R16T210
Item #:
667658

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. It has normally opened contact. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is an IP2x rated product. It weighs 0.735kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S21 plug-in relay. The fixing is done by clips (35mm DIN rail) and screws (surface mount with kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Manuals & Documentation
Catalog Number ABE7R16T210
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Mounting Din Rail
Power Supply 19...30 V IEC 61131-2;DC
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1451971&lang=en-us
GTIN 03389110644630
Item Type Sub-base with plug-in electromechanical relay
