BURNDY

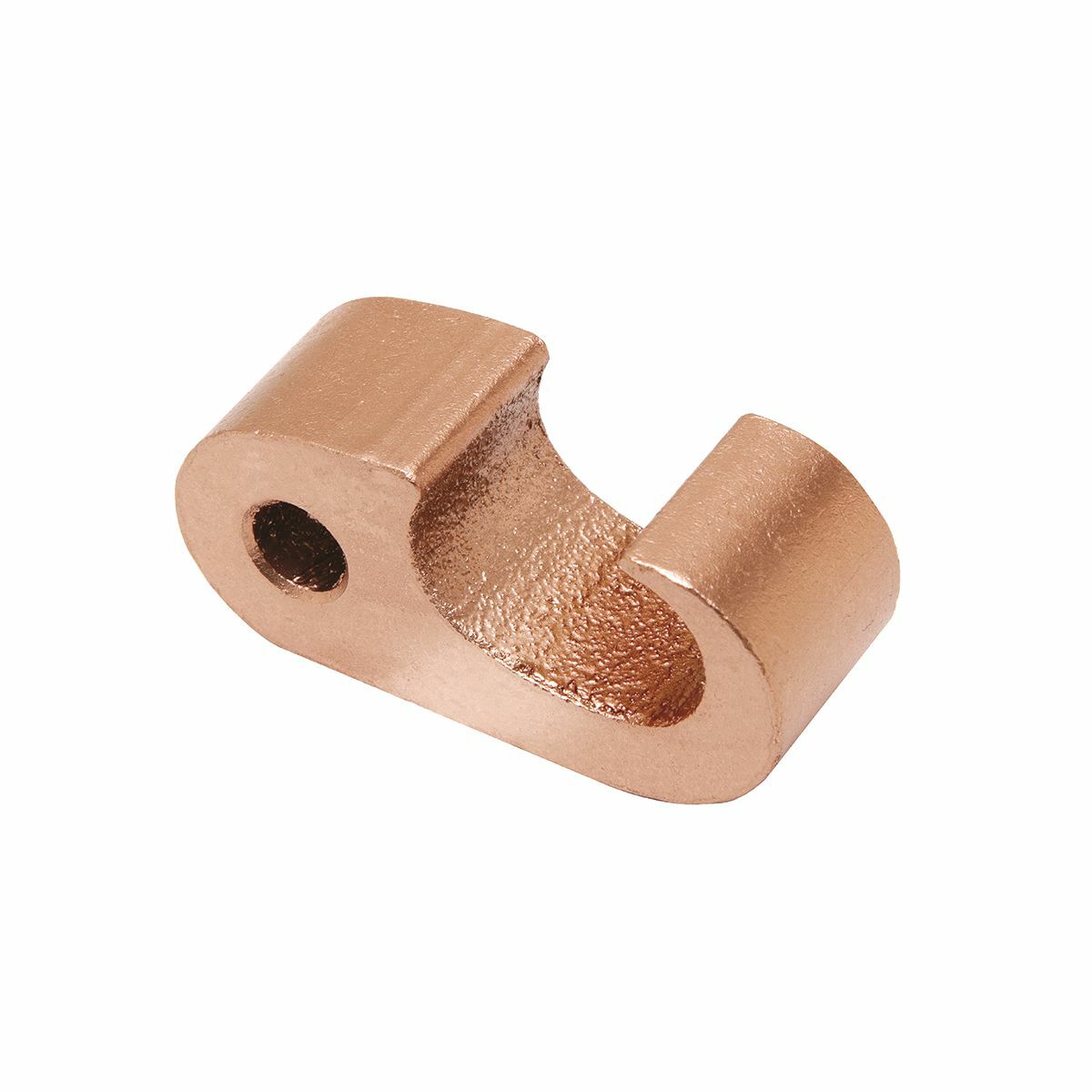

YGHP34C29 Type YGHP-C Mechanical Compression Ground Rod Connector, Figure 6 Shape, 3/0 AWG to 250 kcmil Main/Run, 3/0 AWG to 250 kcmil Tap, Copper

MFR:
Burndy, a Hubbell affiliate
MFR #:
YGHP34C29
UPC:
781810220979
Item #:
66751
Manuals & Documentation
Catalog Number YGHP34C29
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application For Direct Burial In Earth And Concrete
Material Copper
Special Features Features: Irreversible Compression Ground Tap Figure 6 Can Be Used As A Tap Connector Or As A Tap Splice Connector, Four Die Sets And Eight Connectors Can Accommodate A Conductor Range From #8 AWG Solid Through 500 KCMIL Plus 1/2 , 5/8 And 3/4 IN Copper Bonded Ground Rods, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y750, PAT750-18V Tool, PU998 Die, (1), Y45 Tool, PU998 Die With PT6515 Adapter, (1), S998 Die, (1), Y46 Tool, PU998 Die With PUADP-1 Adapter, (1), P998 Die, (1), Die Index: 998 Element A, Rebar Size: #5 - #6, Ground Rod Size: 5/8 - 3/4 IN, Conductor Type: Run: Commercial Stranded Copper, Tap: Commercial Stranded Copper, Shape: 6, Conductor Size (tap Range): 3/0 AWG - 250 KCMIL, Conductor Size (run - Range): 250 - 500 KCMIL
Standard Direct Burial
UPC 781810220979
GTIN 00781810220979
Item Type Taps
Cross Reference Products 54895
