SQUARE D

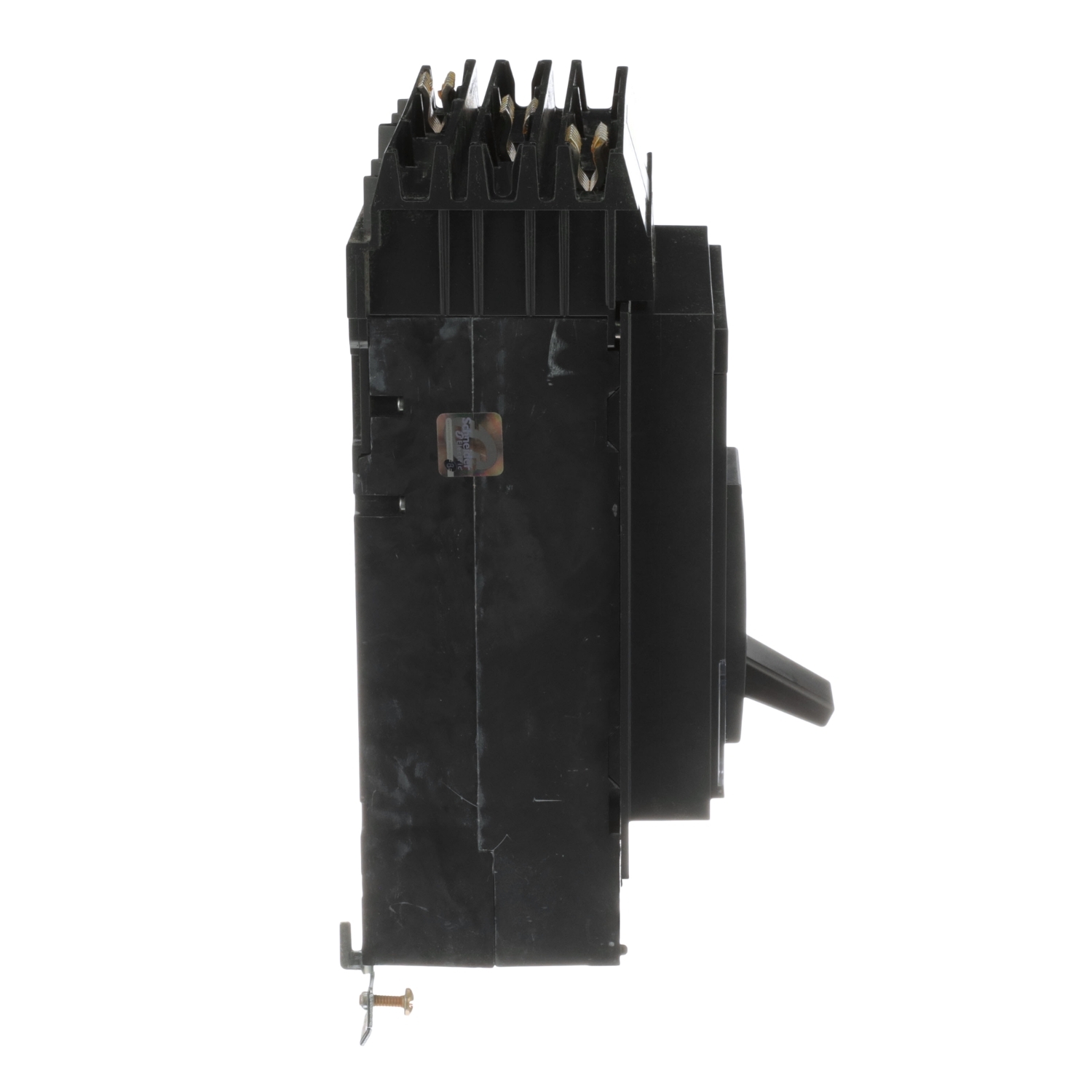

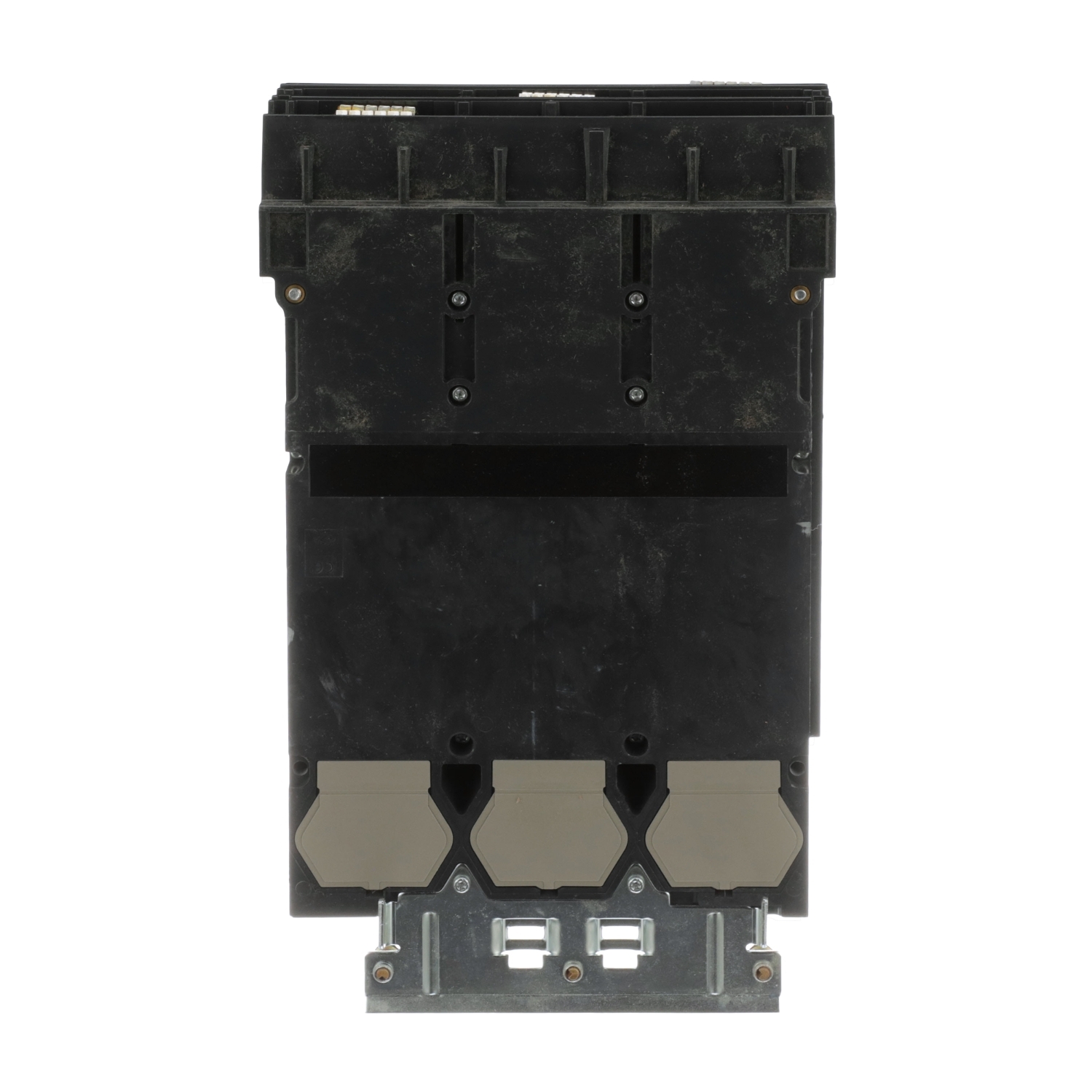

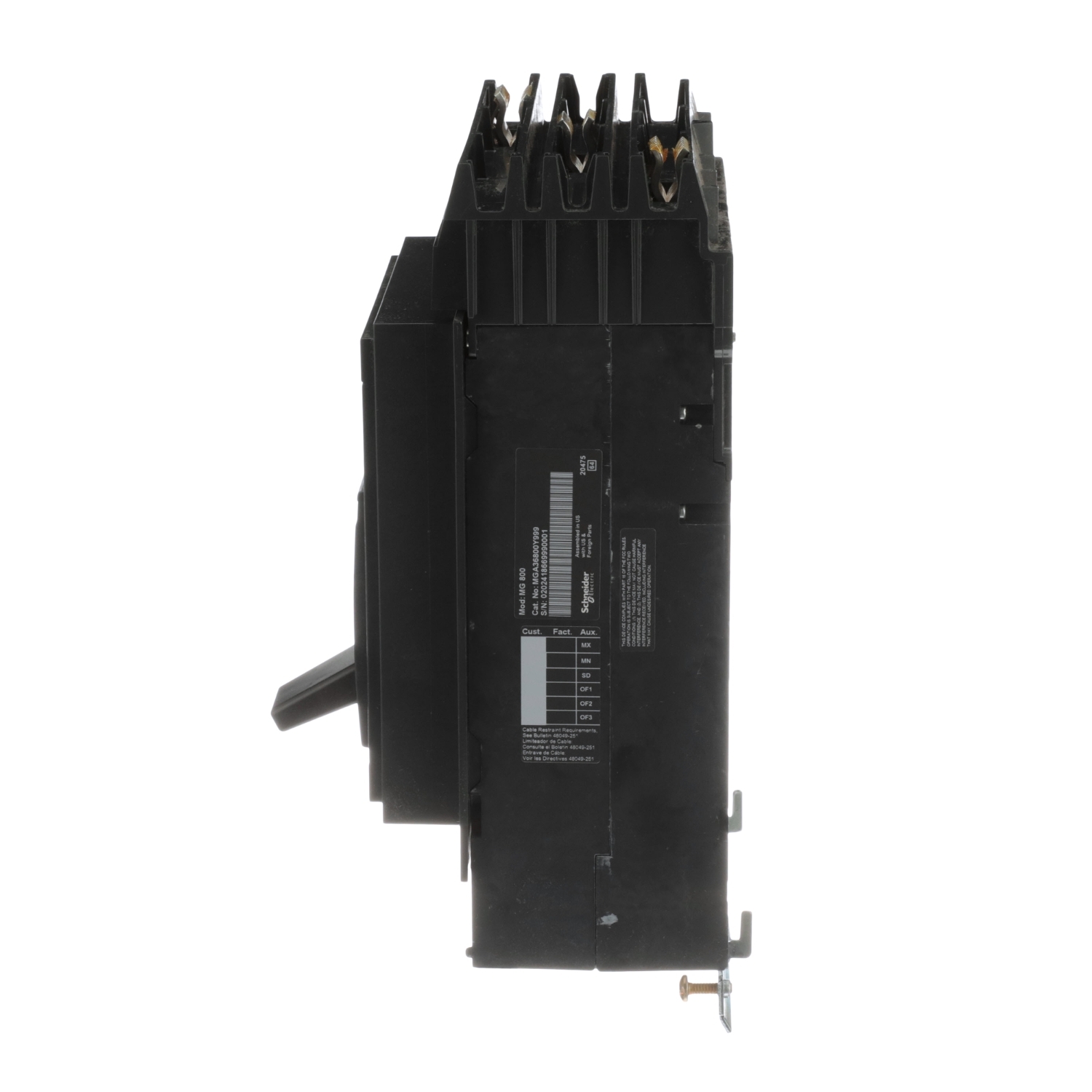

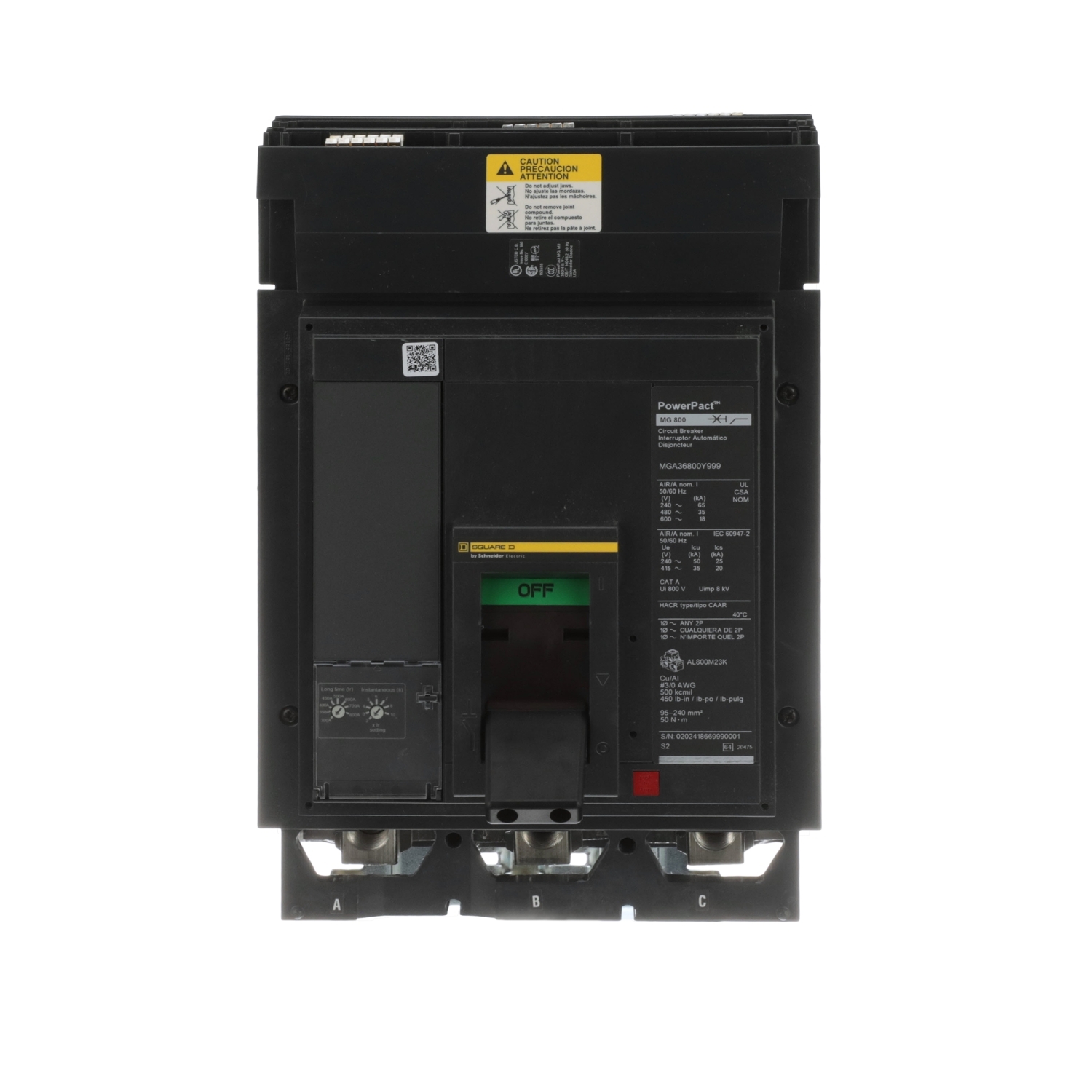

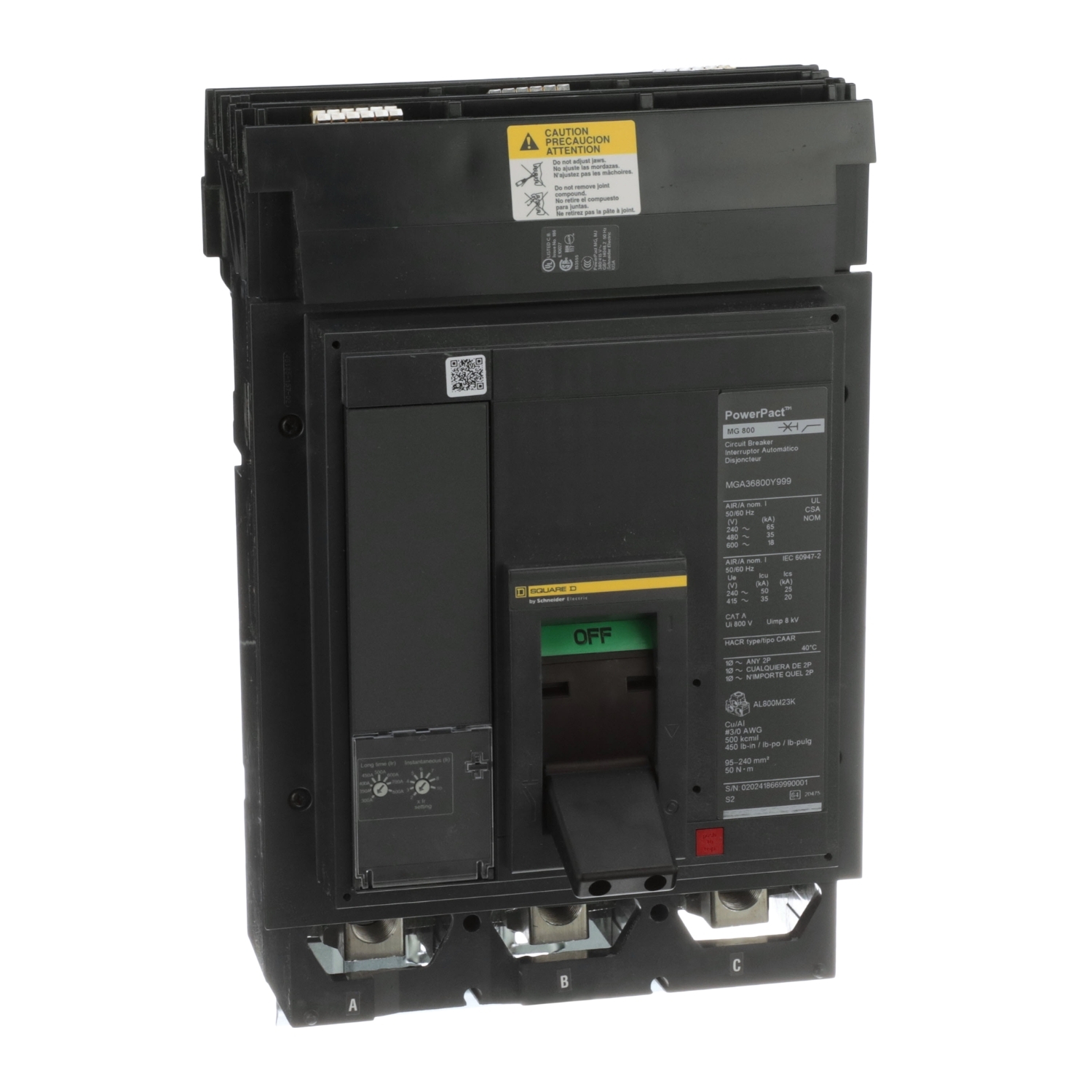

MGA36800E10 Series Circuit Breaker, 600 V AC, 300-800 A, 35 to 60 kA interrupt, 3 poles, Magnetic trip

MFR:
Schneider Electric
MFR #:
MGA36800E10
Item #:
666840

PowerPacTM-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has the adjustable amperage option, allowing trip setting changes between 300A to 800A using a selector switch. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 300A to 800A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number MGA36800E10
Manufacturer Schneider Electric
Brand SQUARE D
Country of Origin United States
Made in USA Yes
Actuator Operating handle
Application Distribution;HACR rated
Color Black
Connection I-Line connection, line;lugs, load; 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Frequency Rating 50/60 Hz
Number of Poles 3
Special Features Modbus;1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=526110091&lang=en-us
GTIN 03606482185180
Item Type Circuit breaker;Communication module
Width 8.27
Width UOM Inch
Height 12.86
Height UOM Inch
Depth 8.05 IN
Trip Type Electronic, basic, ET 1.0,
