SQUARE D

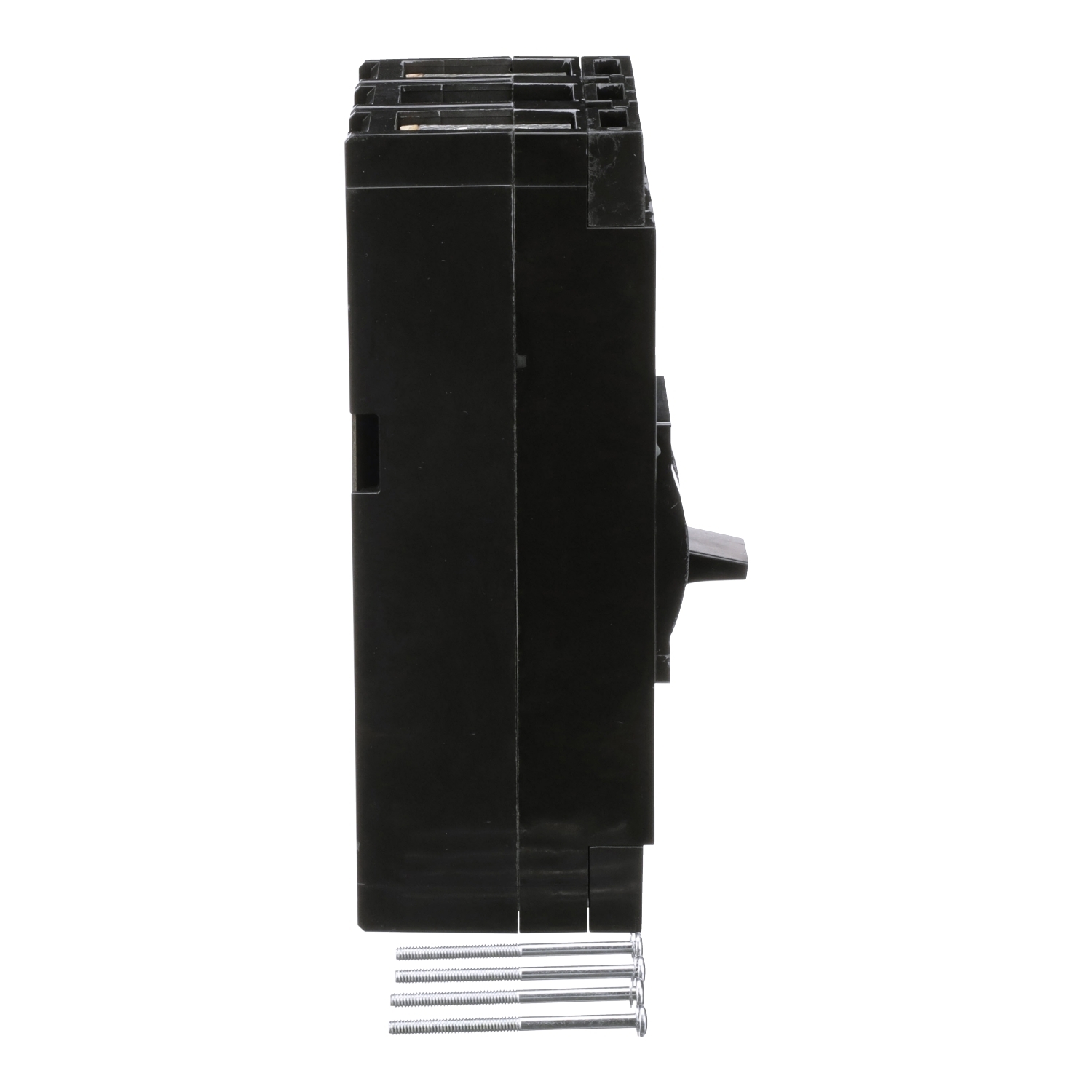

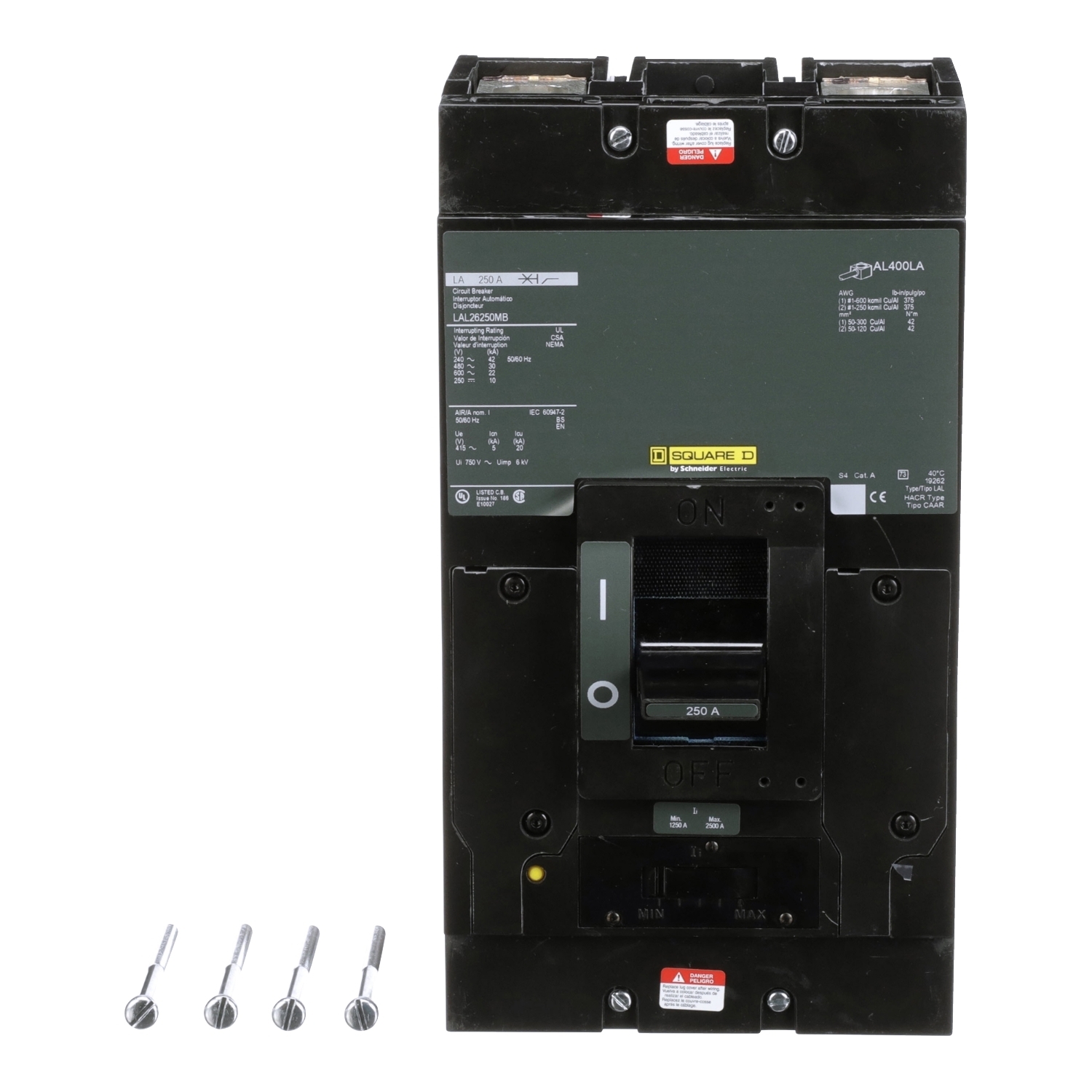

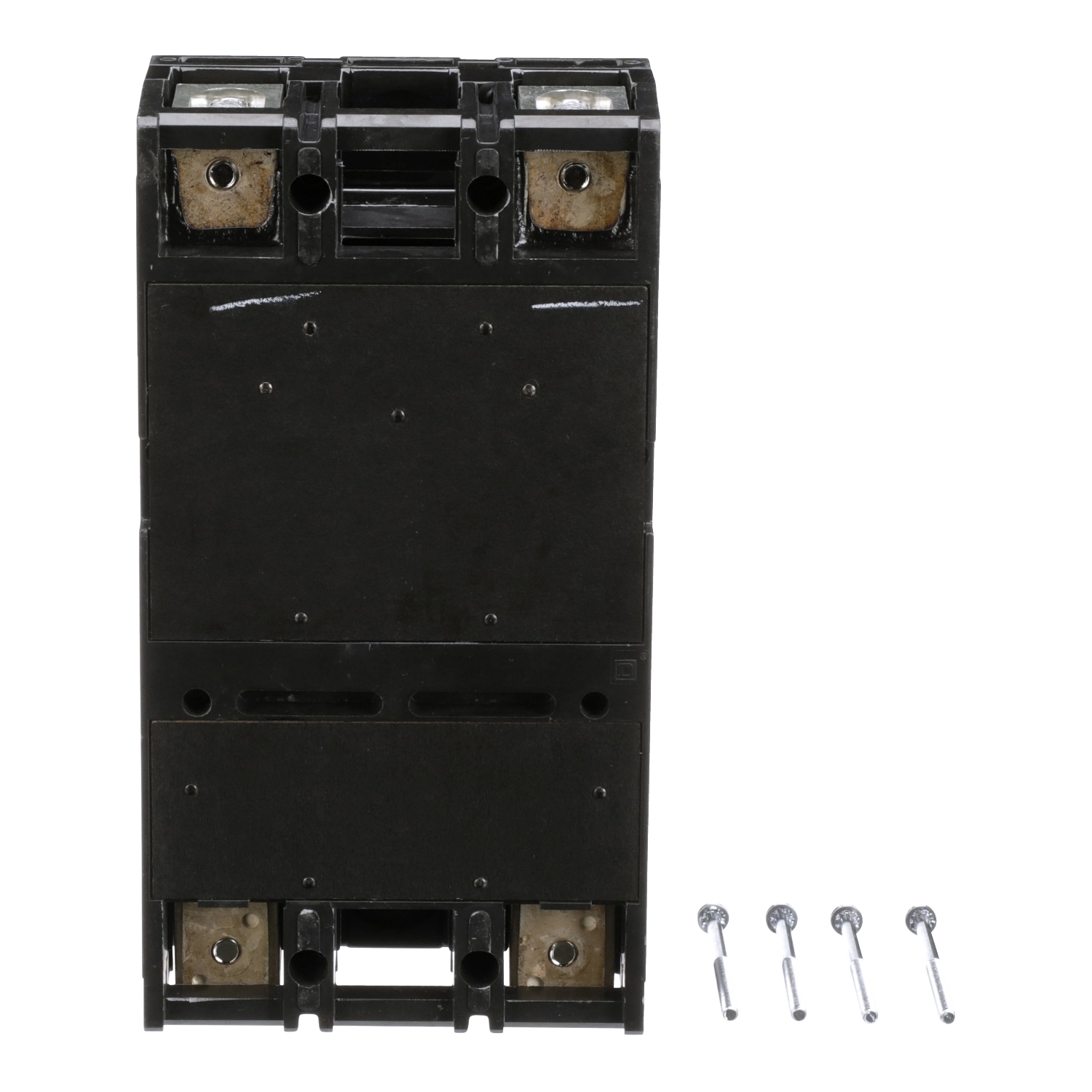

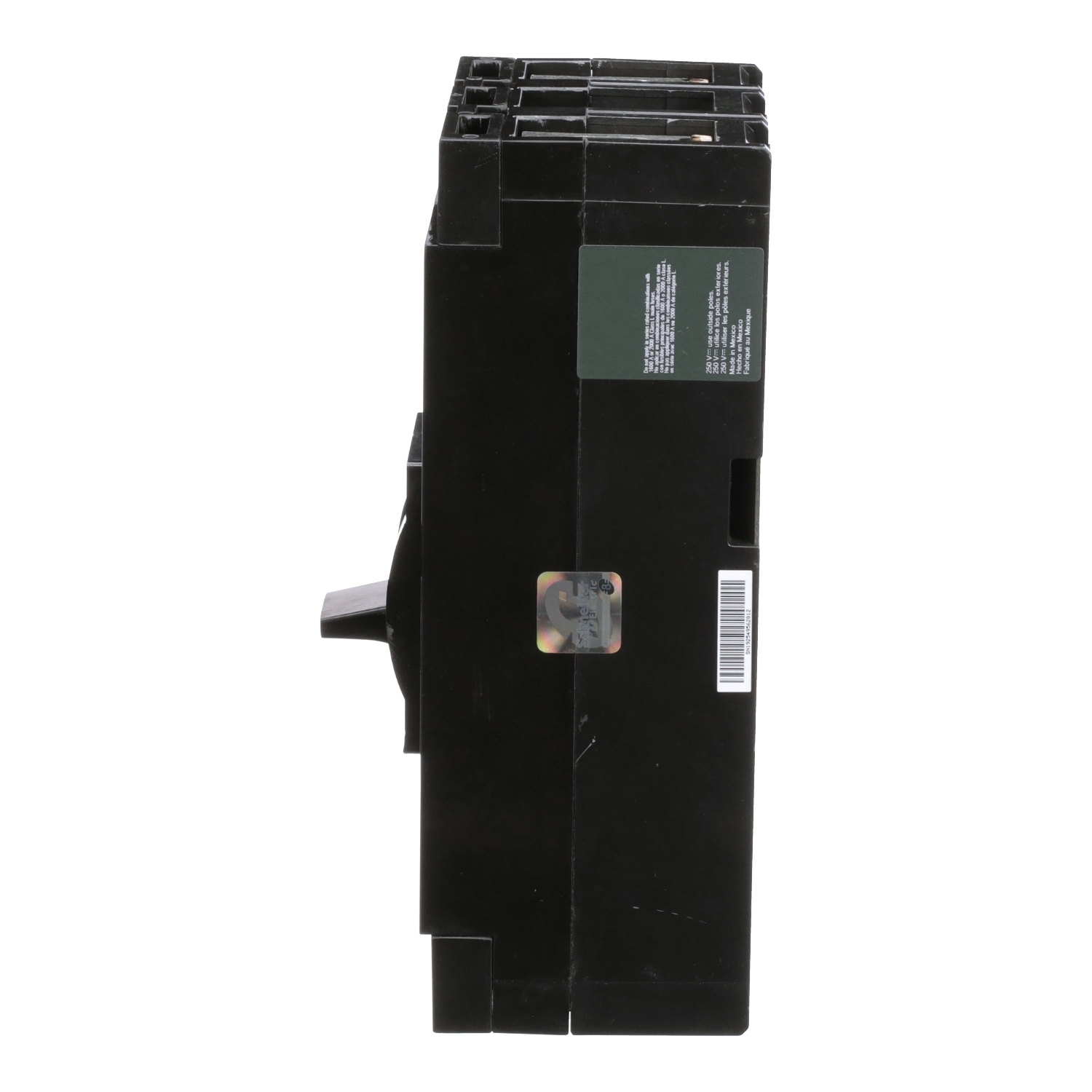

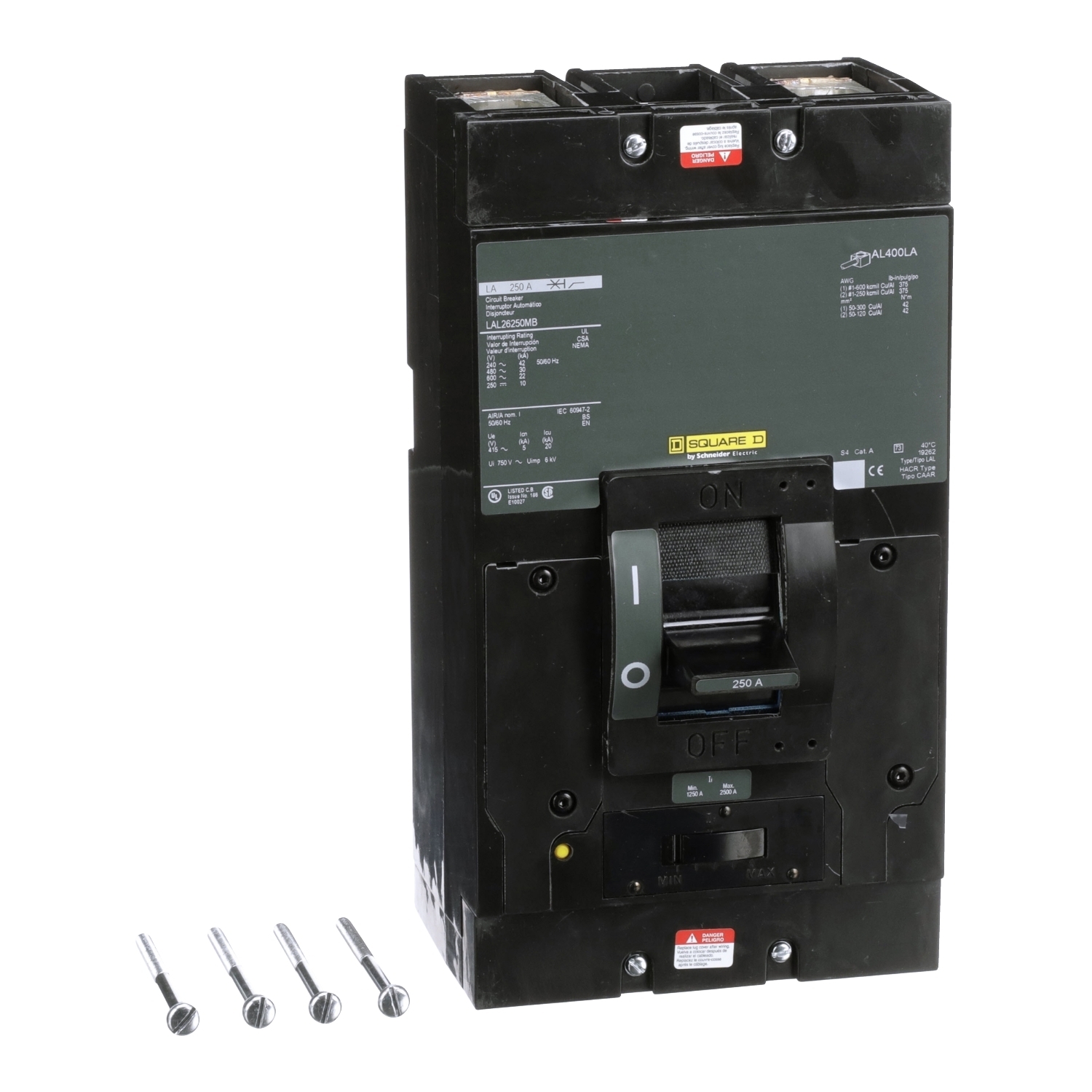

LAL26250MB Molded Case Circuit Breaker, 250 Amp, 2 Pole, 600V

MFR:
Schneider Electric
MFR #:
LAL26250MB
UPC:
785901525356
Item #:
66614

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 2 pole unit mount breaker, 250A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker MB suffix indicates a shorter handle so that a panel door can close. LA breakers are UL 489, CSA, IEC certified.

Manuals & Documentation
Catalog Number LAL26250MB
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=427891&lang=en-us
UPC 785901525356
GTIN 00785901525356
Width 6.0
Width UOM Inch
Height 11.0
Height UOM Inch
Depth 5.84 IN
