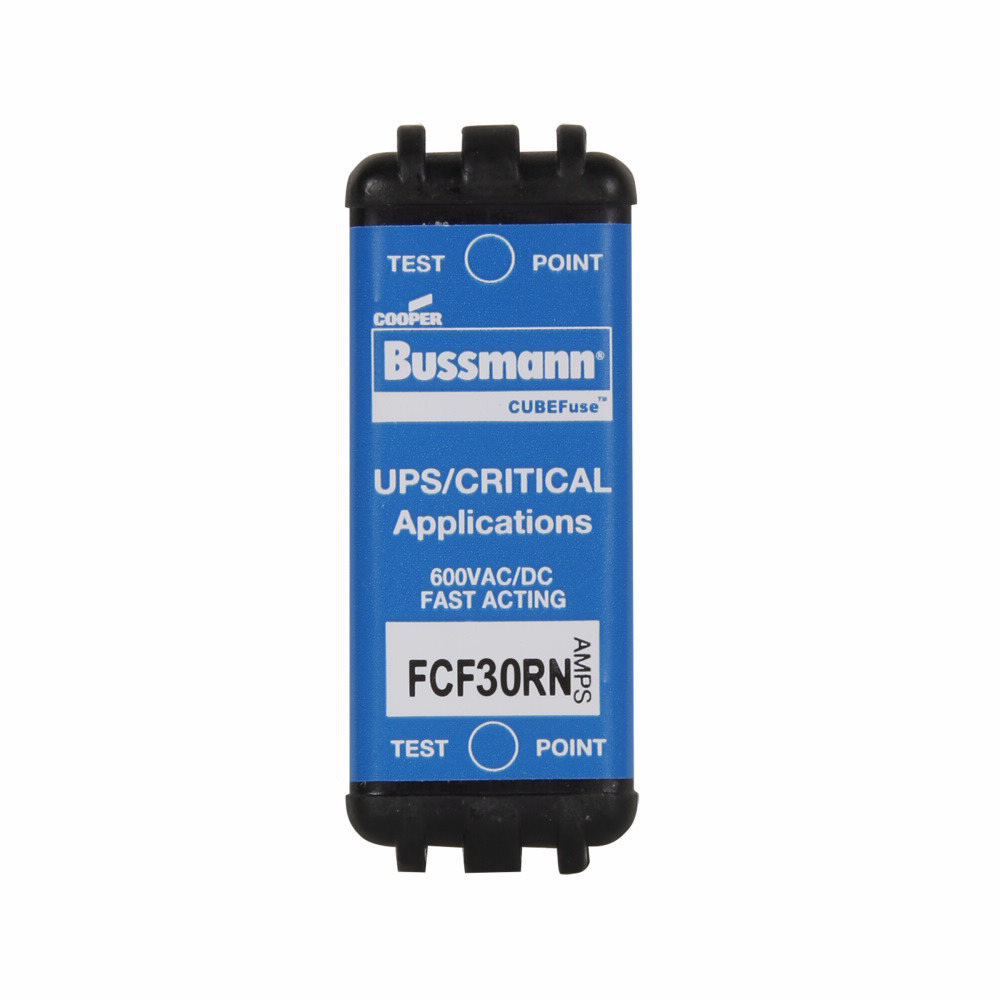

FCF30RN Fast Acting Non-Indicating Cartridge Fuse, 30 A, 600 V AC/DC, 50/300 kA Interrupt, Class: CF, Square Blade Body
- MFR:
- Eaton Bussmann
- MFR #:
- FCF30RN
- UPC:
- 051712362481
- Item #:
- 665379
FCF30RN Fast Acting Non-Indicating Cartridge Fuse, 30 A, 600 V AC/DC, 50/300 kA Interrupt, Class: CF, Square Blade Body
- MFR #:
- FCF30RN
- UPC:
- 051712362481
- Item #:
- 665379
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution requiring up to 70 less space when combined with its unique fuse holder or UL 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.
| Catalog Number | FCF30RN |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems|Datacenters - Facilities: Power Distribution|Commercial / Institutional Buildings / Structures - Critical Power|Ind Facilities & Factories - Facility: Power Distribution and Control|Stationary Machinery and Equipment Outside Factory - HVAC |
| Connection | Blade end |
| Interrupt Rating | 50 kAIC at 600 Vdc|300 kAIC at 600 Vac |
| Material | Glass filled PES |
| Response Time | 4 Min at 200% |
| Special Features | Superior overload and cycling capabilities |
| Standard | CSA Certified ,UL Listed,RoHS Compliant,CE Marked |
| UPC | 051712362481 |
| GTIN | 00051712362481 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 1.88 In Length X 0.75 In Width |
| Voltage Rating | 600 Vac, 600 Vdc |
