Appleton

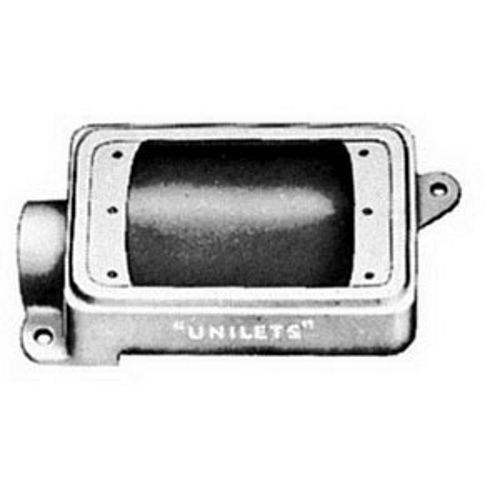

FD1100 Unilets Type FD Deep Heavy Duty Device Box With Internal Ground Screw, Malleable Iron, 25 cu-in Capacity, 1 Gangs, 1 Outlets, 1 Knockouts, 5.62 in H x 2.81 in W x 2.69 in D

MFR:
Appleton Electric
MFR #:
FD1100
UPC:
781381333955
Item #:
66296

UNILETS FD Deep Depth 1-Gang Cast Device Box, Number Of Outlet: 1, Material: Malleable Iron, Size: 1 IN, Cable Entry: (1) 1 IN Hub, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 4.56 IN, Width: 2.81 IN, Depth: 2.69 IN, Finish: Triple-Co

Manuals & Documentation
Catalog Number FD1100
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit And IMC
Cable Entry (1) 1 IN Hub
Cubic Capacity 25 CU IN
Knockouts No
Material Malleable Iron
Special Features Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
Standard UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
RoHS Indicator Contact Manufacturer
UPC 781381333955
GTIN 00781381333955
Item Type FD Deep Depth 1-Gang Cast Device Box
Length 7.1000
Length UOM Inch
Width 5.4000
Width UOM Inch
Height 3.5000
Height UOM Inch
Weight 2.510
Weight UOM Pounds
Size 1
