Telemecanique

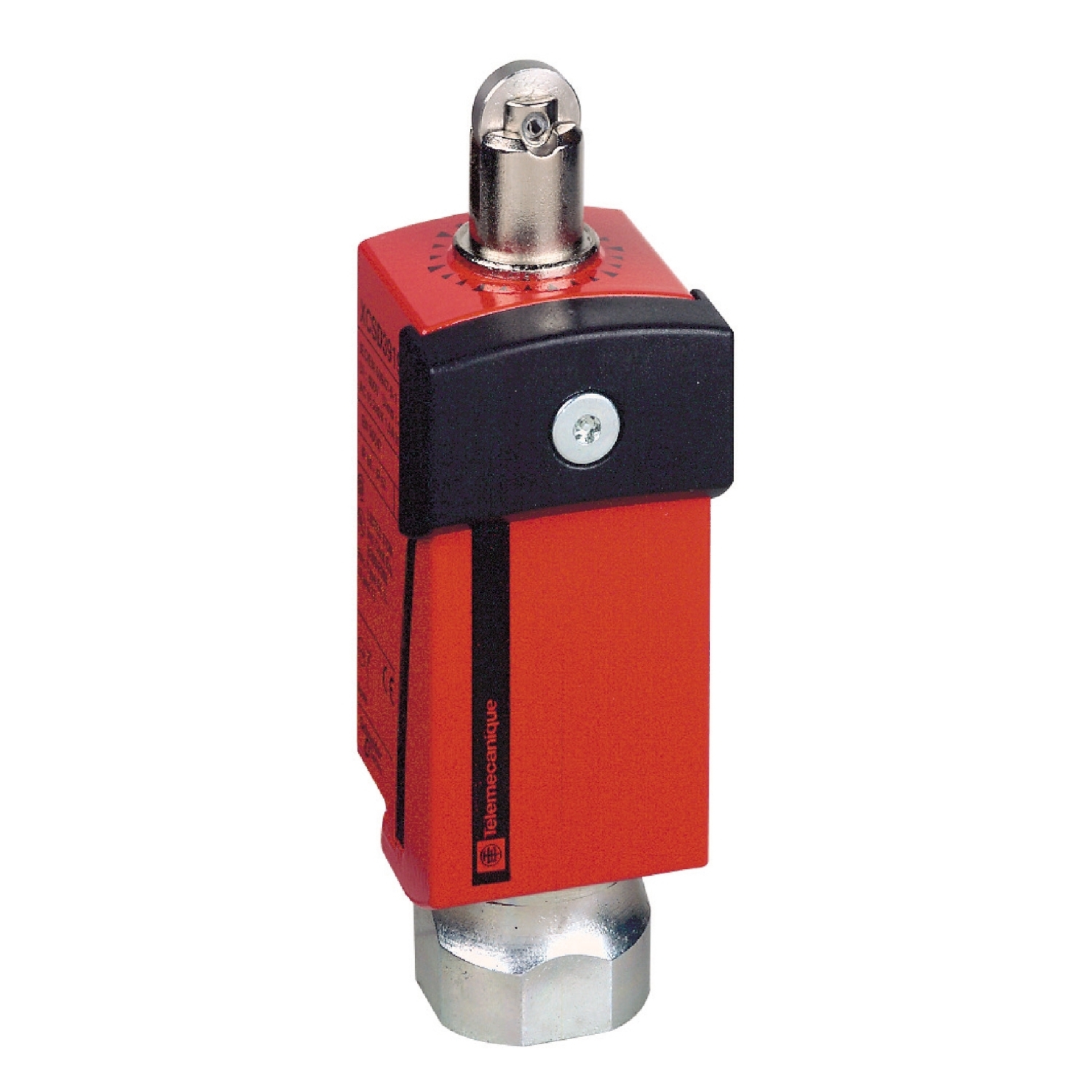

XCSD3902N12 XCSD Fixed Standard Plunger Actuated Limit Switch, 300 V AC, 6 A, Roller Plunger Actuator, 1NO-2NC Contact, 3 Poles

MFR:
Telemecanique Sensors
MFR #:
XCSD3902N12
UPC:
785901786139
Item #:
661626

This XCSD Compact Safety Limit Switch has a steel roller plunger, a Zamak body and head and a 1/2" NPT cable gland entry. It has 1 normally open and 2 normally closed snap action contacts. Its B10D reliability data is 50 000 000. It has IK06 impact resistance and IP66 / IP67 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals & Documentation
Catalog Number XCSD3902N12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Switzerland
Made in USA No
Action Snap action;By 30 Degrees cam
Actuator Steel roller plunger
Amperage Rating 6
Application PLUNGER HEAD
Connection Terminal
Contact Configuration 1 NC + 1 NC + 1 NO
Enclosure Plastic
Number of Poles 3
Special Features Plastic protective cover, secured by 5-lobe socket head safety screw
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA-UL,EN 1088/ISO 14119-UL 508-EN/IEC 60947-5-1-CSA C22.2 NO 14-EN/IEC 60204-1,IK06 EN 50102,IP66 IEC 60529-IP67 IEC 60529,CLASS I NF C 20-030-CLASS I EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858820&lang=en-us
UPC 785901786139
GTIN 03389110240788
Item Type Safety limit switch
Size 1.38
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Operating Temperature -25-70 A Degrees C
Voltage Rating 240VAC
