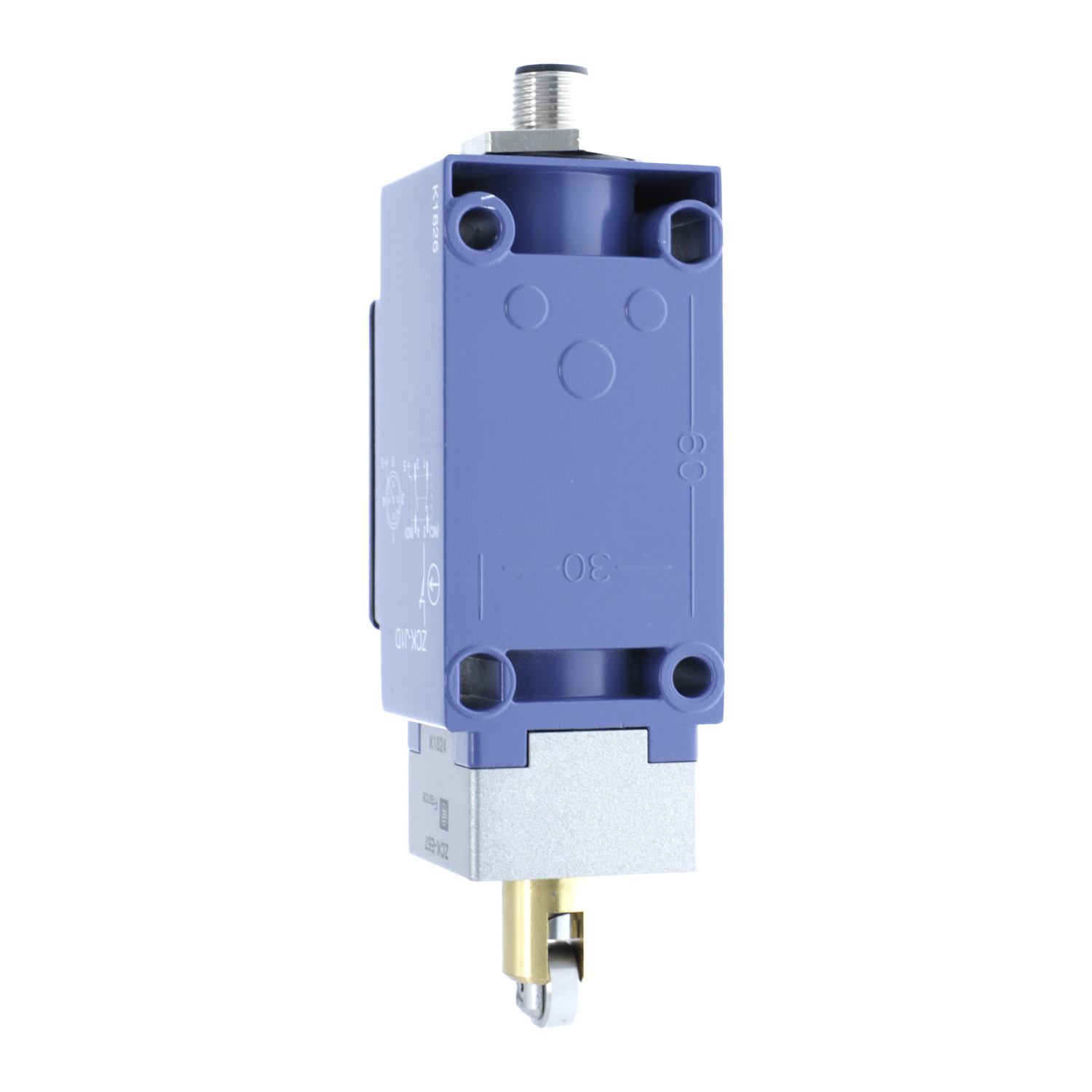

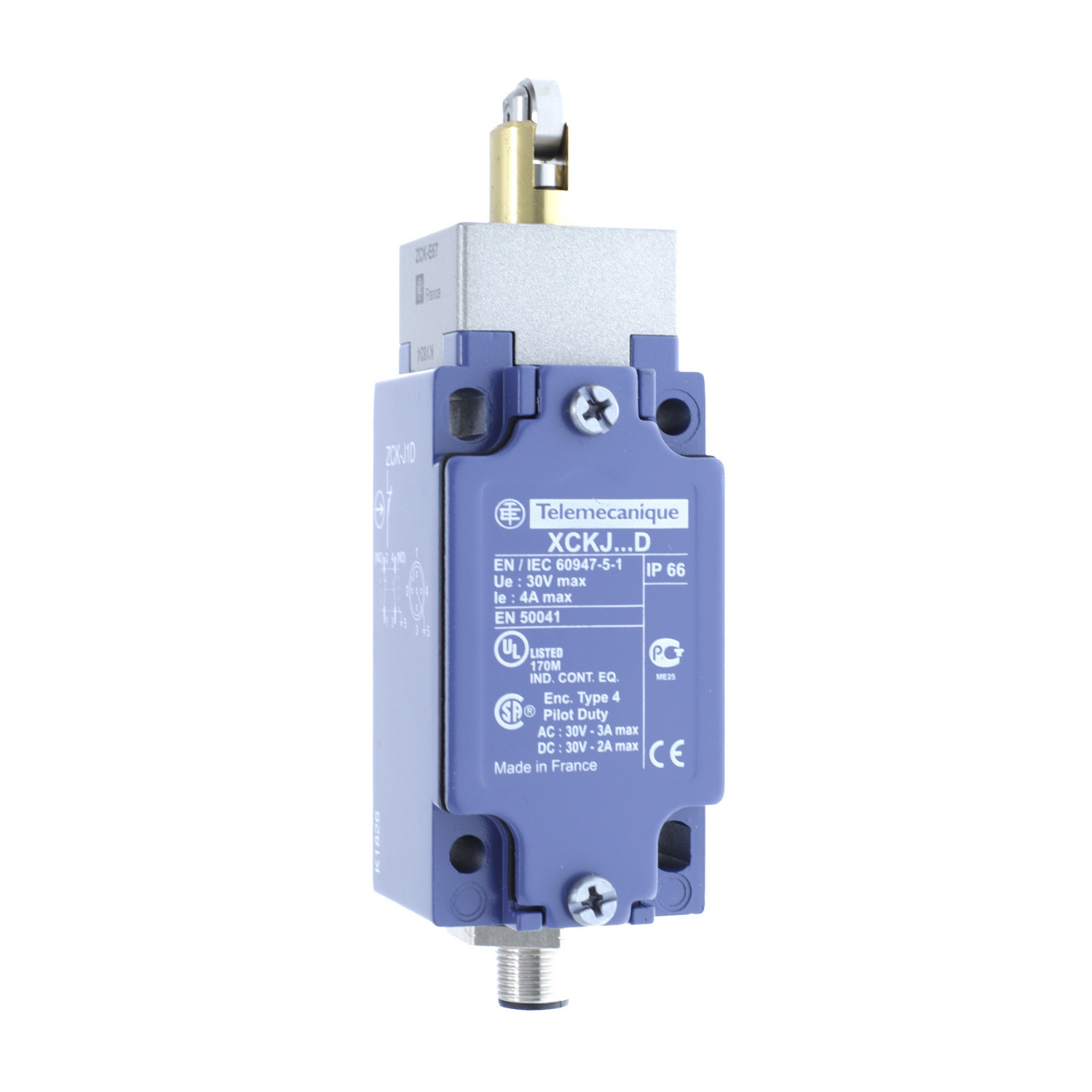

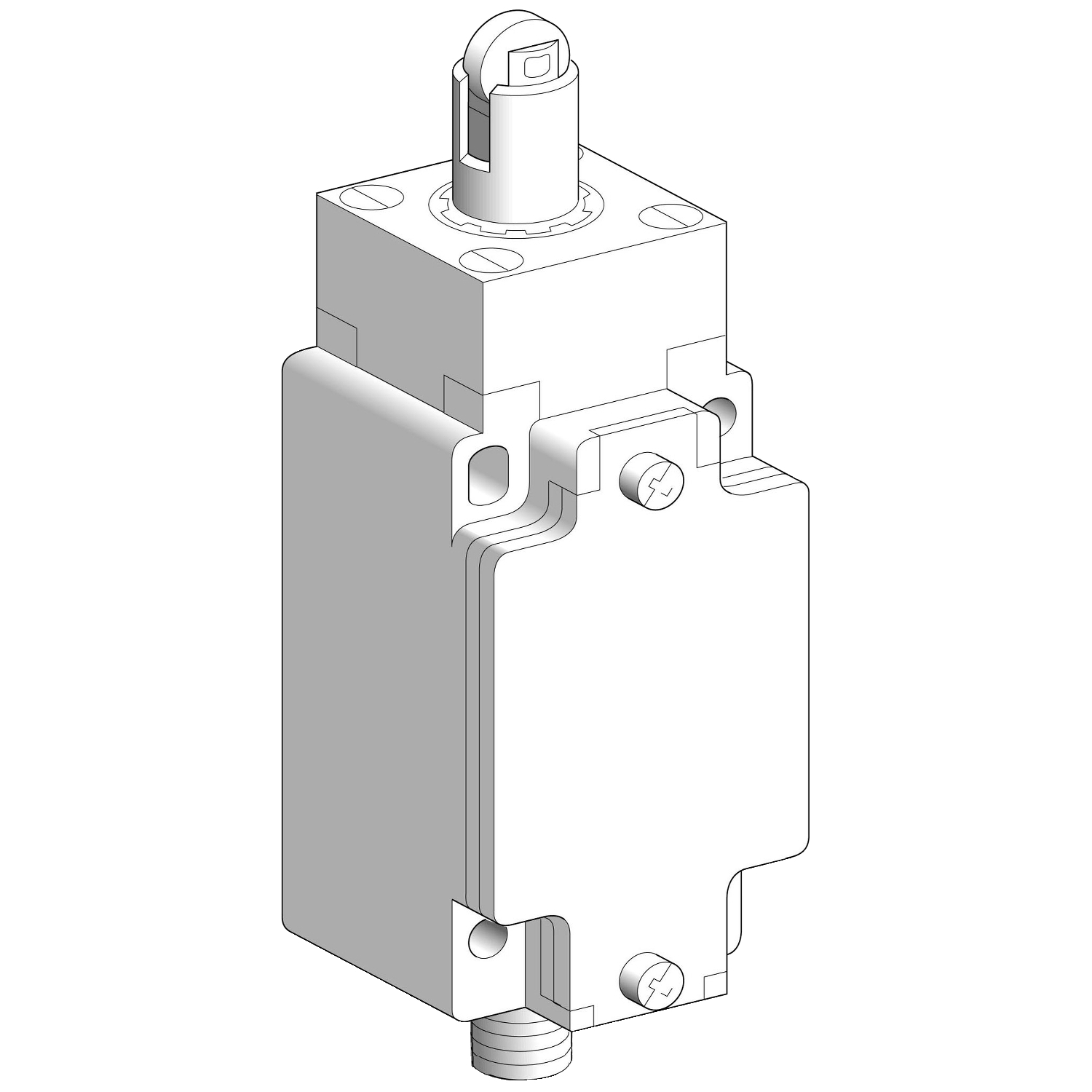

XCKJ167D OsiSense Fixed Heavy Duty Standard Format Limit Switch, 240 V AC/250 V DC, 10 A, Spring Return Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKJ167D
- UPC:
- 785901654841
- Item #:
- 661625
XCKJ167D OsiSense Fixed Heavy Duty Standard Format Limit Switch, 240 V AC/250 V DC, 10 A, Spring Return Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKJ167D
- UPC:
- 785901654841
- Item #:
- 661625
This XCKJ industrial format (EN 50041) limit switch has a steel roller plunger and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a industrial CENELEC EN50041 form A format. It is IP66 and IK07 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV, EAC standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Manuals & Documentation
| Catalog Number | XCKJ167D |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller plunger metal reinforced |
| Amperage Rating | 4 |
| Application | INDUSTRIAL |
| Connection | Male connector M12, 5 pins |
| Contact Configuration | 1 NC + 1 NO |
| Enclosure | NEMA 1/2/4/12 IP 66 |
| Mounting | By The Body |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CCC-CSA-UL,EN 60204-1-UL 508-CSA C22.2 NO 14-IEC 60947-5-1-EN 60947-5-1-IEC 60204-1-CENELEC EN 50041,IK07 EN 50102,IP66 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856330&lang=en-us |
| UPC | 785901654841 |
| GTIN | 03389110388886 |
| Item Type | Limit switch |
| Size | 1.73 |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 0.27 A 50 V, DC-13 EN/IEC 60947-5-1 APPENDIX A-3 A 50 V, AC-15 EN/IEC 60947-5-1 APPENDIX A |
