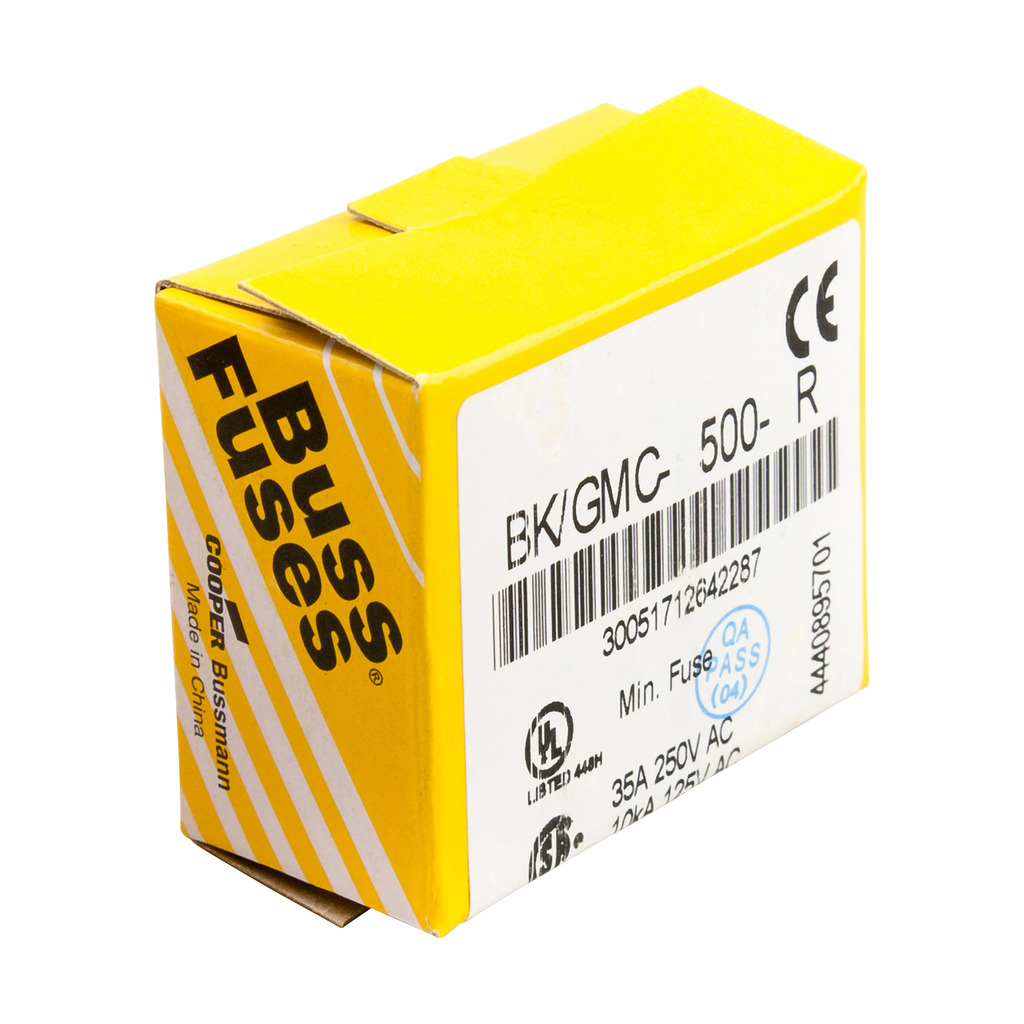

BK/GMC-500-R Electronic Time Delay Fuse, 500 mA, 250 V AC
- MFR:
- Eaton Bussmann
- MFR #:
- BK/GMC-500-R
- UPC:
- 051712642286
- Item #:
- 660004
BK/GMC-500-R Electronic Time Delay Fuse, 500 mA, 250 V AC
- MFR #:
- BK/GMC-500-R
- UPC:
- 051712642286
- Item #:
- 660004
Medium time delay, glass tube 5 mm x 20 mm ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block or fuse clip. Also available with axial leads for thru-hole installation. Eatons GMC medium time delay, glass tube 5mm x 20mm ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Manuals & Documentation
| Catalog Number | BK/GMC-500-R |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 10 kAIC at 125 Vac|35 AIC at 250 Vac |
| Material | Glass tube|Nickel-plated brass end cap construction |
| Response Time | 60 min at 135%, 2 min at 200% |
| Special Features | Low Breaking Capacity, Interrupt Rating 35 Amp at 250 Vac, 10000 Amp at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant, Pa |
| Standard | RoHS Compliant,CE Marked |
| UPC | 051712642286 |
| GTIN | 00051712642286 |
| Item Type | Time-delay fuse |
| Weight UOM | Pounds |
| Size | 5.20 mm Diameter X 20.00 mm Height |
| Voltage Rating | 250 Vac, 32 Vdc (self certified) |
