SQUARE D

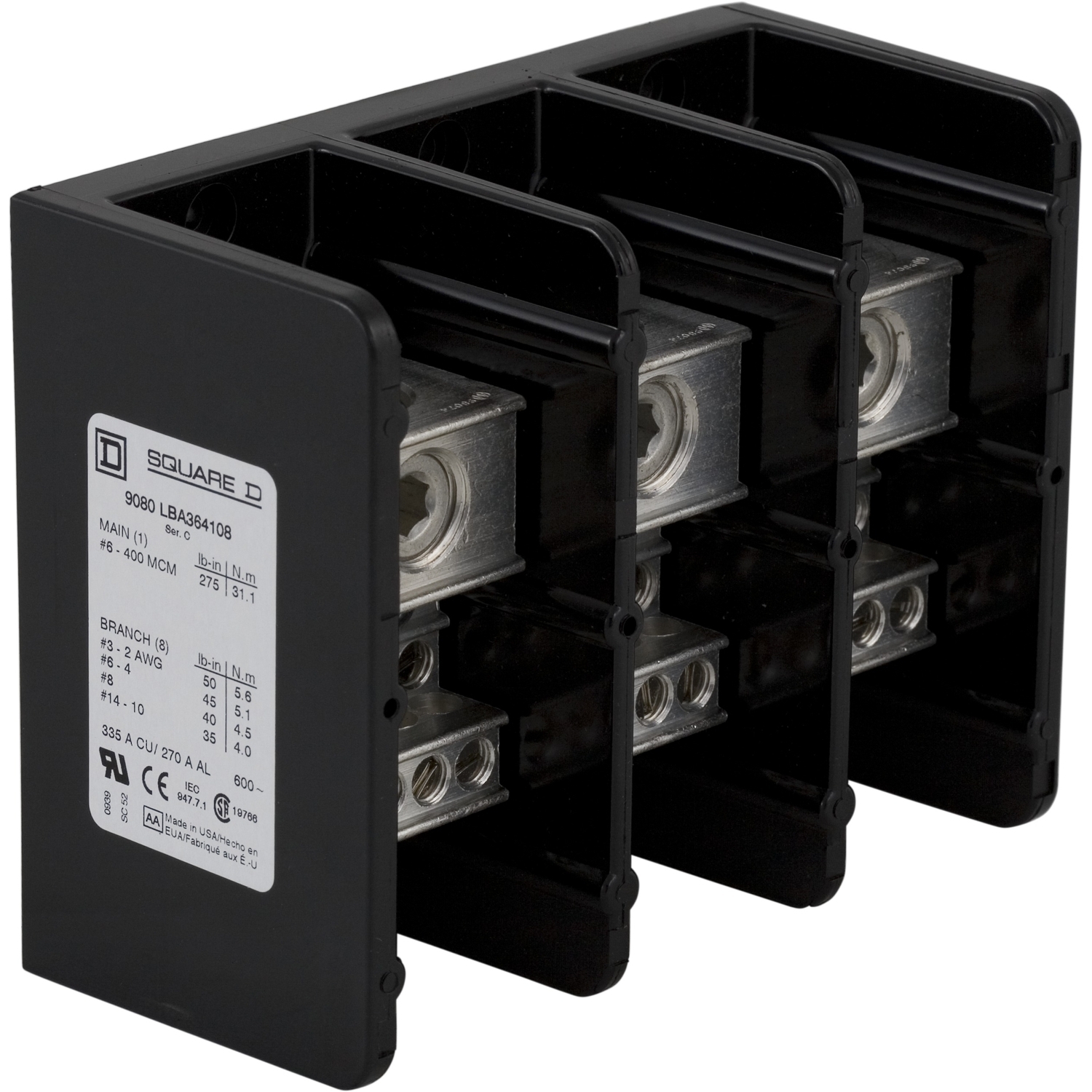

9080LBA364108 TeSys Linergy General Purpose Linergy Standard Multi-Pole Power Distribution Block, 600 V AC/DC, 270/335 A, 3 Poles, (1) 4 AWG to 600 kcmil, (8) 14 to 2 AWG Wire, Phenolic

MFR:
Schneider Electric
MFR #:
9080LBA364108
UPC:
785901097501
Item #:
65370

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and eight lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 600 kcmil copper or aluminum wire. The load side lug is rated to accept one #14 to #2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 335 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Manuals & Documentation
Catalog Number 9080LBA364108
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Tin plated aluminium lugs;Load lug 45 lbf.in AWG 6...AWG 4 copper or aluminium;load lug 40 lbf.in AWG 8 copper or aluminium;load lug 50 lbf.in AWG 2 copper or aluminium;line lug 275 lbf.in AWG 6...400 kcmil copper or aluminium;load lug 35 lbf.in AWG 14...AWG 10 copper or aluminium
Material Phenolic: block
Mounting Surface
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372999&lang=en-us
UPC 785901097501
GTIN 00785901097501
Item Type Power Distribution Block;9080LB43
Width 6.03
Width UOM Inch
Height 4.75
Height UOM Inch
Depth 2.91 IN
