Appleton

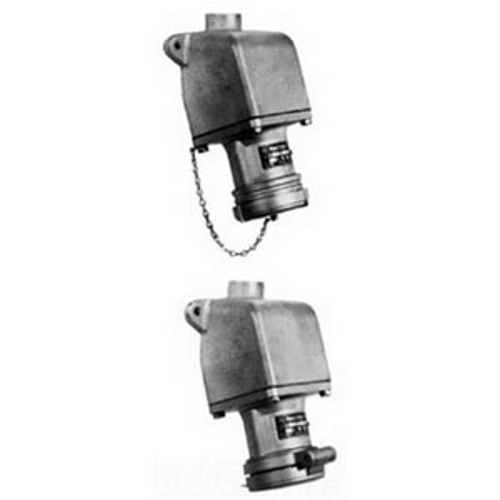

ADRE6023-100 Powertite 1-Phase Grounding Style 2 Pin and Sleeve Receptacle With AEE Mounting Box, 600 V AC/250 V DC, 60 A, 3 Poles, 2 Wires

MFR:
Appleton Electric
MFR #:
ADRE6023-100
UPC:
781381158596
Item #:
6508

Powertite Grounding Style 2 Receptacle With AEE Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC,

Manuals & Documentation
Catalog Number ADRE6023-100
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 60
Application For ACP6023BC Metallic Clamping Ring Plug
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Surface
NEMA Rating 3, 3R, 4, 4X
Number of Poles 3
Number of Wires 2
Phase 1
Special Features Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 5/16 IN; Weatherproof spring door, brass with beryllium copper springs
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381158596
GTIN 00781381158596
Item Type Grounding Style 2 Receptacle With AEE Mounting Box
Temperature Rating -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
