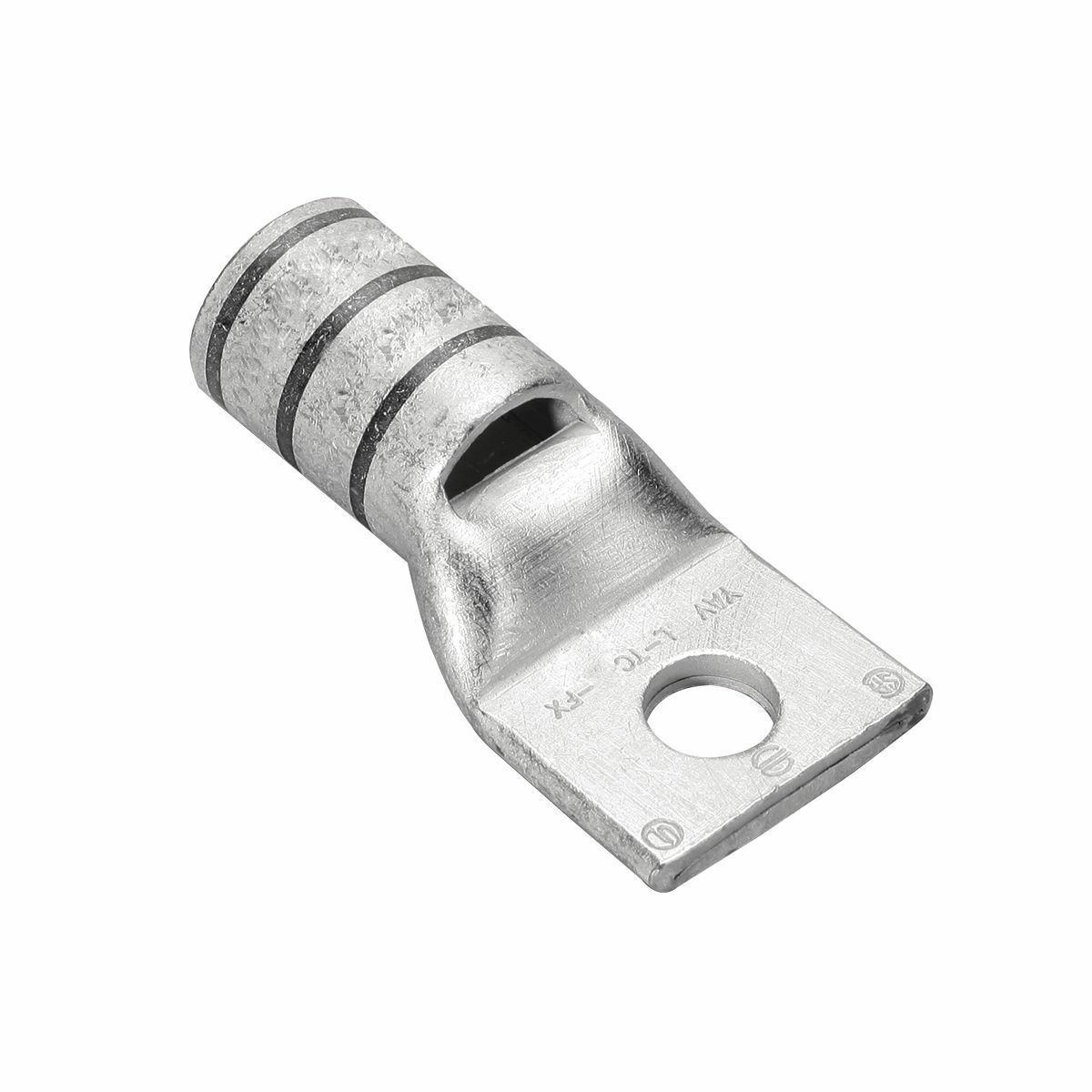

YAV4CLTC12FX 1-Hole Compression Lug Connector With Inspection Window, 4 AWG Stranded Copper Conductor, Die Code: 8, 1/2 in Stud, Tin Electro Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAV4CLTC12FX
- UPC:
- 781810022771
- Item #:
- 650137
YAV4CLTC12FX 1-Hole Compression Lug Connector With Inspection Window, 4 AWG Stranded Copper Conductor, Die Code: 8, 1/2 in Stud, Tin Electro Plated Copper
- MFR #:
- YAV4CLTC12FX
- UPC:
- 781810022771
- Item #:
- 650137
Manuals & Documentation
| Catalog Number | YAV4CLTC12FX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Die Index: 8, Wire Strip Length: 1/2 IN, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT Die, (1), Y46 Tool, U4CRT Die With PUADP-1 Adapter, (1), Color Code: Gray, Conductor Type: Commercial Stranded Copper, Flexible Copper, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1), Y1MRTC Tool, (2) |
| Standard | UL 486A-486B |
| UPC | 781810022771 |
| GTIN | 00781810022771 |
| Item Type | YAV-L-FX, Standard Barrel |
| Voltage Rating | 35 |
