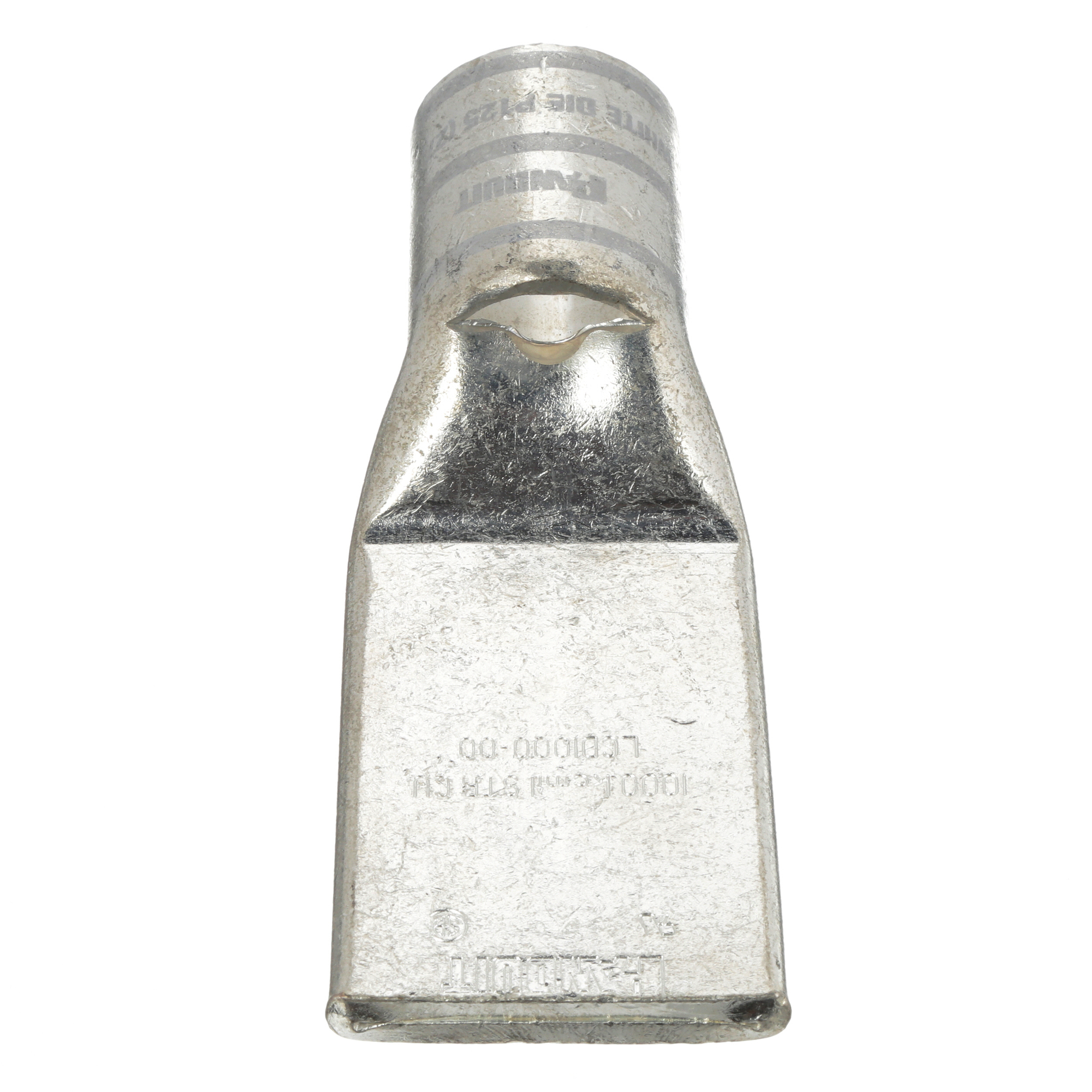

LCD1000-00-3 Pan-Lug Compression Connector Lug, 1000 kcmil Copper Conductor, Die Code: P125, Copper
- MFR:
- Panduit
- MFR #:
- LCD1000-00-3
- UPC:
- 074983901135
- Item #:
- 649198
LCD1000-00-3 Pan-Lug Compression Connector Lug, 1000 kcmil Copper Conductor, Die Code: P125, Copper
- MFR #:
- LCD1000-00-3
- UPC:
- 074983901135
- Item #:
- 649198
The LCD1000-00-3 Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plated material helps to inhibit corrosion. UL Listed and CSA Certified up to 35kV and temperature rated to 90C.
Manuals & Documentation
| Catalog Number | LCD1000-00-3 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | White |
| Material | Tin-Plated Copper |
| Number of Holes | 0 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | CSA certified, UL Recognized |
| UPC | 074983901135 |
| GTIN | 00074983901135 |
| Item Type | Compression Lug |
| Size | 1000 kcmil Code |
