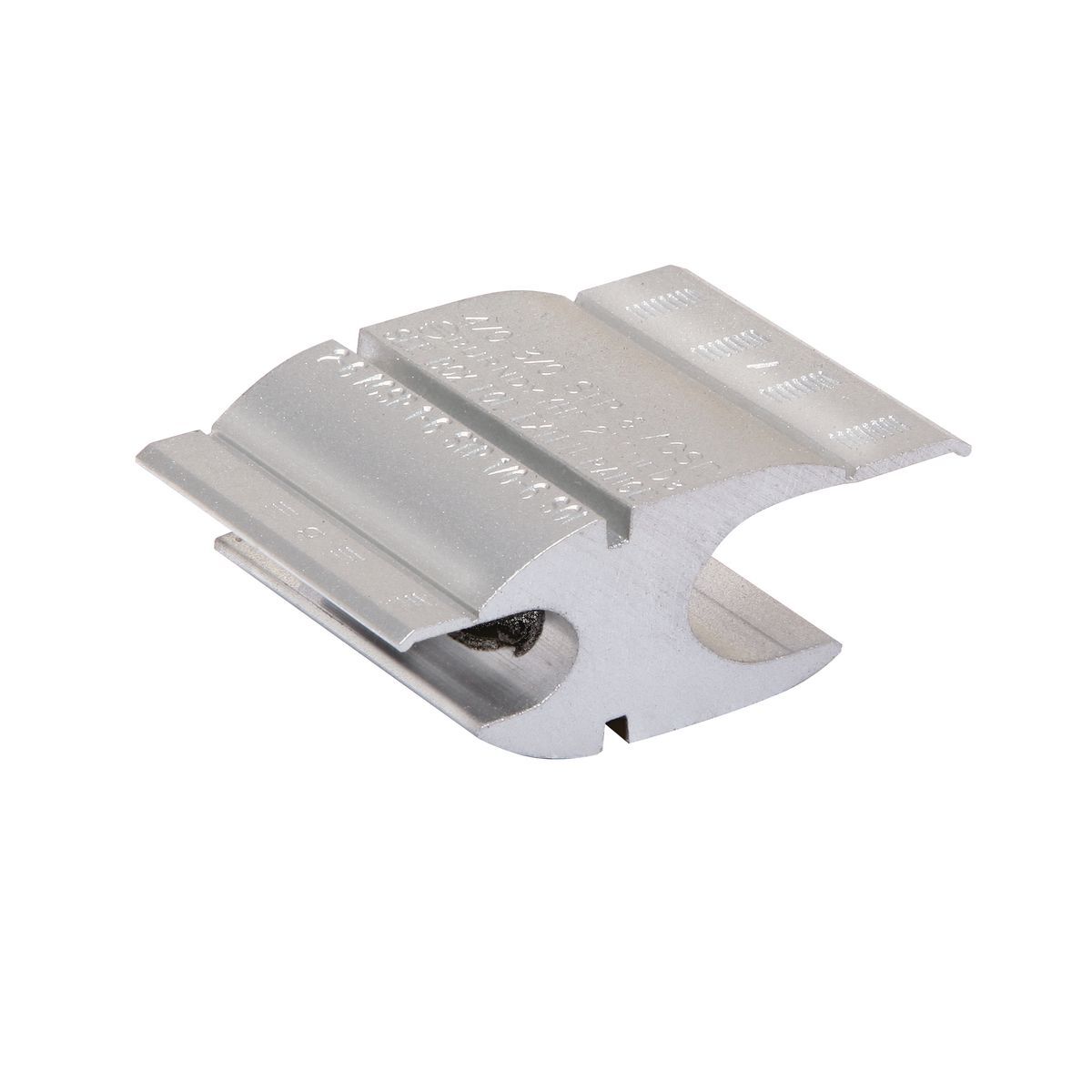

YHN550 Type YHN Overhead Compression Line Tap Connector, Figure H Shape, 250 to 500 kcmil Main/Run, 4/0 to 2/0 AWG Tap, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YHN550
- UPC:
- 781810139554
- Item #:
- 648204
YHN550 Type YHN Overhead Compression Line Tap Connector, Figure H Shape, 250 to 500 kcmil Main/Run, 4/0 to 2/0 AWG Tap, Aluminum
- MFR #:
- YHN550
- UPC:
- 781810139554
- Item #:
- 648204
Manuals & Documentation
| Catalog Number | YHN550 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Copper, Aluminum Or ACSR And Compact Conductors |
| Material | Aluminum |
| Special Features | Features: Wide Range, Universal And Reversible Figure H Shaped Aluminum Connector, Conductors Are Separated By The Shape Of The Connector, Bendable Tabs Secure Both Run And Tap Conductors Freeing The Linemans Hands To Work With The Installation Tool, Massive Aluminum Design Minimizes Corrosion Due To Galvanic Corrosion, Prefilled With PENETROX Joint Compound And Individually Packaged, Conductor Ranges And Tooling Clearly Printed On Connector And Package, Installation Tool: Mechanical Or Hydraulic Installation Tooling, Die Index: N Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U-N Die, (2), Y45 Tool, S-N Die, (2), Y46 Tool, P-N Die, (2), Cable Diameter Range (tap): 0.41 - 0.505 IN, Cable Diameter Range (run): 0.573 - 0.815 IN, Conductor Size (run - Range): 250 - 500 KCMIL, Conductor Type: Run: Aluminum Stranded, Copper Stranded, Tap: Aluminum Stranded, Copper Stranded, Shape: H, Conductor Size (tap Range): 2/0 - 4/0 AWG |
| UPC | 781810139554 |
| GTIN | 00781810139554 |
| Item Type | YHN |
