SQUARE D

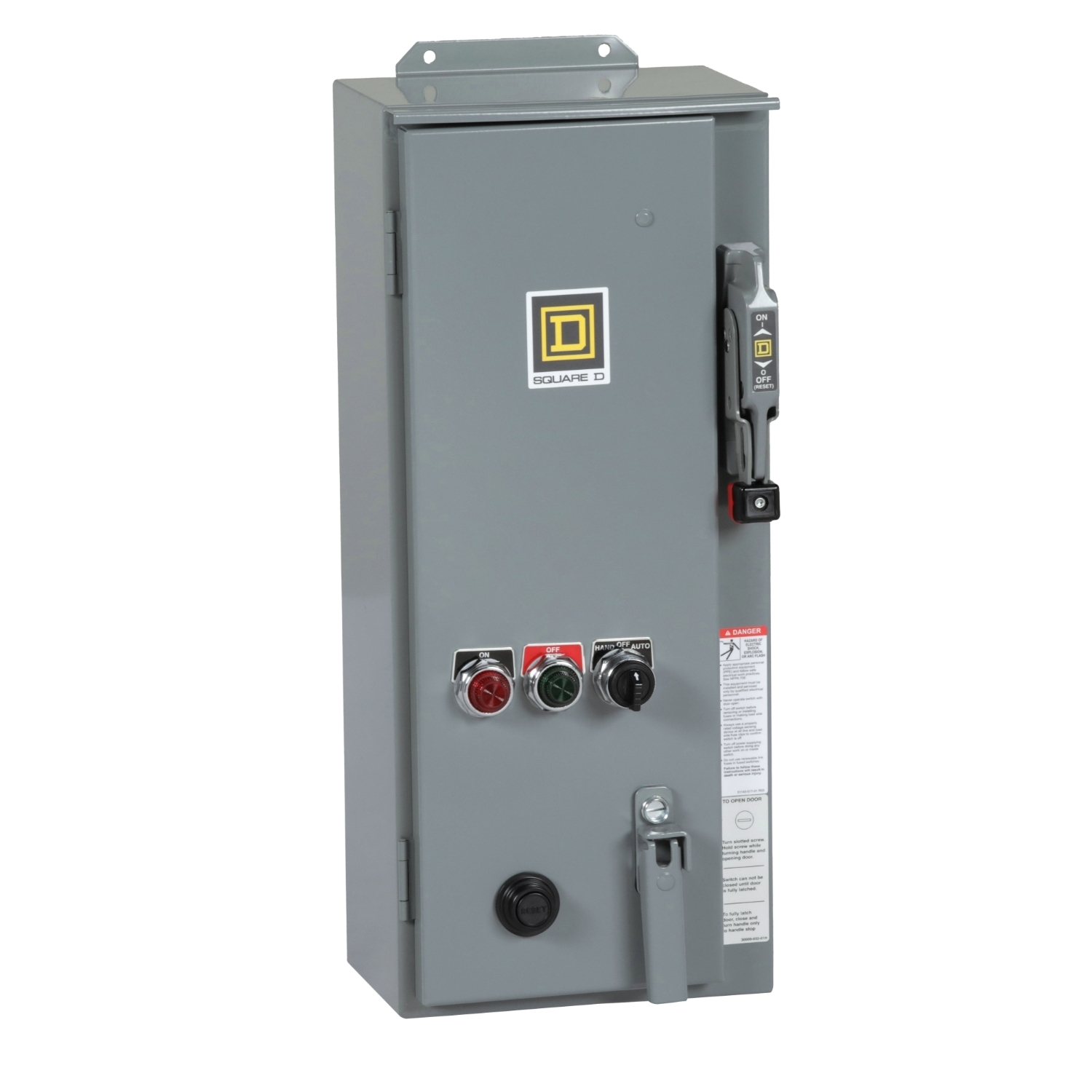

8538SCASP4 Type S Combination Magnetic Starter With Fusible Disconnect Switch, 110 V AC at 50 Hz/120 V AC at 60 Hz V Coil, 3 Poles, NEMA 12 Enclosure

MFR:
Schneider Electric
MFR #:
8538SCASP4
UPC:
785901169536
Item #:
648069

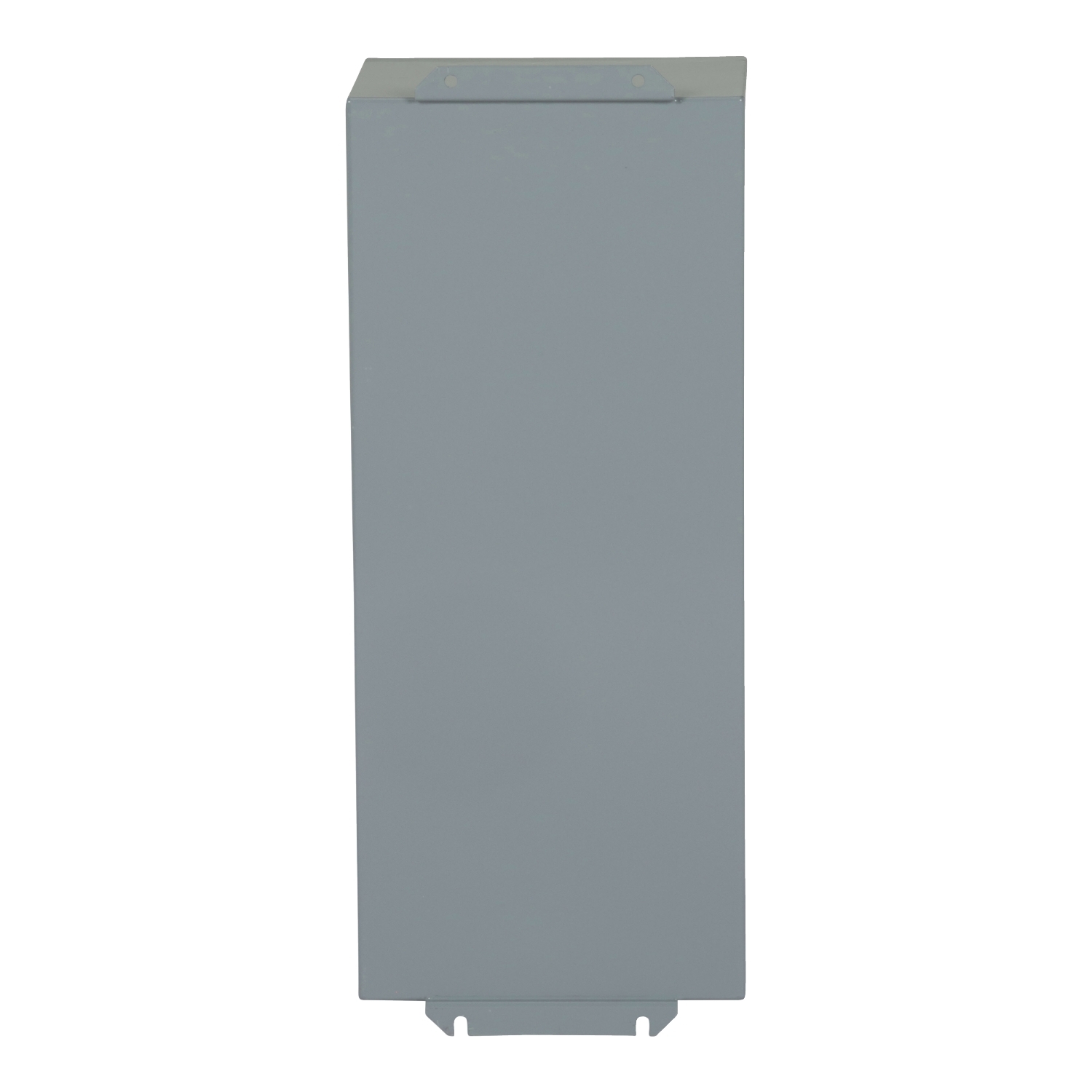

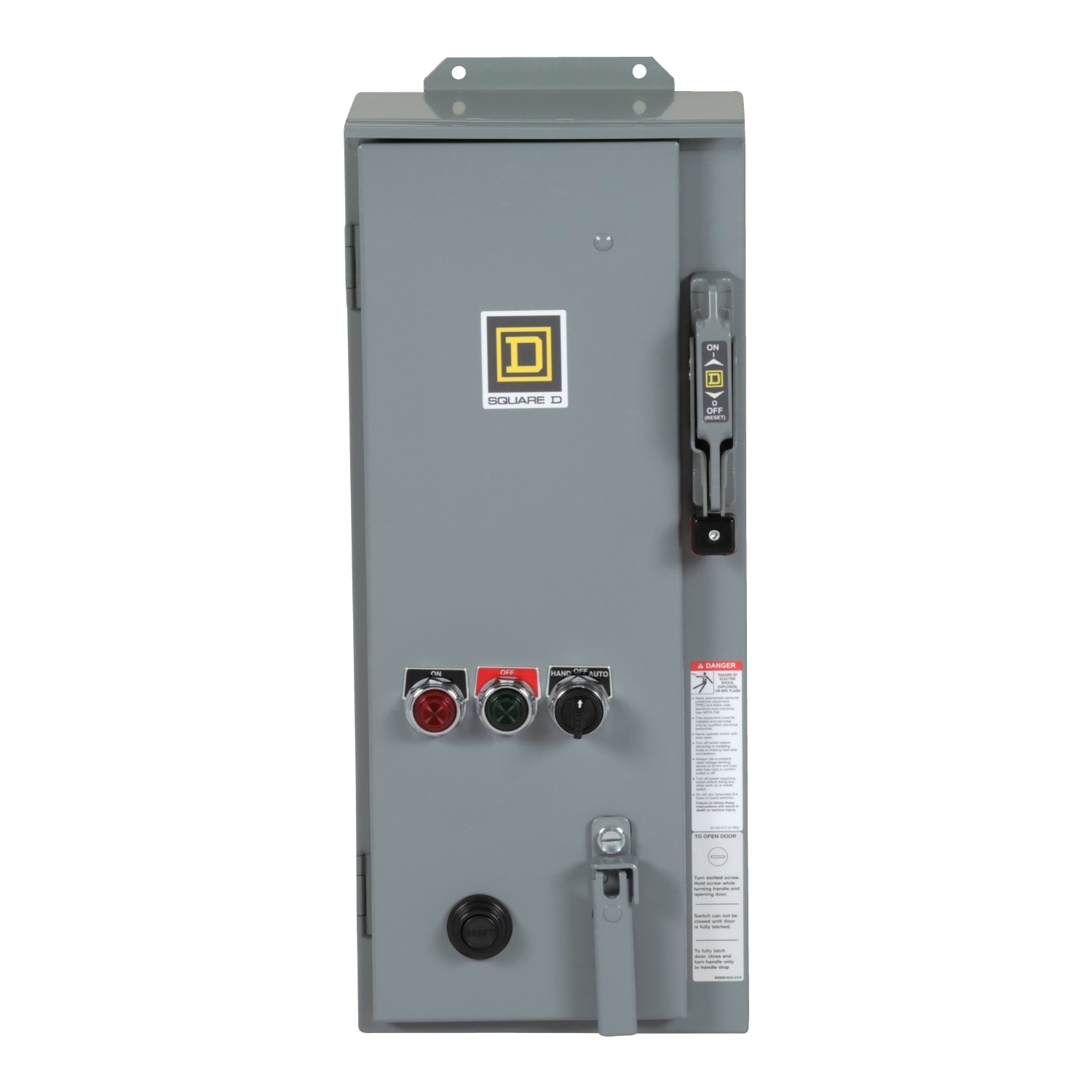

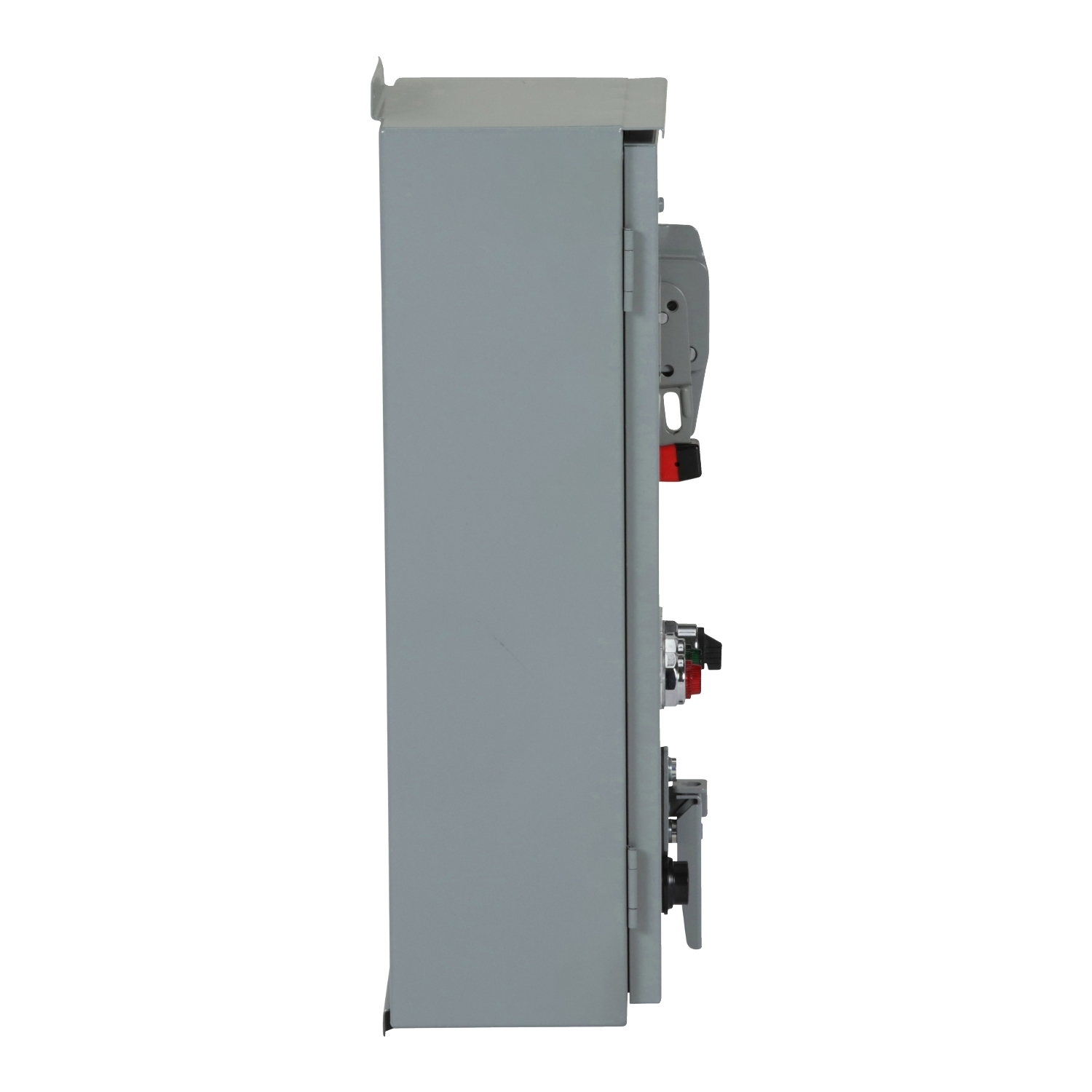

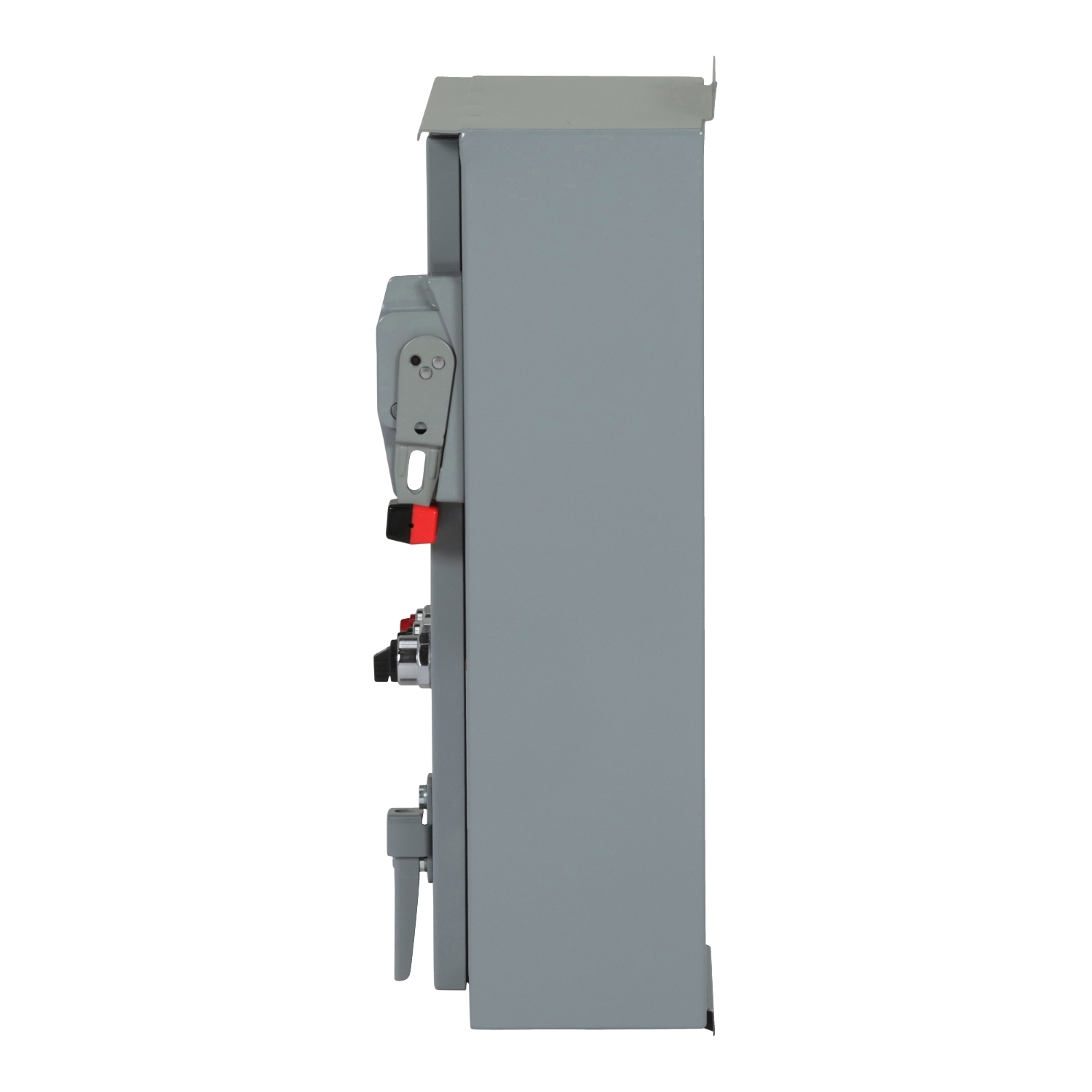

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of up to 5 HP at 208 and 240 VAC poly phase. Combination starter has 30 ampere Class H and K fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a Motor Logic solid state overload relay to detect over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 24.0 inches tall, 8.34 inches wide and 9.5 inches deep. A wide variety of accessories are available for Type S starters. This combination starters is supplied with a HOA selector switch, a red and green pilot light, auxiliary contacts and an interlock on disconnect. Type S combination starters are UL listed and CSA certified.

Manuals & Documentation
Catalog Number 8538SCASP4
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
UPC 785901169536
GTIN 00785901169536
Width 8.34
Width UOM Inch
Height 24.0
Height UOM Inch
Depth 9.5 IN
