SCHNEIDER ELECTRIC

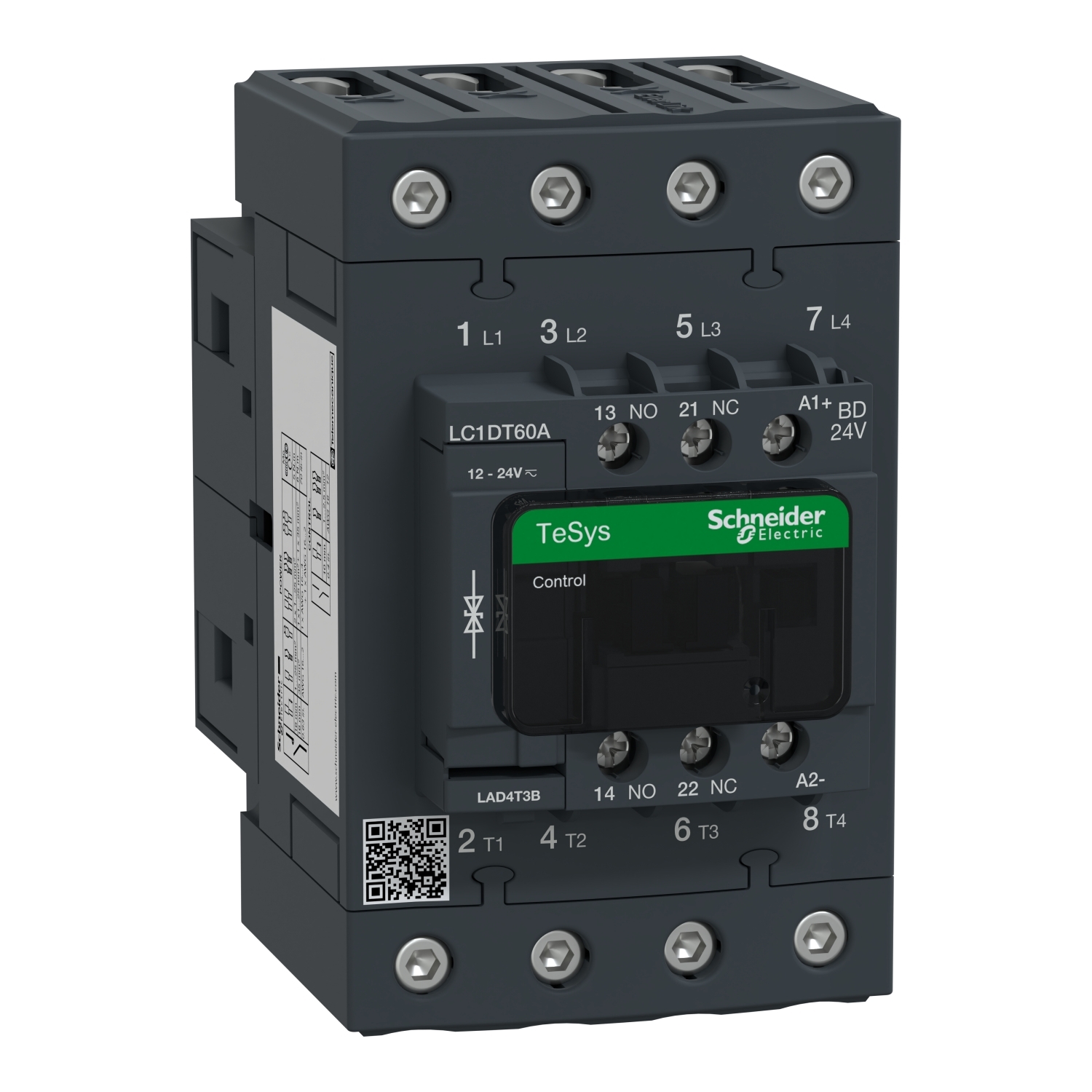

LC1DT60ABD TeSys D Contactor With Front Cover, 24 V DC V Coil, 60 A, 4NO Contact, 4 Poles

MFR:
Schneider Electric
MFR #:
LC1DT60ABD
Item #:
647330

TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 60A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Power contacts have a 60A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.76 inches wide and 4.72 inches deep. It weighs 2.57 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Manuals & Documentation
Catalog Number LC1DT60ABD
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Resistive load
Coil Voltage 24 V DC
Connection Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cabl
Contact Configuration 1 NO + 1 NC;4 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Mounting Rail Plate
Special Features Built-in bidirectional peak limiting diode suppressor
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=8694881&lang=en-us
GTIN 03389119409353
Item Type Contactor
Cross Reference Products Rockwell 100C12DJ400|Rockwell 100SC30DJ14C|Rockwell AL40301081|Schneider LP1D40004BD|Schneider LP1D40004BW|Schneider LP1D40004ZD|Schneider LP1D404F|Telemecan LP1D40004BD
