Appleton

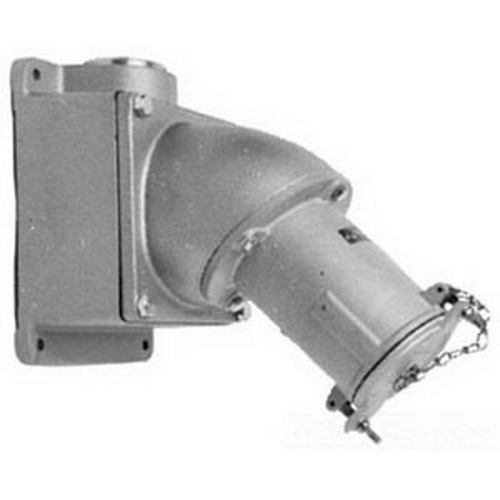

Powertite; Grounding Style 1 Receptacle with AJA Mounting Box; 200 Amp, 600 Volt AC/250 Volt DC, 4-Pole, 4-Wire, Pressure Wire Terminal, 2 Inch Hub

MFR:
Appleton Electric
MFR #:
AJA20044-200
UPC:
781381131087
Item #:
647080

Powertite Grounding Style 1 Receptacle With AJA Mounting Box, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Cop

Manuals & Documentation
Catalog Number AJA20044-200
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 200
Application For AP20044CD Plug
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Surface
NEMA Rating 3, 3R, 4, 4X
Number of Poles 4
Number of Wires 4
Phase 3
Special Features Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 11/16 IN; Weatherproof spring door, raintight clamp cover
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381131087
GTIN 00781381131087
Item Type Grounding Style 1 Receptacle With AJA Mounting Box
Temperature Rating -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 2/0 AWG - 250 MCM
