SQUARE D

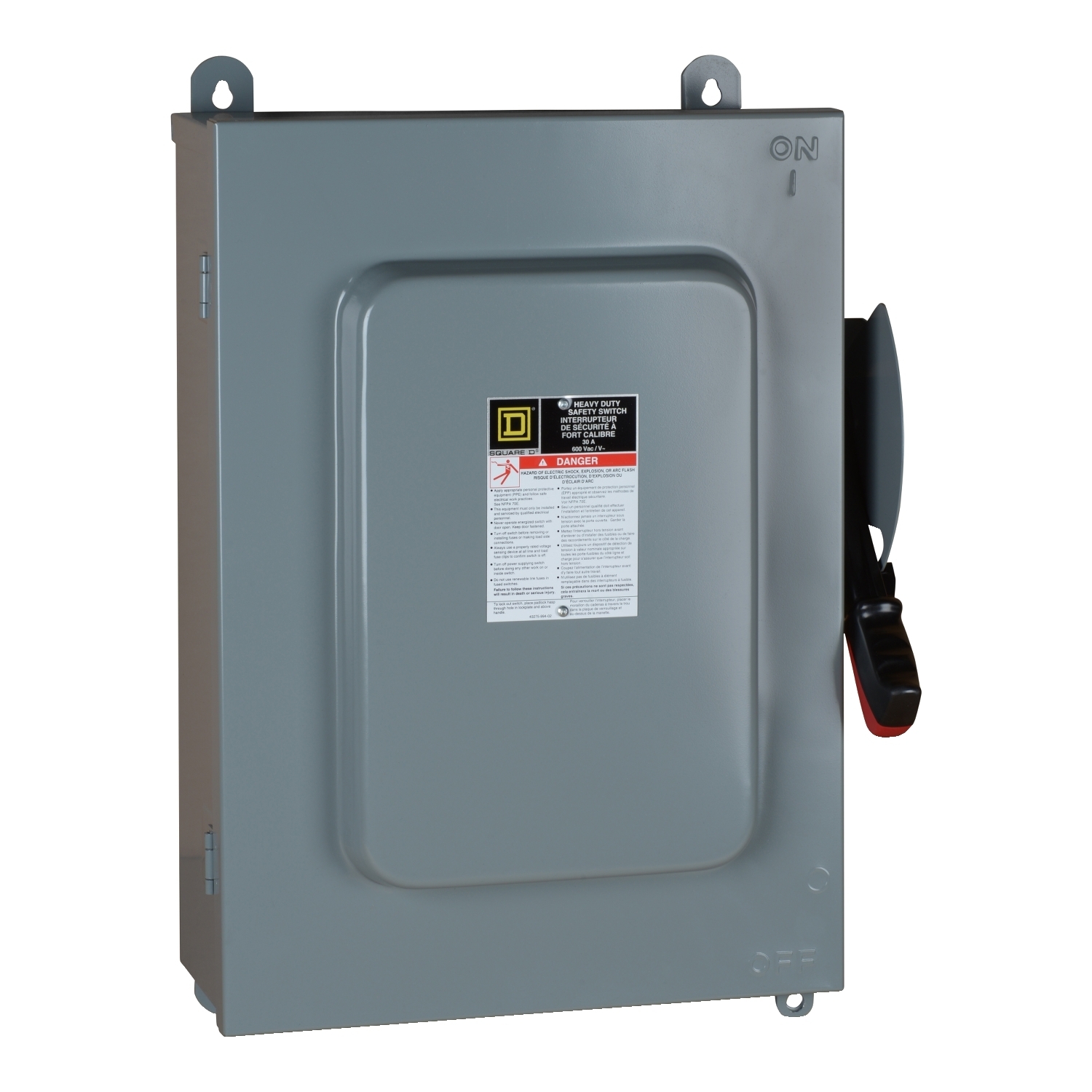

HU661AWK Non-Fusible Heavy Duty Disconnect Switch, 600 V AC/DC, 30 A, 30 hp, 6PST Contact, 6 Poles

MFR:
Schneider Electric
MFR #:
HU661AWK
UPC:
785901868354
Item #:
64671

The Square D by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 30A and has a NEMA 3R/12 degree of protection. This non-fusible disconnect has a short circuit rating of 200kA@600VAC. This safety switch has a galvannealed steel enclosure and is surface mounted. This product os compatable with H or K, R, J or L fuses. The acceptable AWG gauge for this product is AWG 12 / AWG 6, aluminiumand has a tightening torque of 45-45 lbf.in. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 20.5 in (H), 16.13 in (W), 6.8 in (D).

Manuals & Documentation
Catalog Number HU661AWK
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application Heavy application
Connection Lugs
Mounting Surface
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365691&lang=en-us
UPC 785901868354
GTIN 00785901868354
Item Type Non-fusible disconnect;Single Throw Safety Switch
Width 16.13
Width UOM Inch
Height 20.5
Height UOM Inch
Depth 6.8 IN
