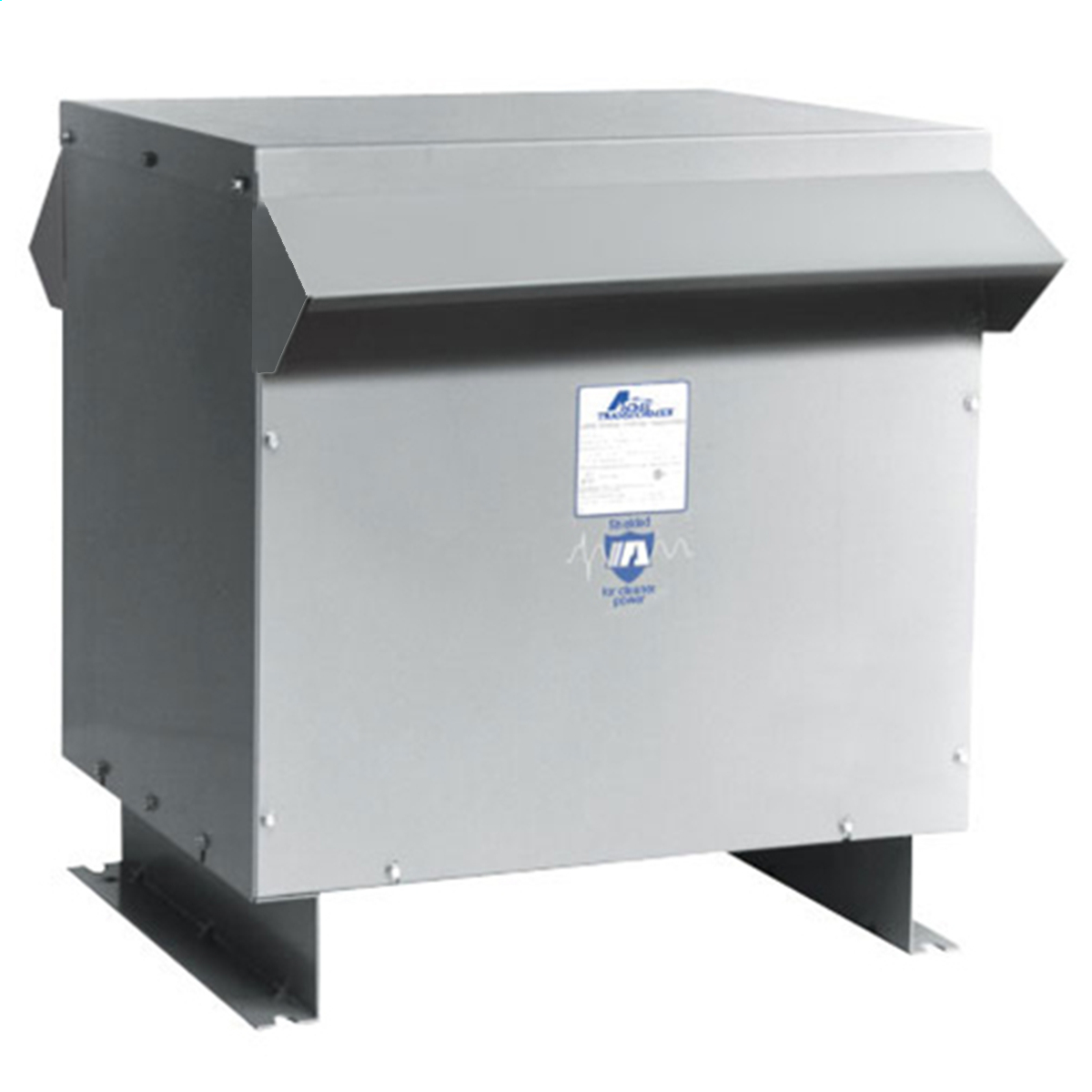

T3300K0013B Ventilated Dry Distribution Transformer, 480 Delta V AC Primary, 208Y/120 VAC Secondary, 300 kVA Power Rating, 60 Hz, 3 Phase
- MFR:
- Acme Electric, a Hubbell affiliate
- MFR #:
- T3300K0013B
- UPC:
- 047503092453
- Item #:
- 646406
T3300K0013B Ventilated Dry Distribution Transformer, 480 Delta V AC Primary, 208Y/120 VAC Secondary, 300 kVA Power Rating, 60 Hz, 3 Phase
- MFR #:
- T3300K0013B
- UPC:
- 047503092453
- Item #:
- 646406
Manuals & Documentation
| Catalog Number | T3300K0013B |
| Manufacturer | Acme Electric, a Hubbell affiliate |
| Brand | Acme Electric |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Dry Type Distribution Transformer |
| Enclosure | NEMA 3R |
| Frequency Rating | 60 HZ |
| Mounting | Floor |
| Number of Taps | Two 2-1/2% (+) & Four 2-1/2% (-) |
| Primary Voltage | 480D V |
| Secondary Voltage | 208Y/120 V |
| Special Features | Meet DOE 2016 efficiency requirements |
| Standard | UL 1561, UL File Number E12547, UL Control Number 542B, UL Insulation Number C3222, CSA Certified, OSHA Compliant, ANSI, IEEE |
| UPC | 047503092453 |
| GTIN | 00047503092453 |
| Item Type | Isolation transformer |
| Length | 35.5 |
| Length UOM | Inch |
| Width | 39.5 |
| Width UOM | Inch |
| Height | 45.6 |
| Height UOM | Inch |
| Temperature Rating | 150 Degrees C |
