Eaton Bussmann Series

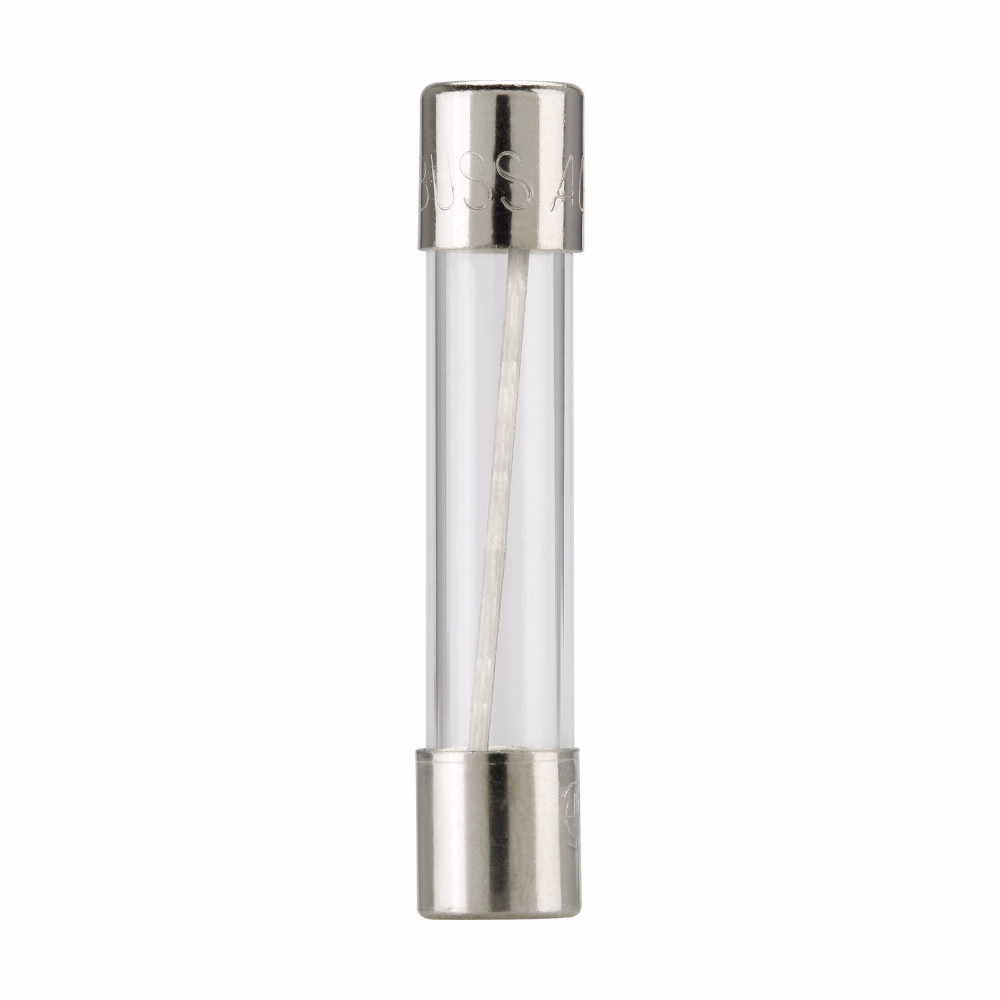

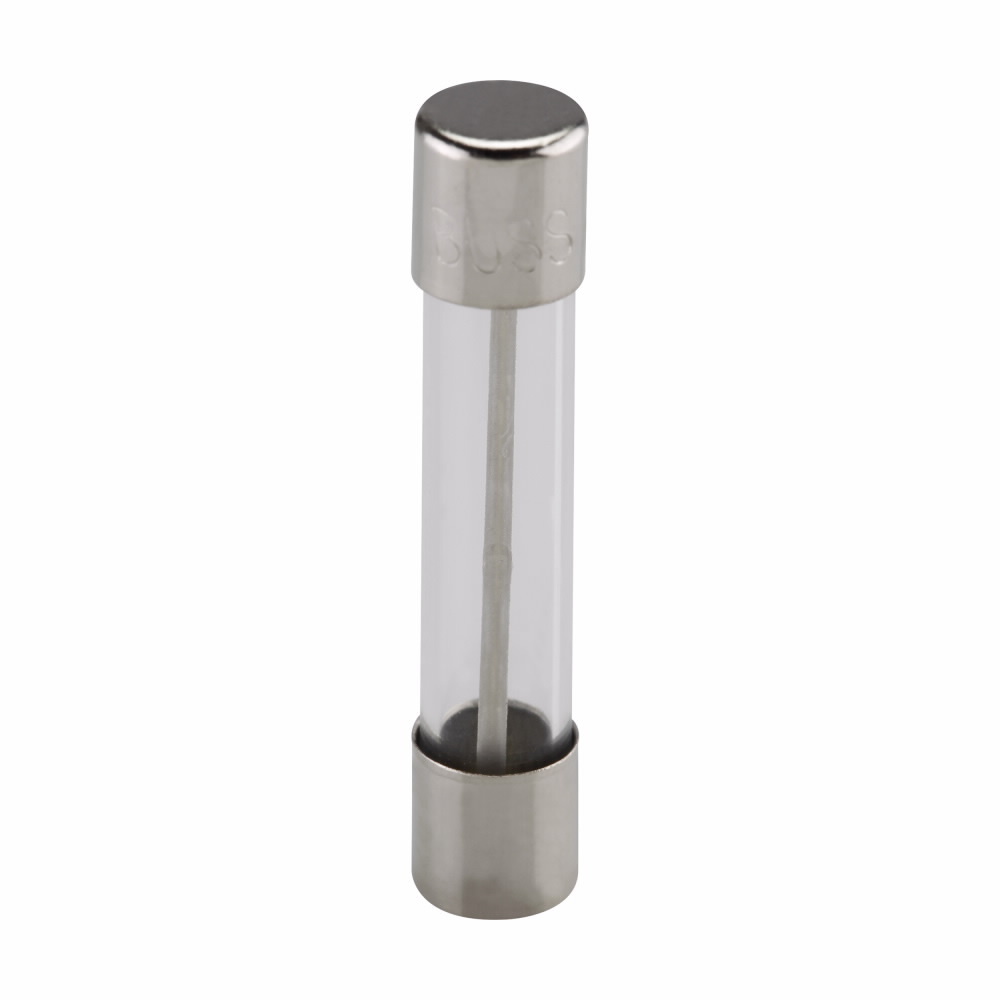

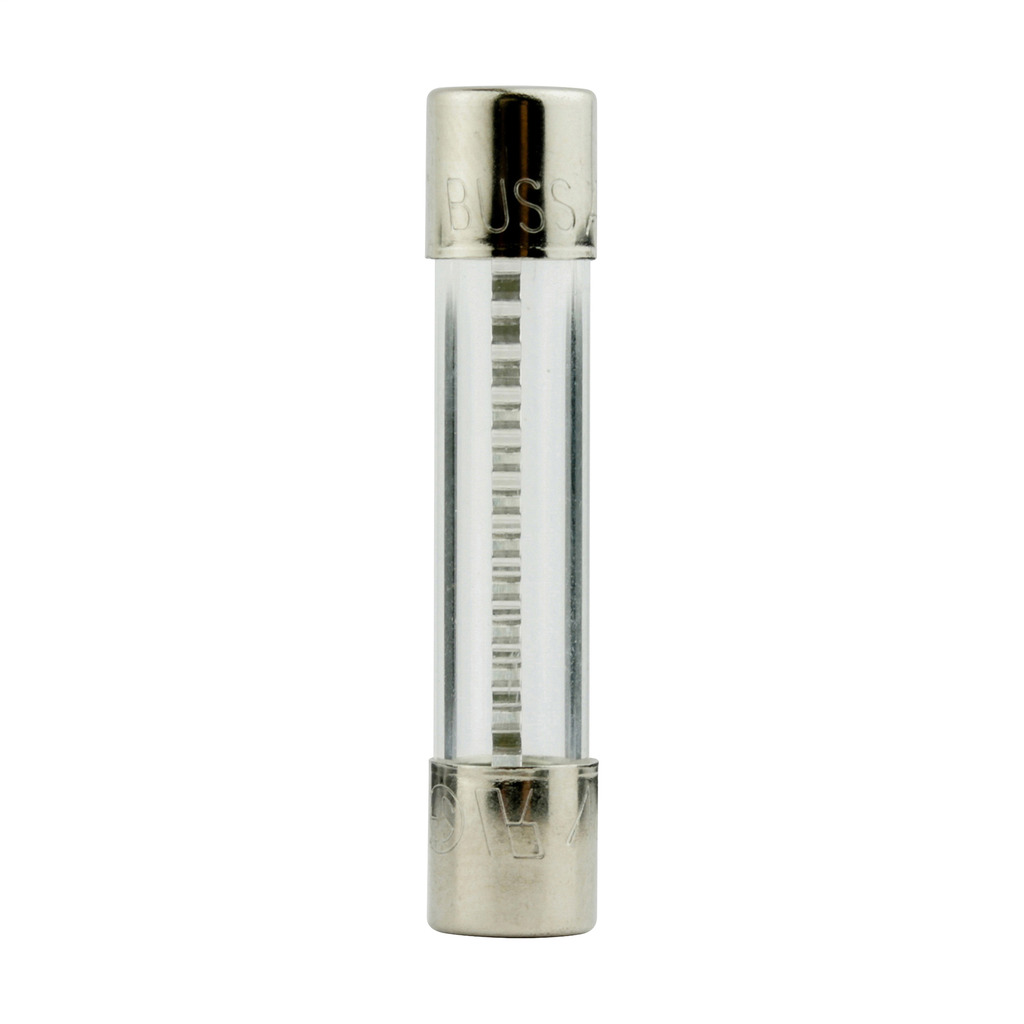

Eaton AGC series Fast-acting fuse 40A, 32 Vac, 32 Vdc (self certified), AGC-40-R

MFR:
Eaton Bussmann
MFR #:
AGC-40-R
UPC:
051712504270
Item #:
645684

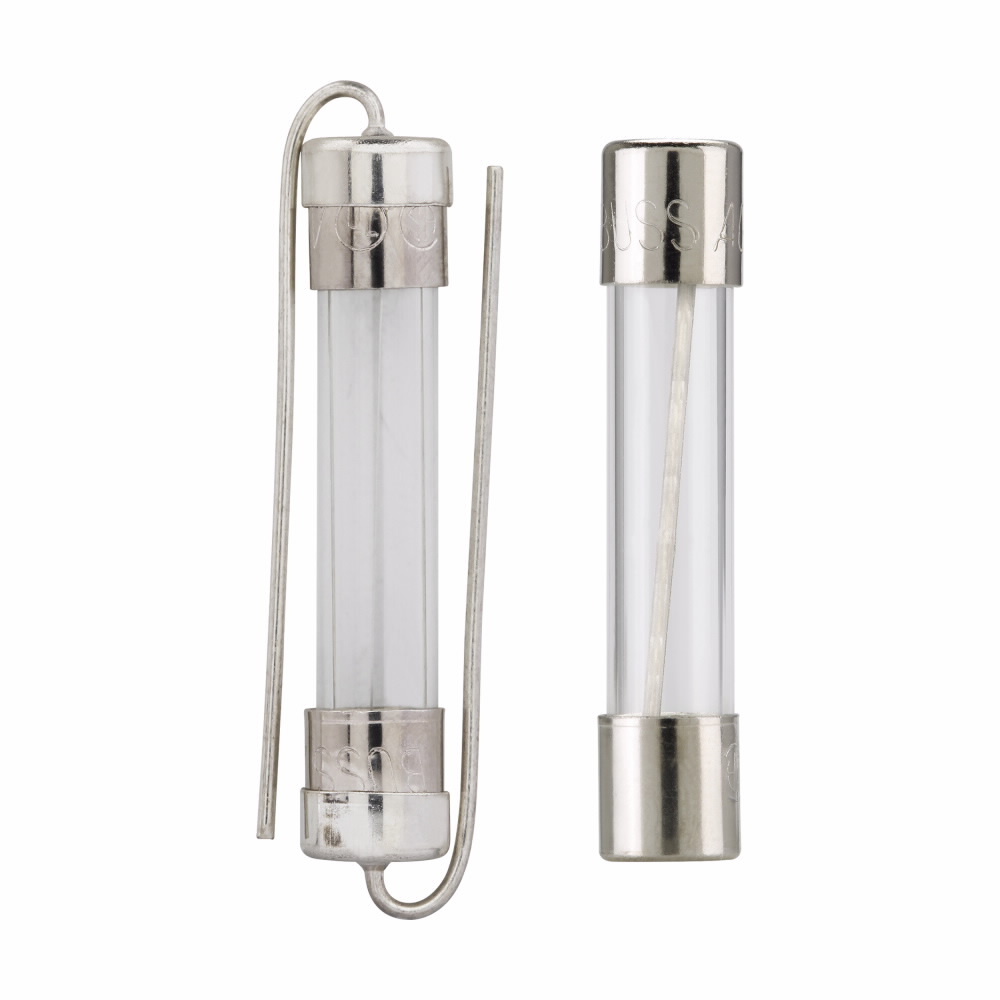

Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC fast-acting, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.

Manuals & Documentation
Catalog Number AGC-40-R
Manufacturer Eaton Bussmann
Brand Eaton Bussmann Series
Country of Origin Taiwan, Province Of China
Made in USA No
Amperage Rating 40
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Ferrule end x ferrule end
Interrupt Rating 1 kAIC at 32 Vac
Material Glass tube|Nickel-plated brass end cap construction
Response Time 60 min at 135%, 120 sec at 200%
Special Features Interrupt Rating 80 Amp at 32 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant
Standard CE Marked,RoHS Compliant
UPC 051712504270
GTIN 00051712504270
Item Type Fast-acting glass tube fuse
Weight UOM Pounds
Size 1/4 In Diameter X 1-1/4 In Length
Voltage Rating 32 Vac, 32 Vdc (self certified)
