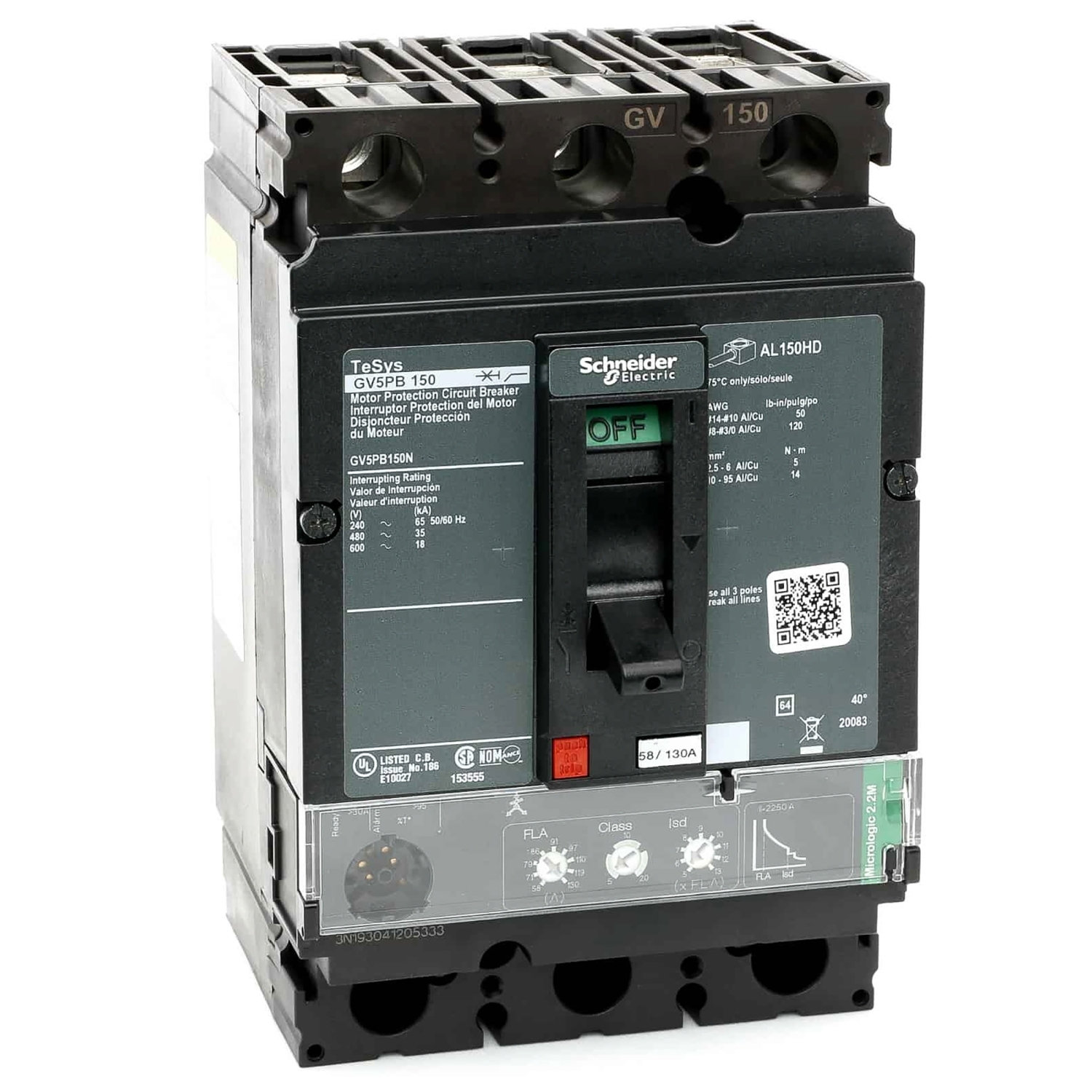

GV5PB150N GV5 Motor circuit breaker, 600 V AC, 150 A, 25 kA Interrupt, 3 P Poles, Electronic Trip
- MFR:
- Schneider Electric
- MFR #:
- GV5PB150N
- Item #:
- 643618
GV5PB150N GV5 Motor circuit breaker, 600 V AC, 150 A, 25 kA Interrupt, 3 P Poles, Electronic Trip
- MFR #:
- GV5PB150N
- Item #:
- 643618

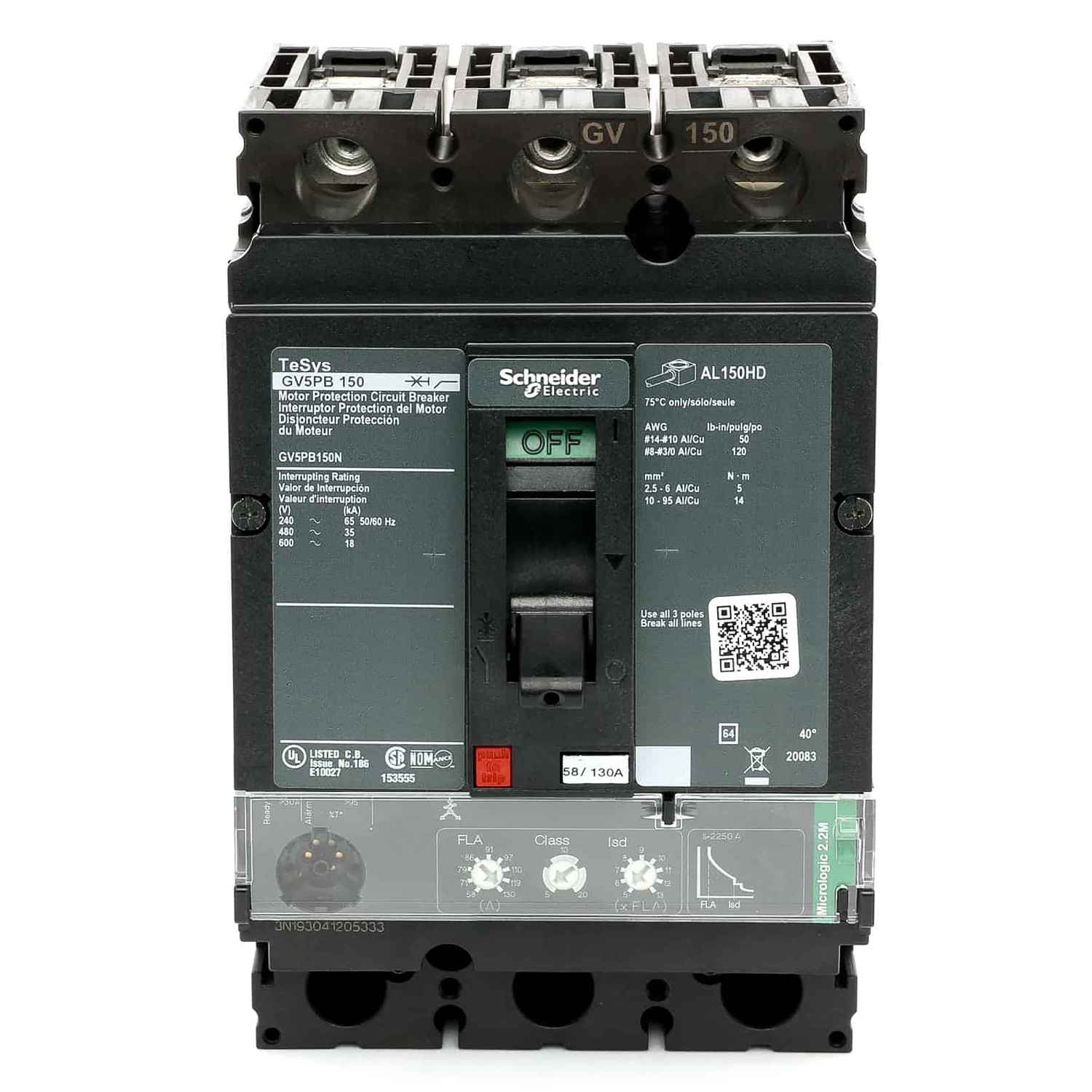

TeSys GV5 motor protective circuit breakers provide an efficient motor control and protection solution up to 520 amps. This 3 pole motor protective circuit breaker is rated at 150A. The thermal protection adjustable dials have settings of 58A to 130A, a selectable tripping class of 5, 10 or 20, and magnetic protection at 15 In. It has SCCR breaking capacity 18kA at 600Y/347V. This motor protective circuit breaker is 6.40 inches tall, 4.12 inches wide and 4.36 inches deep. This UL489 motor protective circuit breaker is has UL Listed, CSA, IEC, CCC, EAC, and Marine certifications.
Manuals & Documentation
| Catalog Number | GV5PB150N |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=527167372&lang=en-us |
| GTIN | 03606481005373 |
| Width | 4.12 |
| Width UOM | Inch |
| Height | 6.4 |
| Height UOM | Inch |
| Depth | 4.36 IN |
