| Special Features |

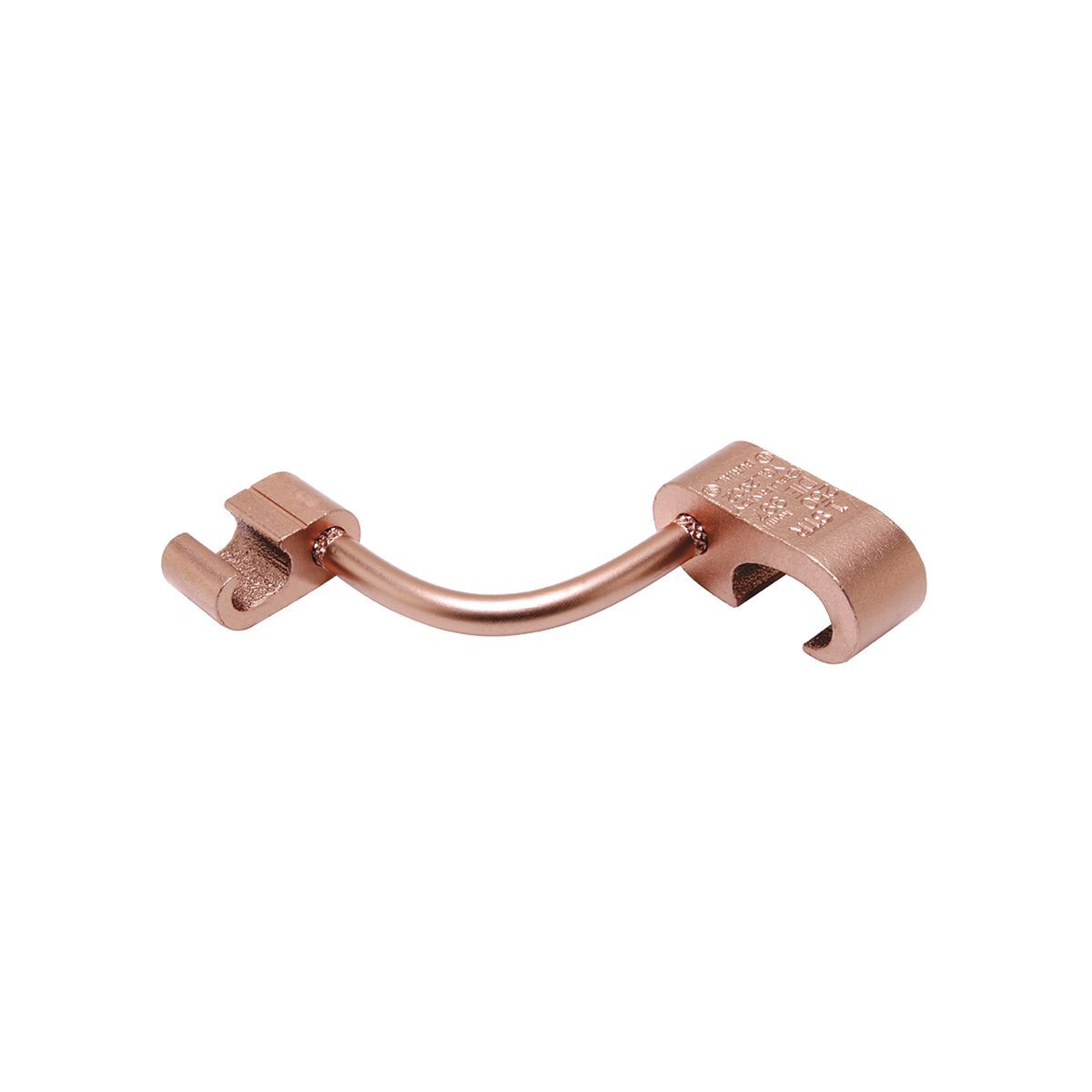

Features: An Irreversable Compression Ground Grid Cross Connector Which Allows Adjustment Of The Compression Elements Prior To Installation, Only Six Connectors And Four Dies Are Required To Install All Combinations From #6 AWG Solid Through 500 KCMIL, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Element A: Y750/Y35/Y39 HYPRESS Tool, U1011 Die, (3), PAT750-18V Tool, U1011 Die, (3), Y45 Tool, S1011 Die, (3), Y46 Tool, P1011 Die, (3), Element B: Y750/Y35/Y39 Tool, U1011 Die, (3), PAT750-18V Tool, U1011 Die, (3), Y45 Tool, S1011 Die, (3), Y46 Tool, P1011 Die, (3), Rebar Size: #5 - #6, Ground Rod Size: 5/8 - 3/4 IN, Conductor Size (run - Range): 250 - 500 KCMIL, Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Conductor Size (tap Range): 250 - 500 KCMIL, Die Index: 1011 Element A, 1011 Element B |
