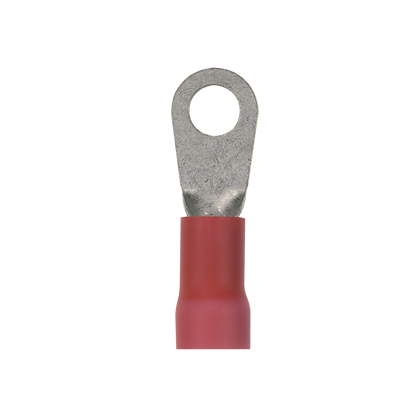

PV8-10R-TY Pan-Term Type PV-R Loose Piece Ring Terminal, 8 AWG Conductor, 1.53 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Red
- MFR:
- Panduit
- MFR #:
- PV8-10R-TY
- UPC:
- 074983421176
- Item #:
- 643011
PV8-10R-TY Pan-Term Type PV-R Loose Piece Ring Terminal, 8 AWG Conductor, 1.53 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Red
- MFR #:
- PV8-10R-TY
- UPC:
- 074983421176
- Item #:
- 643011
The PV8-10R-TY Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Manuals & Documentation
| Catalog Number | PV8-10R-TY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Funnel Entry |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | cULus Listed 587H E52164, CSA Certified LR31212 |
| UPC | 074983421176 |
| GTIN | 00074983421176 |
| Item Type | Ring Terminal |
| Size | #10 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #8 AWG |
| Cross Reference Products | ABBInstall KN8-10R-D|ABBInstall KV8-10R-D|ABBInstall RD10361|ABBInstall RD367TL|Amprobe 324043|Boeing BACT12AC15|Burndy YAEV10M5|Burndy YAEV8CL|Hollings R3031B|Hollings R3031BTLP |
