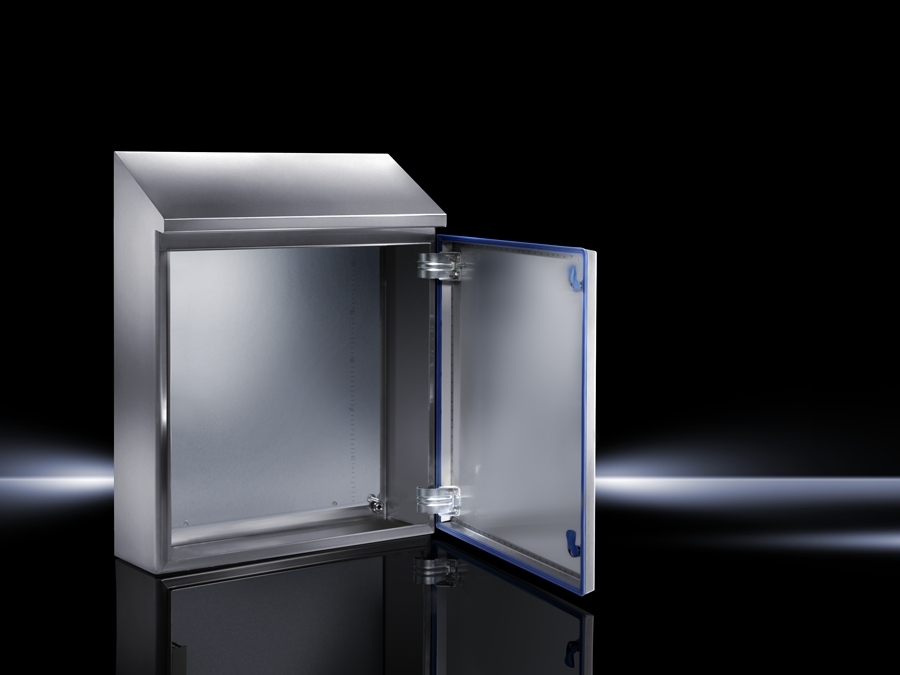

1315600 HD Series Compact Hygienic Design Enclosure, 32 in W x 12 in D, NEMA 3R/4X/13 NEMA Rating, Stainless Steel
- MFR:
- Rittal
- MFR #:
- 1315600
- UPC:
- 639889880856
- Item #:
- 642247
1315600 HD Series Compact Hygienic Design Enclosure, 32 in W x 12 in D, NEMA 3R/4X/13 NEMA Rating, Stainless Steel
- MFR #:
- 1315600
- UPC:
- 639889880856
- Item #:
- 642247
HD Compact Enclosure WHD 810x650x300mm - Design: Roof angled forwards by 30. Material:Enclosure and door: Stainless steel 1.4301 (AISI 304). Mounting plate: Sheet steel. Lock inserts HD: Stainless steel 1.4404 (AISI 316L). Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600. Surface finish:Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 m. Mounting plate: Zinc-plated. Seal: Blue, dyed (RAL 5010). Protection category IP to IEC 60 529: IP 66. Protection category IP to DIN 40 050-9: IP 69K. Protection category NEMA: NEMA 13 NEMA 4X
| Catalog Number | 1315600 |
| Manufacturer | Rittal |
| Brand | Rittal North America LLC |
| Country of Origin | Germany |
| Made in USA | No |
| Color | Stainless Steel |
| Material | Stainless steel |
| Mounting | Wall |
| NEMA Rating | 4X |
| RoHS Indicator | Yes |
| UPC | 639889880856 |
| GTIN | 00639889880856 |
| Item Type | General Purpose Enclosure |
| Length | 33.0709 |
| Length UOM | Inch |
| Width | 13.3858 |
| Width UOM | Inch |
| Height | 32.2835 |
| Height UOM | Inch |
| Weight | 87.081 |
| Weight UOM | Pounds |
