Lutron

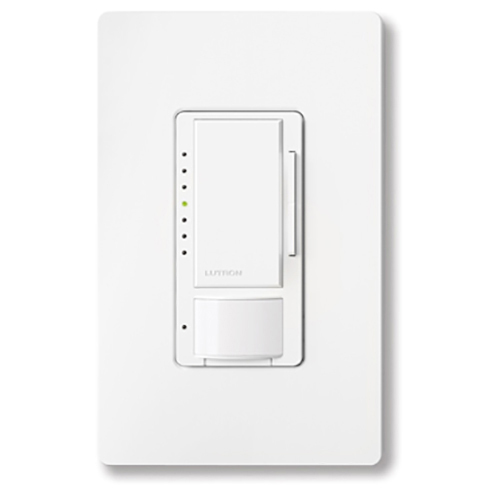

MRF2S-8SDV010-WH Vive Maestro 0–10V Vacancy Sensor Dimmer, 8 Amp Switching, 50 mA sink, 120/277V, White

MFR:
Lutron Electronics
MFR #:
MRF2S-8SDV010-WH
UPC:
784276262118
Item #:
639329
Manuals & Documentation
Catalog Number MRF2S-8SDV010-WH
Manufacturer Lutron Electronics
Brand Lutron
Application Lighting Control
Enclosure Plastic
Mounting Wall
Sensing Range 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Sensor Yes
Special Features Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an vacancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert
Standard UL, cUL, Title 20/24 certified
Supply Voltage 120 to 277
UPC 784276262118
GTIN 00784276262118
Item Type Vacancy sensor dimmer, multi-location/3-way/single-pole, 0-10 V
Environmental Conditions 0 to 90% humidity, non-condensing. Indoor use only.
Operating Temperature 32 to 104 F
