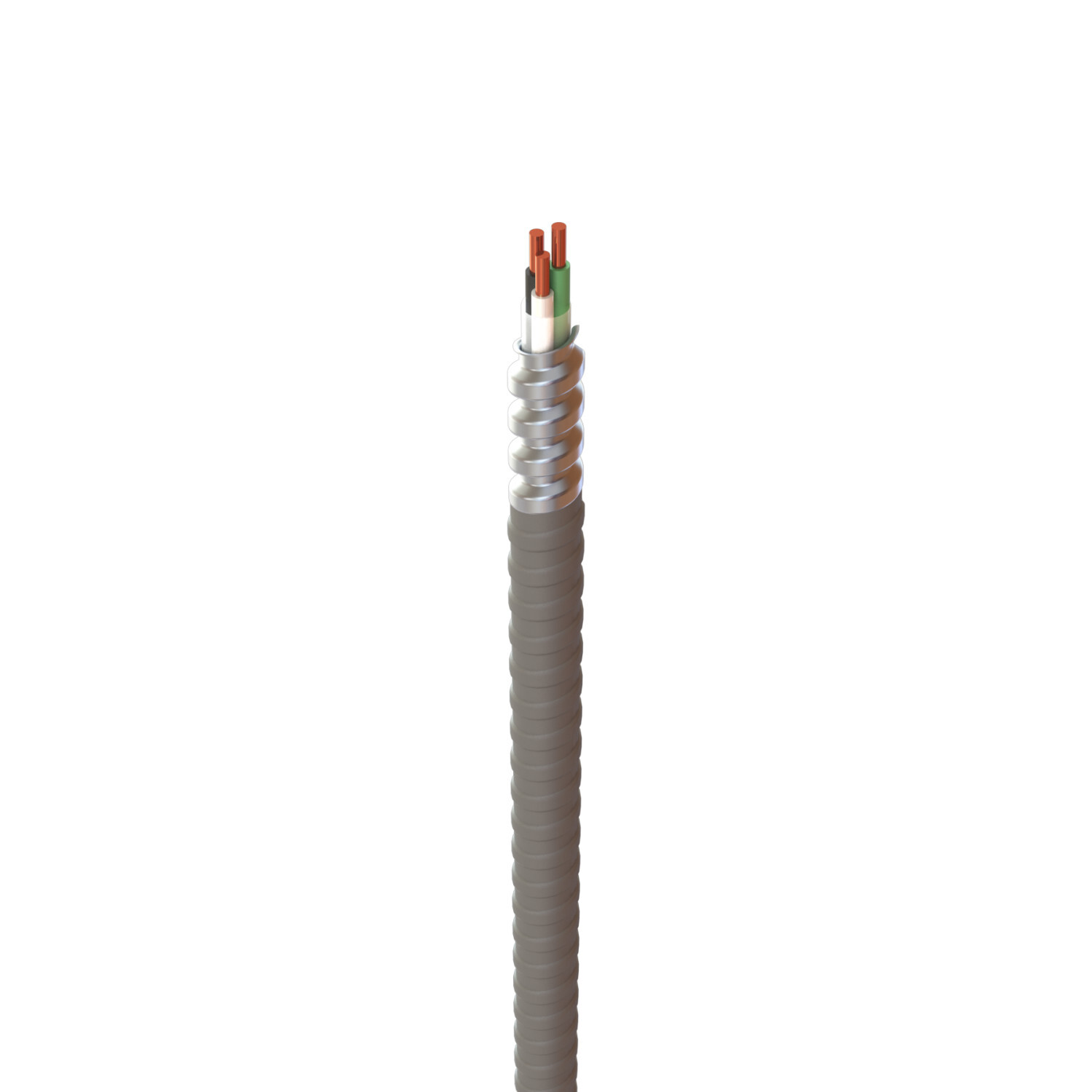

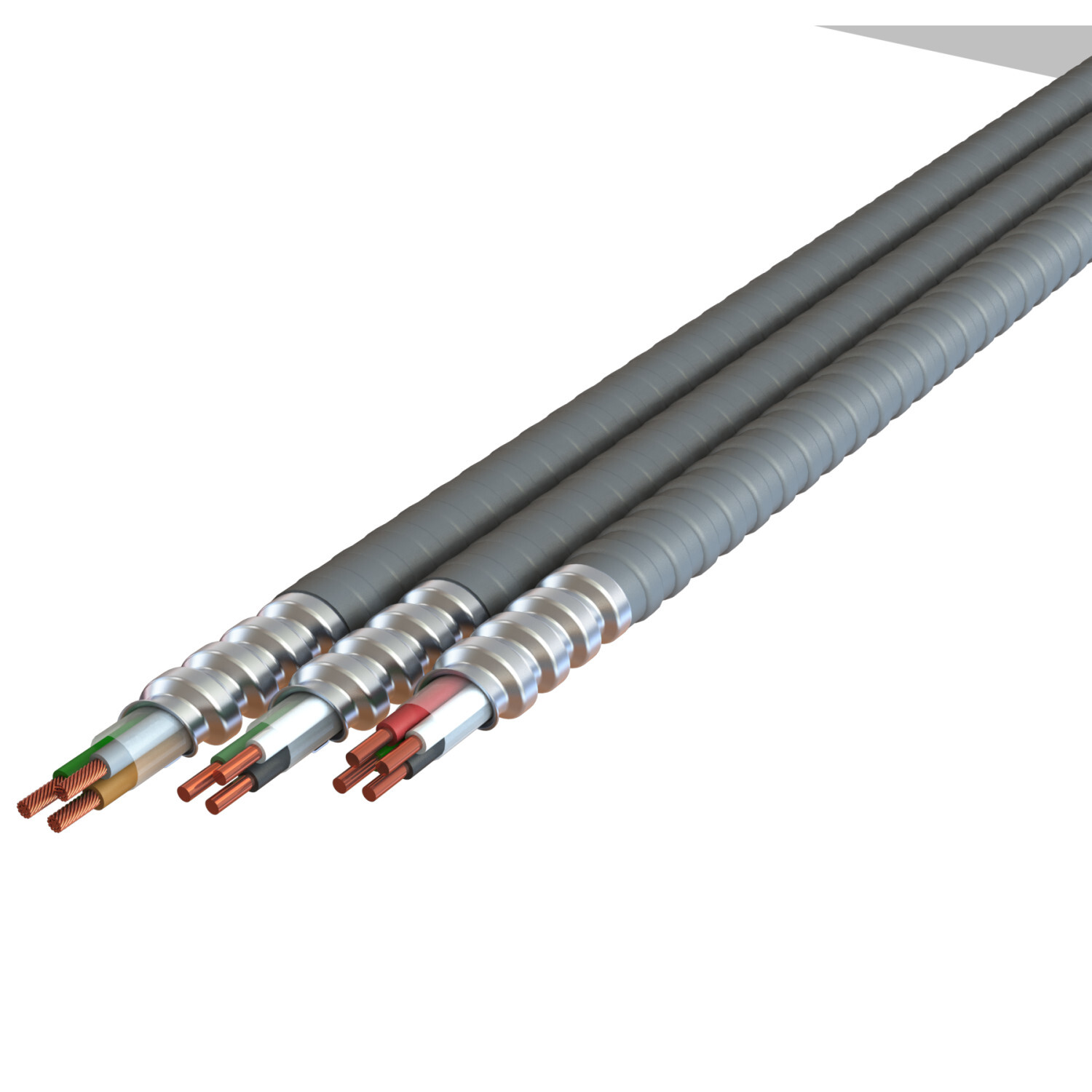

Parking Deck/Lot Cable, Type MC Jacketed Cable, Galvanized Interlocking Steel Strip with Gray PVC Jacket. Assembly Cover: Polypropylene Tape. Max Temperature Rating: 90 DEG C (Dry), 75 DEG C(Wet). Insulated 10 AWG Green Solid Copper Grounding Conductor. UL Listed for -40 DEG C low temperature. UL listed for cable tray use. UL listed for Direct Burial including concrete encasement and wet locations. UL listed sunlight resistant and oil resistant II.UL 83, 1479, 1569, 1581, 2556. 3 Conductors, 10 AWG. Colors: Black, Red, White, Green. 250 FT.
- MFR:
- ATKORE - AFC CABLE
- MFR #:
- 2308-42-00
- UPC:
- 077680115997
- Item #:
- 638013
Parking Deck/Lot Cable, Type MC Jacketed Cable, Galvanized Interlocking Steel Strip with Gray PVC Jacket. Assembly Cover: Polypropylene Tape. Max Temperature Rating: 90 DEG C (Dry), 75 DEG C(Wet). Insulated 10 AWG Green Solid Copper Grounding Conductor. UL Listed for -40 DEG C low temperature. UL listed for cable tray use. UL listed for Direct Burial including concrete encasement and wet locations. UL listed sunlight resistant and oil resistant II.UL 83, 1479, 1569, 1581, 2556. 3 Conductors, 10 AWG. Colors: Black, Red, White, Green. 250 FT.
- MFR #:
- 2308-42-00
- UPC:
- 077680115997
- Item #:
- 638013
The Parking Deck/Lot Cable has often replaced Schedule 40 and/or Schedule 80 PVC conduits, EMT, and rigid conduit for its flexibility, durability, and labor savings. Parking Deck/Lot Cable has a 50-mils PVC jacket over a galvanized steel armor. This is 10 mils thicker than Schedule 40 PVC conduit. The cable offers the same mechanical protection and performance of traditional raceway methods, with the ease of installation of a cable assembly.
Manuals & Documentation
| Catalog Number | 2308-42-00 |
| Manufacturer | ATKORE - AFC CABLE |
| Brand | AFC Cable Systems |
| Country of Origin | United States |
| Made in USA | Yes |
| Armour | Interlocked Galvanized Steel Strip |
| Bend Radius | 10.44 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Size | 10 AWG |
| Finish | Gray |
| Jacket Material | Gray PVC Jacket |
| Material | Galvanized Steel |
| Number of Conductors | 3 |
| Special Features | UL Listed for -40 DEG C low temperature. UL listed for cable tray use. UL listed for Direct Burial including concrete encasement and wet locations. UL listed signlight resistant and oil resistant II. |
| Standard | UL 83, 1479, 1569, 1581, 2556 |
| UPC | 077680115997 |
| GTIN | 00077680115997 |
| Item Type | MC Jacketed Cable |
| Length | 250 |
| Length UOM | Foot |
| Weight | 0.3467 LB/FT |
| Inside Diameter | 0.42 IN |
| Outside Diameter | 0.696 IN |
| Temperature Rating | 194 |
| Trade Size | 10-3 |
| Voltage Rating | 600V |
