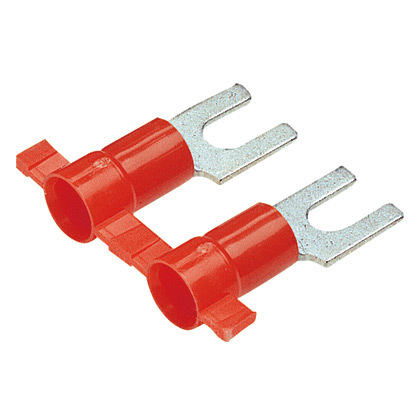

PV18-10FB-3K Pan-Term Reel Smart Insulated Fork Terminal, #18 Conductor, 0.86 in L, Butted Seam/Funnel Entry/Insulation Support Barrel, Copper, Red
- MFR:
- Panduit
- MFR #:
- PV18-10FB-3K
- UPC:
- 074983804429
- Item #:
- 634997
PV18-10FB-3K Pan-Term Reel Smart Insulated Fork Terminal, #18 Conductor, 0.86 in L, Butted Seam/Funnel Entry/Insulation Support Barrel, Copper, Red
- MFR #:
- PV18-10FB-3K
- UPC:
- 074983804429
- Item #:
- 634997
Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 22 - 18 AWG wire range, #10 stud size.
Manuals & Documentation
| Catalog Number | PV18-10FB-3K |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Funnel Entry |
| Enclosure | Fork shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| UPC | 074983804429 |
| GTIN | 00074983804429 |
| Item Type | Fork Terminal |
| Size | #10 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #18 AWG |
