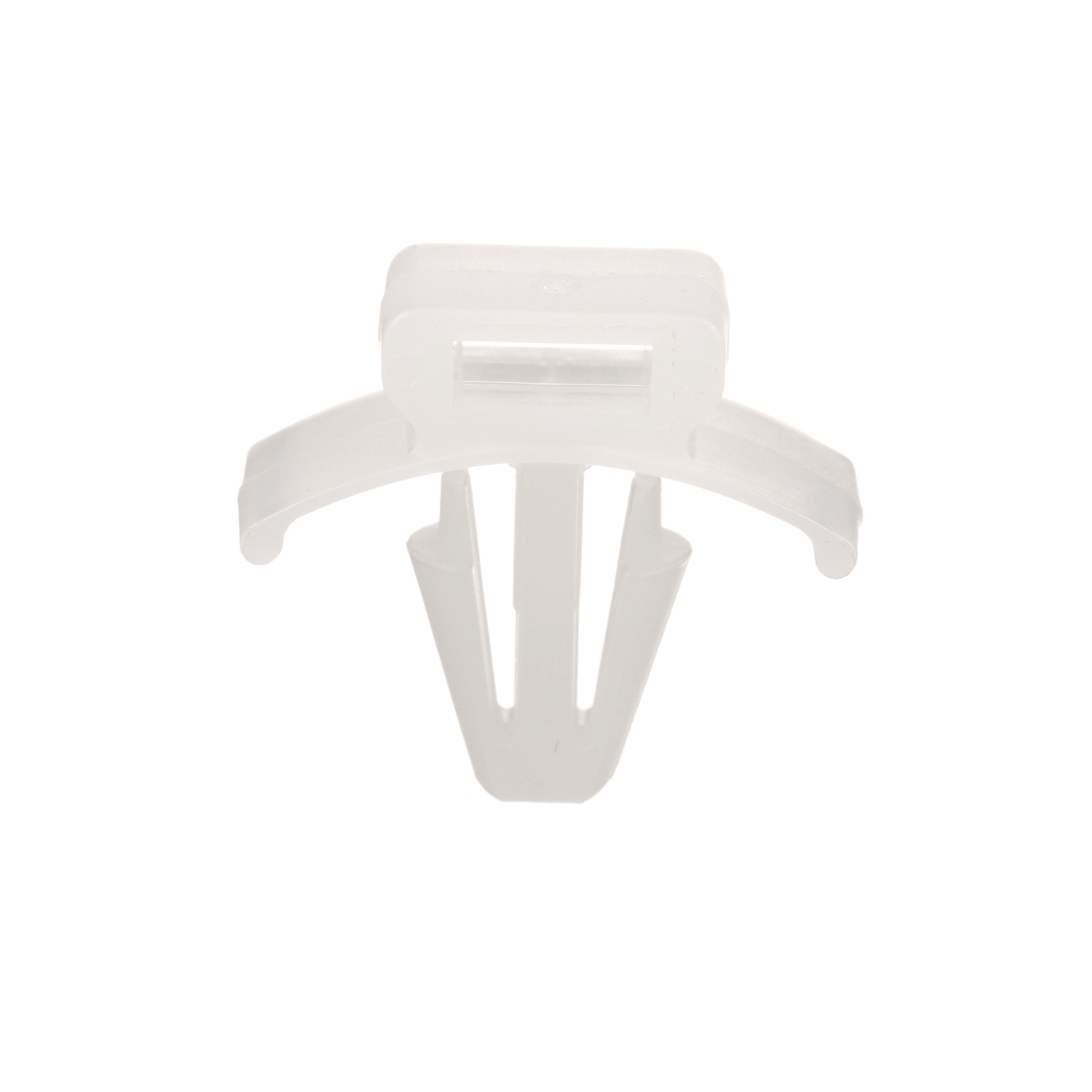

Panduit PWMS-H25-M winged push barb cable ties are designed for mounting a cable into a pre-drilled hole sized .229 to .255 (5.8mm - 6.5mm) and for maximum panel thickness of .105 (2.7mm). Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. For use with miniature, intermediate, and standard cross-section cable ties. They are natural in color and come in packages of 1000.
Manuals & Documentation
| Catalog Number | PWMS-H25-M |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Push Barb Cable Tie Mounts Wing Provides Added Stability and Can be Used where Only One Side of the Panel is Accessible |
| Color | Natural |
| Insulation | Polyamide (PA) |
| Material | Nylon 6.6 |
| Mounting | Push Barb |
| Standard | CE Compliant,UL Recognized: E136577, RoHS Compliant |
| UPC | 074983583751 |
| GTIN | 00074983583751 |
| Item Type | Cable Tie Mount |
| Cable Type | Cable Tie Mount |
| Operating Temperature | 185 °F |
