Telemecanique

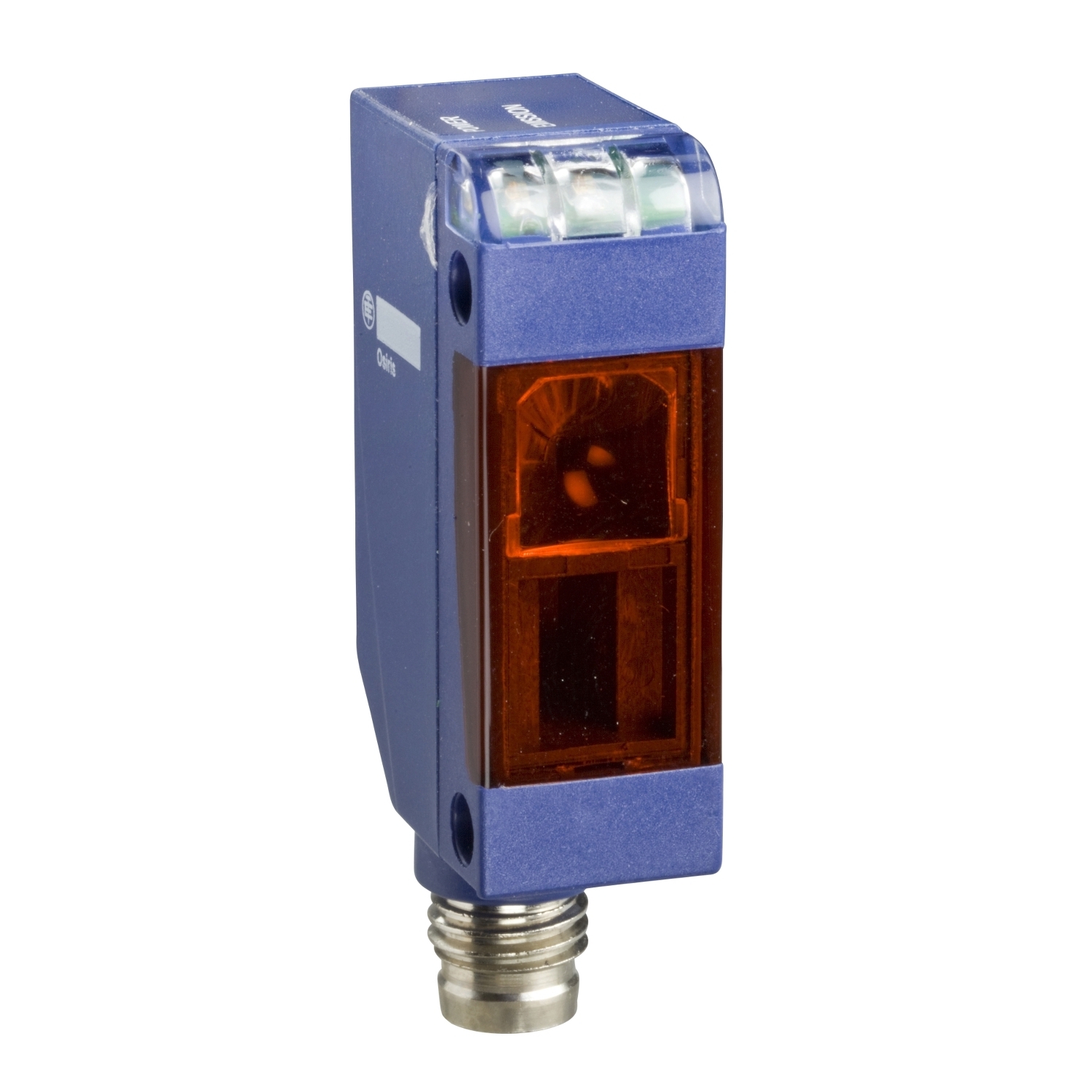

XUM0APSAM8 OsiSense XU Miniature Submersible Temporarily Photoelectric Sensor, Rectangle Shape, 14/0.1/0.55/4 m, Infrared Sensing Beam, 2 ms Response, PNP 1NO-1NC Output

MFR:
Telemecanique Sensors
MFR #:
XUM0APSAM8
UPC:
785901822332
Item #:
63423

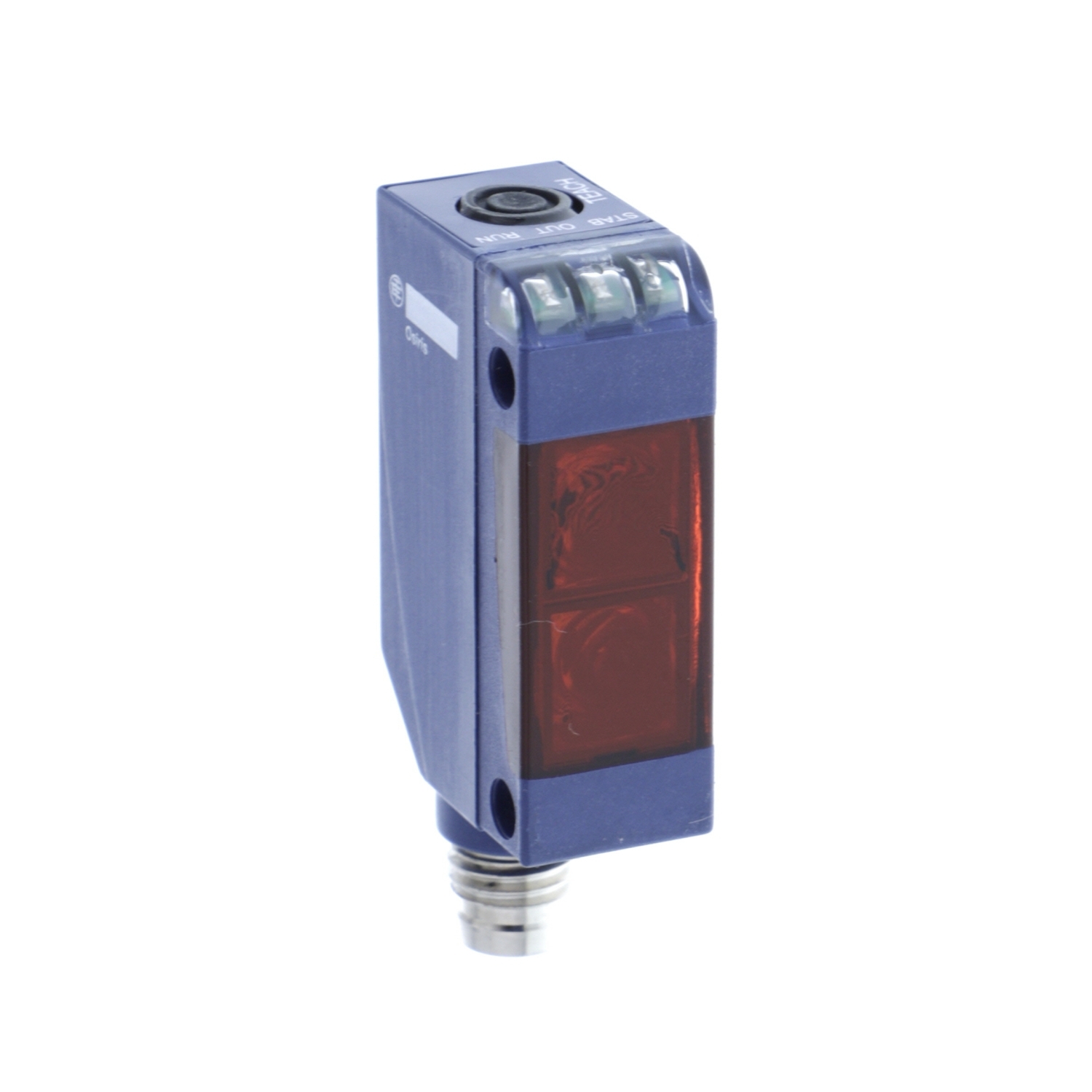

This miniature design multi mode photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This multi-mode rectangular photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and alignment, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M8 connector, compatible with all existing market sensor cabling. It is CSA and UL certified.

Manuals & Documentation
Catalog Number XUM0APSAM8
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application -

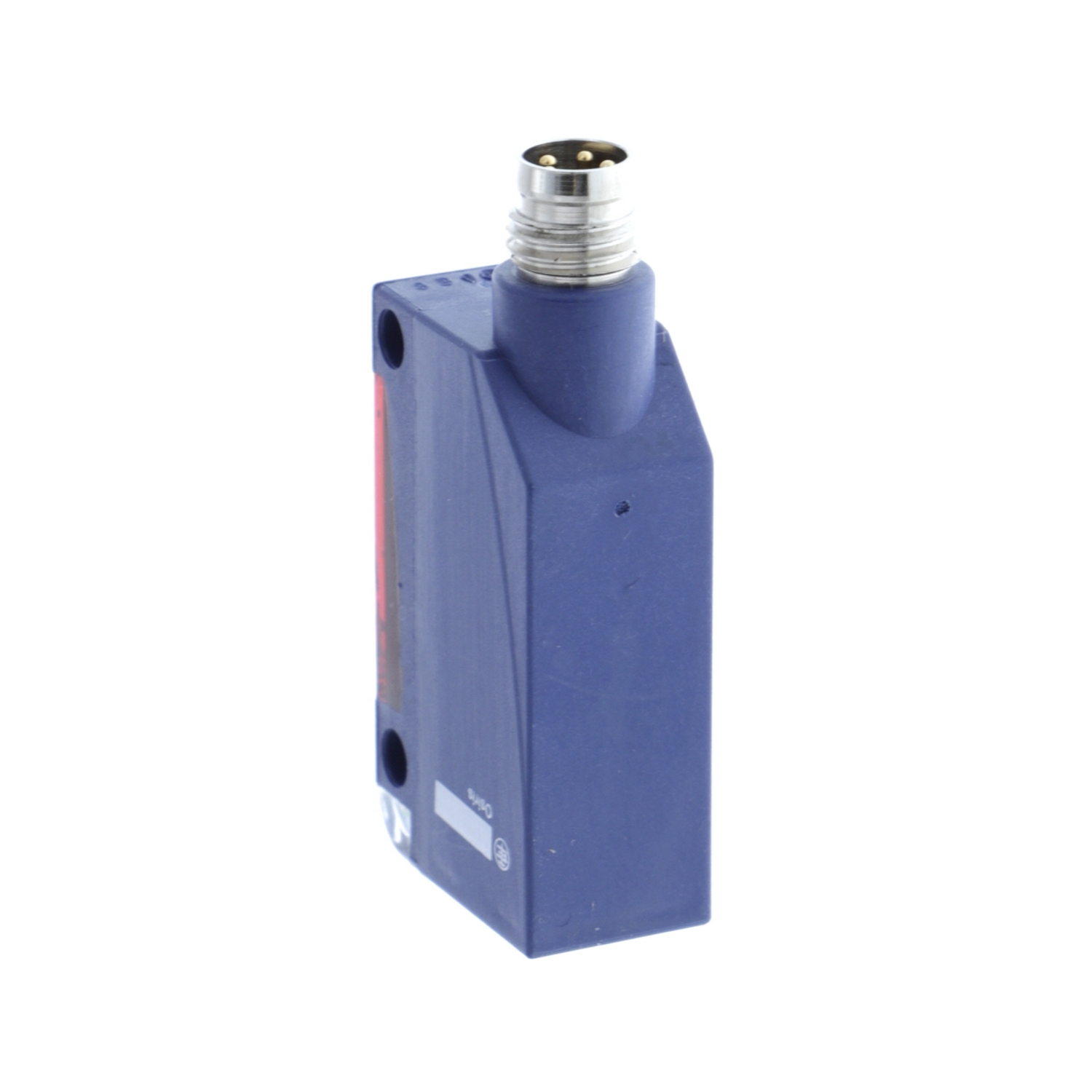

Connection 1 male connector M8, 4 pins
Enclosure IP65 CONFORMING TO IEC 60529-IP67 CONFORMING TO IEC 60529,PBT
Operating Cycles <= 250 Hz;240 Hz
Output PNP;1 NO or 1 NC programmable;Discrete;Solid state
Sensing Range 3-3 M POLARISED REFLEX NEED REFLECTOR XUZC50-10-10 M THRU BEAM NEED A TRANSMITTER XUM0AKSAM8T-0.1-0.1 M DIFFUSE WITH BACKGROUND SUPPRESSION-0.4-0.4 M DIFFUSE,> 0...32.81 FT (> 0...10 M)
Special Features 1 LED green)supply;1 LED red)instability;1 LED yellow)output state
Standard CSA-UL-CE,IP65 IEC 60529-IP67 IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=874314&lang=en-us
UPC 785901822332
GTIN 03389110164923
Item Type General purpose multimode;Multimode;Miniature;Photo-electric sensor
Size 0.79
Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND TEMPORARILY SUBMERSIBLE (INDOOR/OUTDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
