ZCMD21L2 OsiSense 2-Pole Fixed Miniature Limit Switch Body With Positive Opening, 1NO-1NC Contact, For Use With XCMD Standard Format Limit Switch, 1.5 A at 240 V AC, 0.1 A at 250 V DC Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- ZCMD21L2
- UPC:
- 785901660255
- Item #:
- 633375
ZCMD21L2 OsiSense 2-Pole Fixed Miniature Limit Switch Body With Positive Opening, 1NO-1NC Contact, For Use With XCMD Standard Format Limit Switch, 1.5 A at 240 V AC, 0.1 A at 250 V DC Contact
- MFR #:
- ZCMD21L2
- UPC:
- 785901660255
- Item #:
- 633375

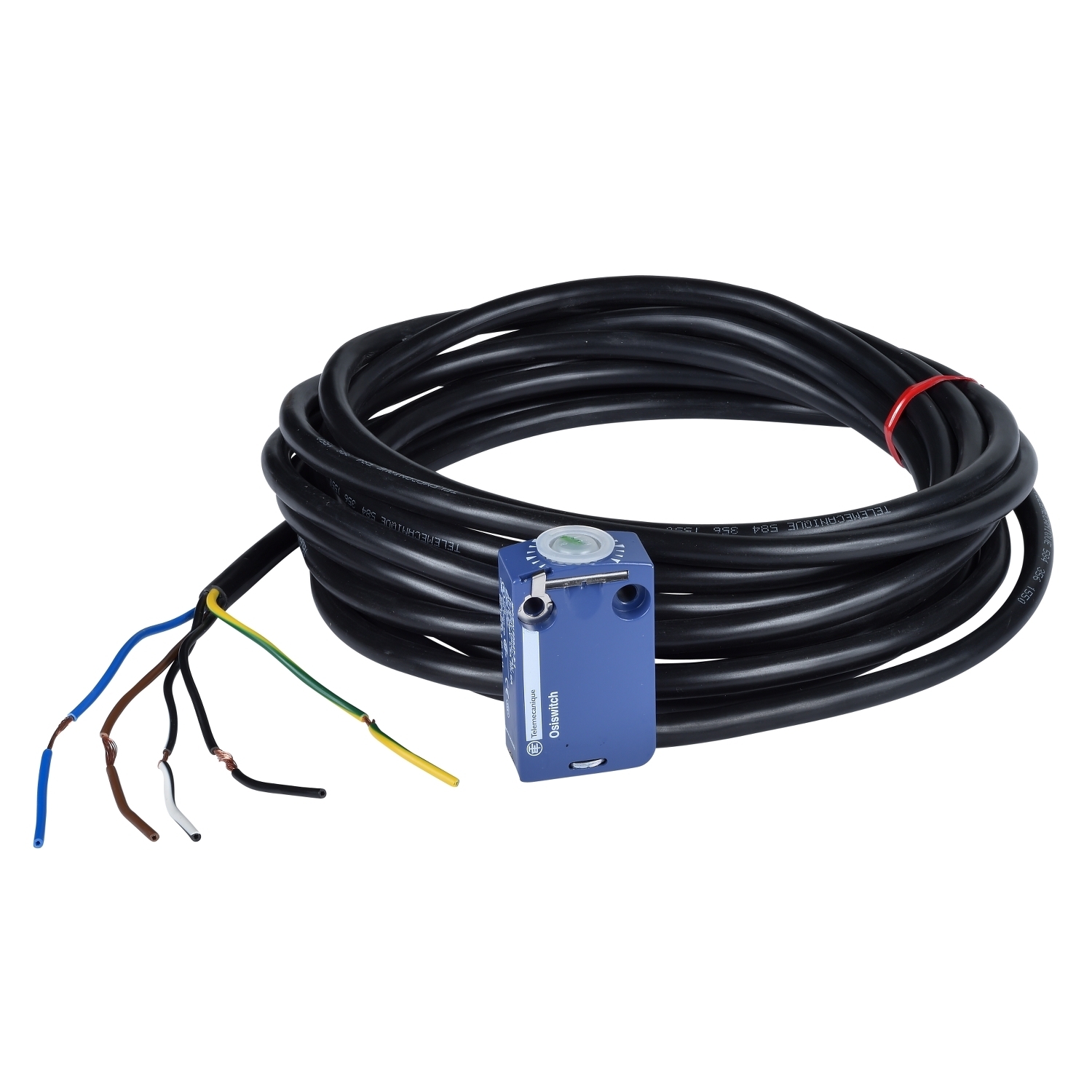

This ZCM body/contact assembly with connector has standard contacts and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and is pre-cabled (2 meter cable). It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Manuals & Documentation
| Catalog Number | ZCMD21L2 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Snap action |
| Amperage Rating | 6 |
| Application | XCMD |
| Connection | Removable cable |
| Contact Configuration | 1 NC + 1 NO |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13 120 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| Standard | IEC, UL LISTED, CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880308&lang=en-us |
| UPC | 785901660255 |
| GTIN | 03389110299274 |
| Item Type | Limit switch body |
| Size | 0.63 |
