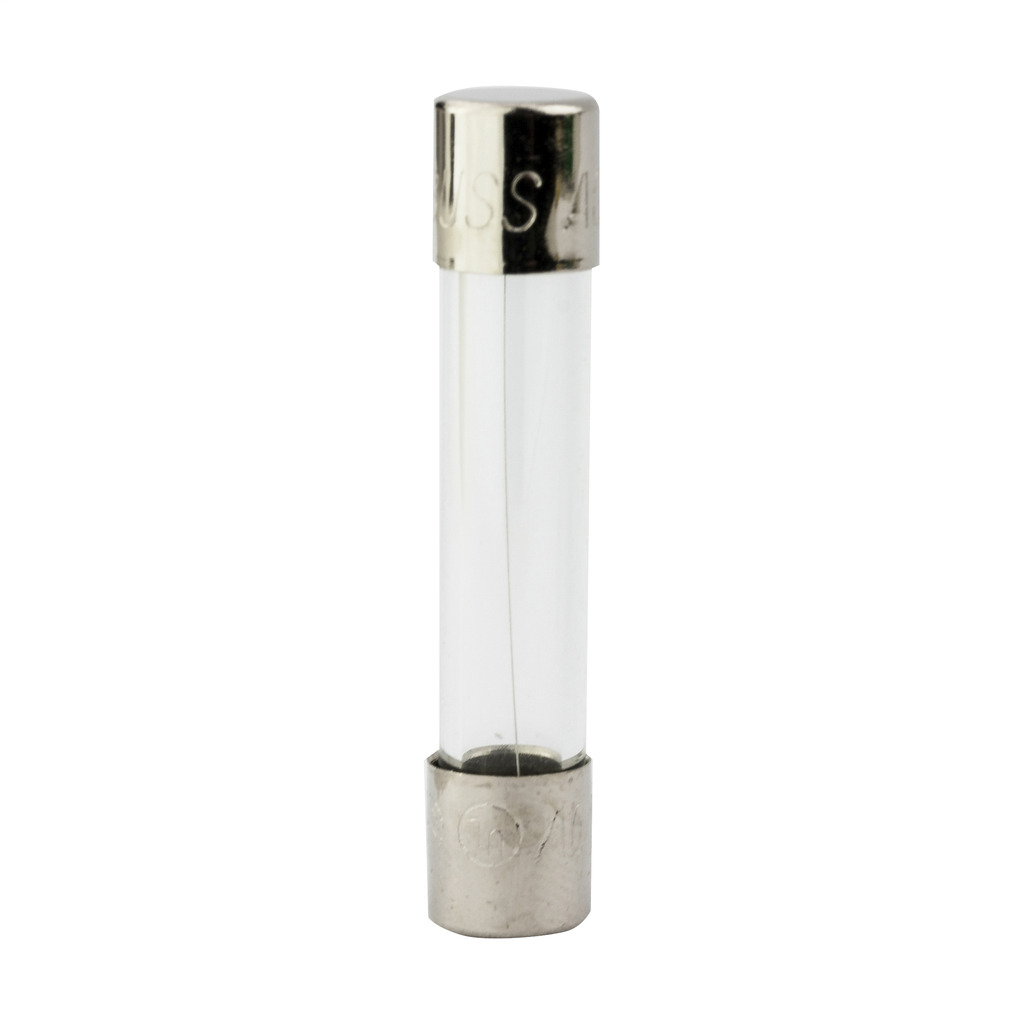

Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC fast-acting, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.

Manuals & Documentation
Catalog Number BK/AGC-3-R
Manufacturer Eaton Bussmann
Brand Eaton Bussmann Series
Country of Origin Taiwan, Province Of China
Made in USA No
Amperage Rating 3
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Ferrule end x ferrule end
Response Time 60 min at 135%, 120 sec at 200%
Special Features Interrupt Rating 100 Amp at 250 Vac, 10000 Amp at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant, Packaging Quantity 100
Standard RoHS Compliant,CE Marked
UPC 051712656306
GTIN 00051712656306
Item Type Fast-acting glass tube fuse
Weight UOM Pounds
Size 1/4 In Diameter X 1-1/4 In Length
Voltage Rating 250 Vac, 32 Vdc (self certified)
