SQUARE D

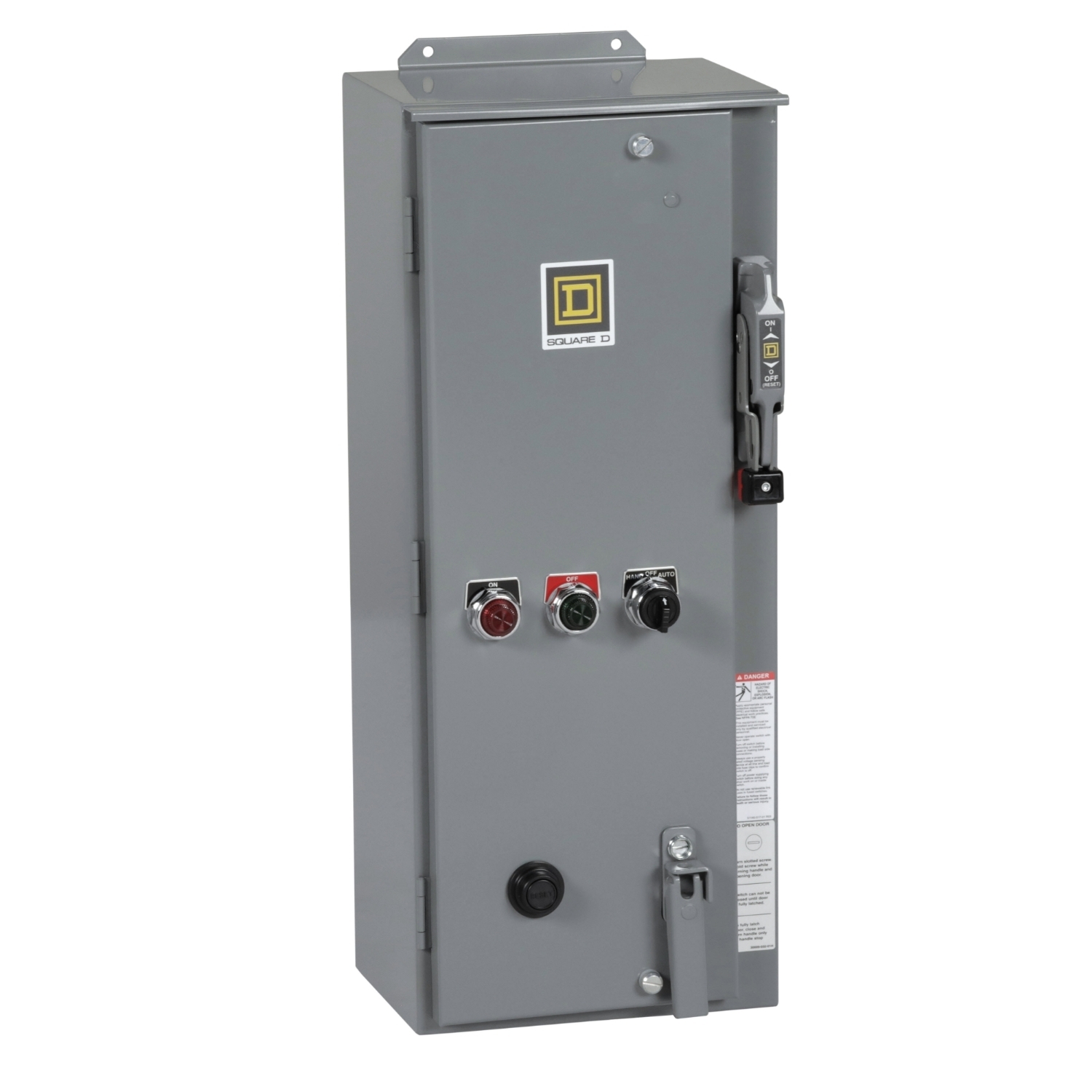

8538SDASP4 Type S Combination Magnetic Starter, 110 V AC at 50 Hz, 120 V AC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 12 Enclosure

MFR:
Schneider Electric
MFR #:
8538SDASP4
UPC:
785901876427
Item #:
628478

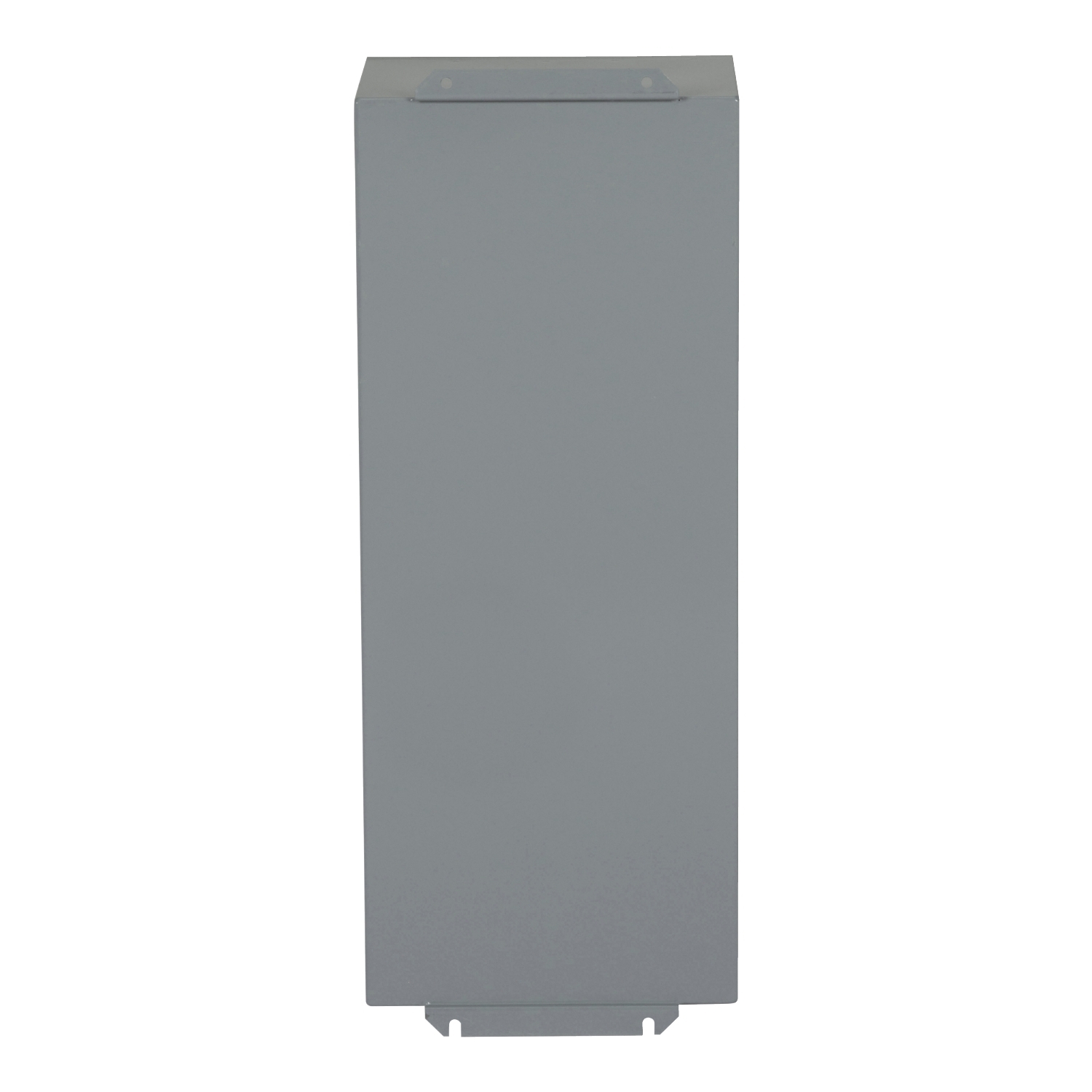

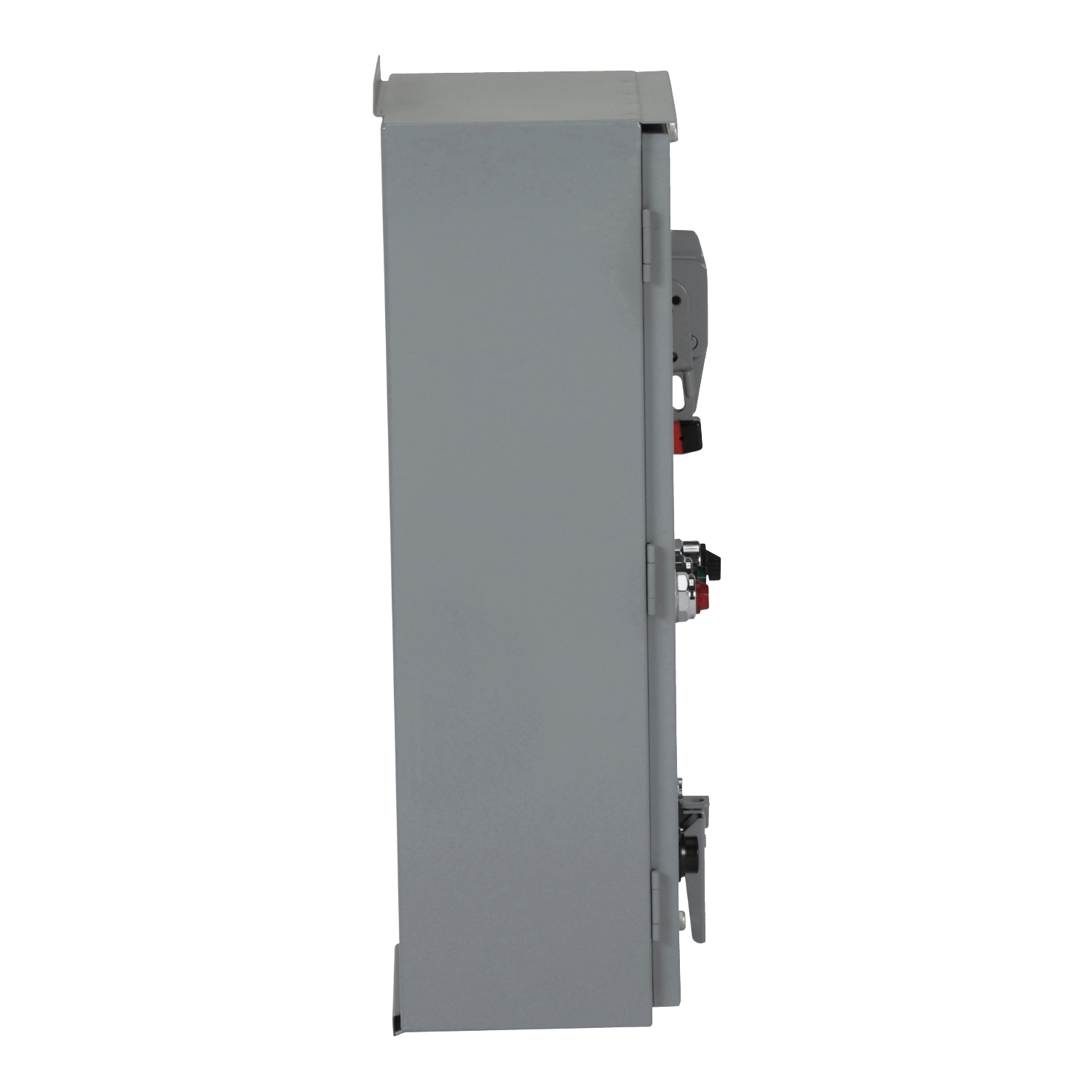

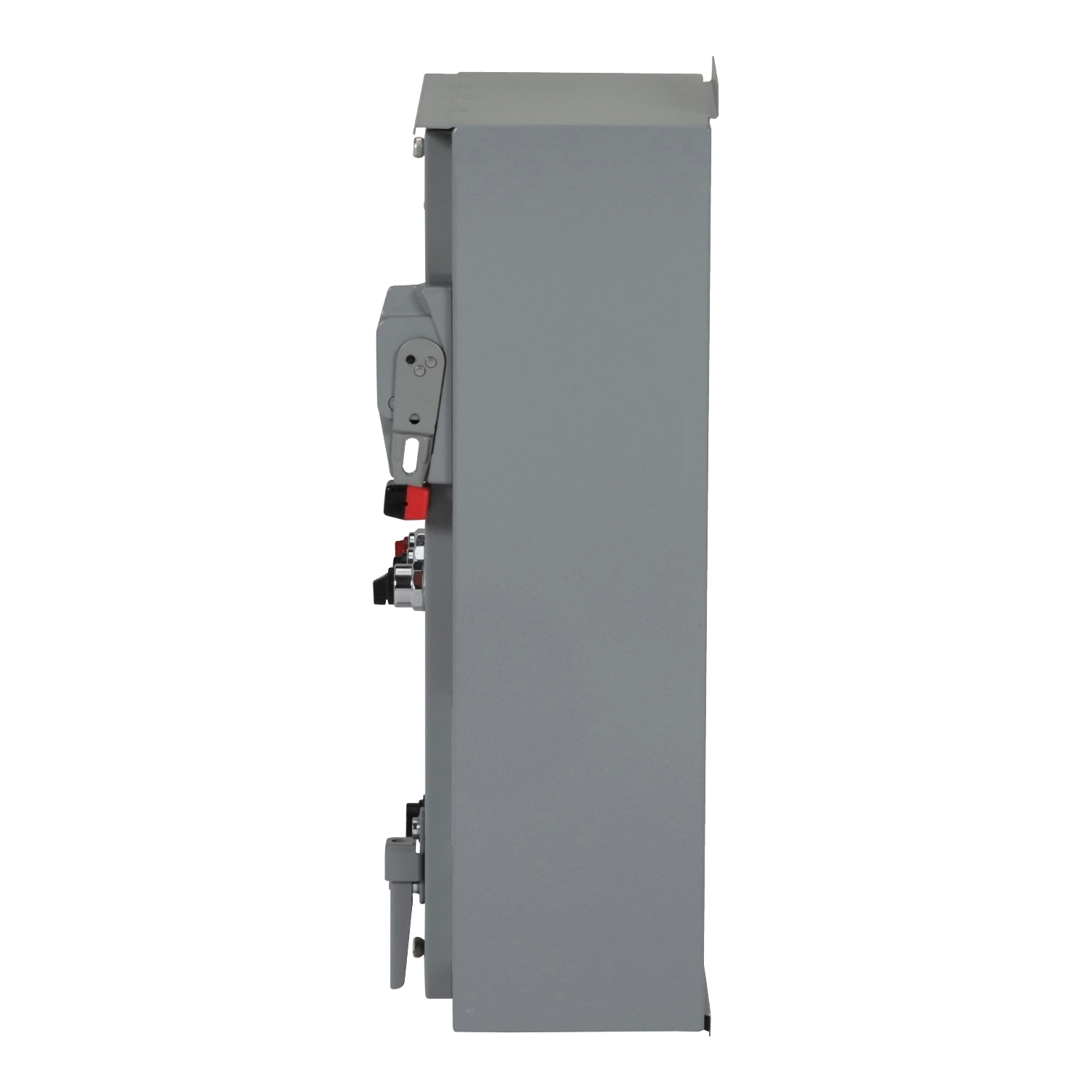

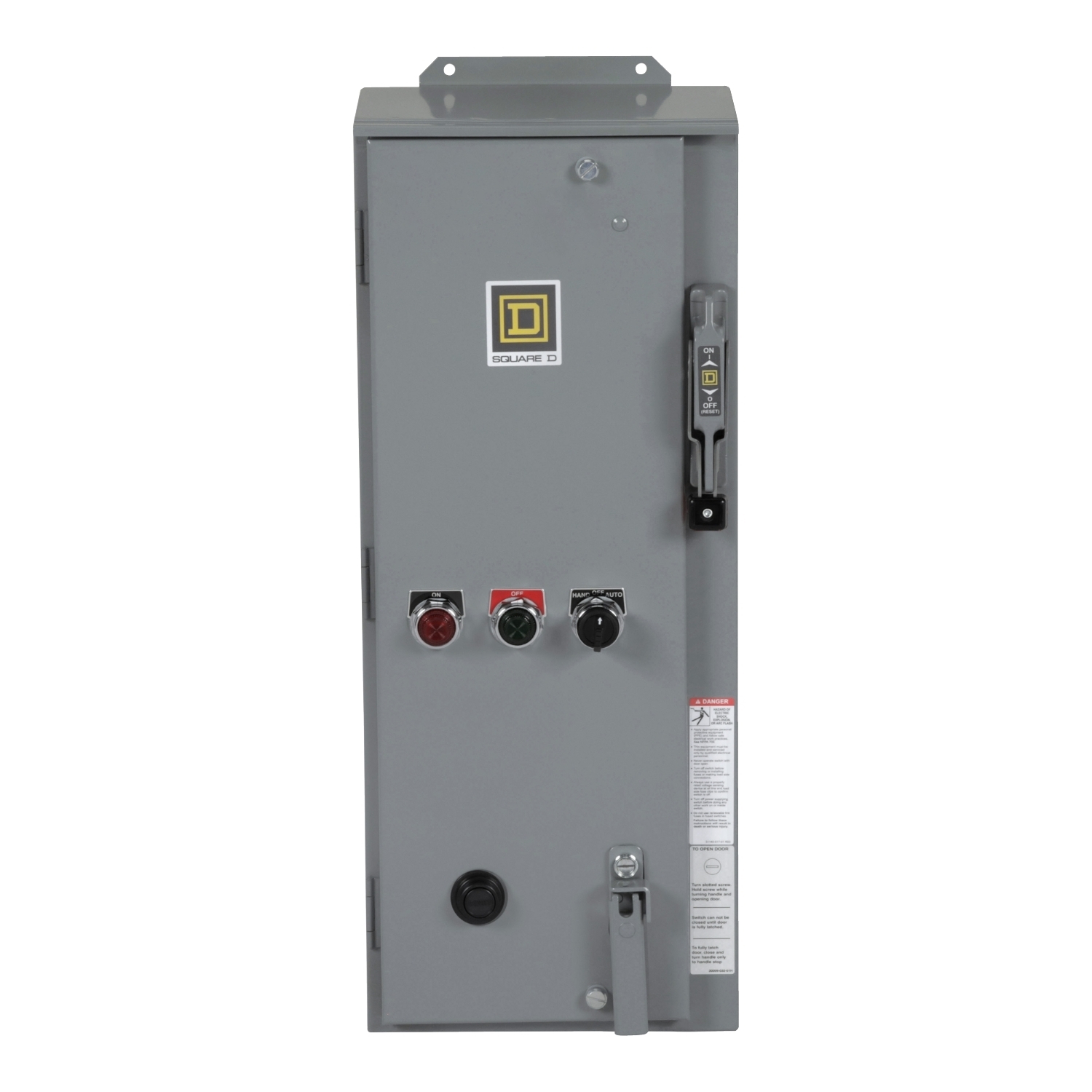

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of up to 10 HP at 200 and 240 VAC poly phase. Combination starter has 60 ampere Class H and K fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a Motor Logic solid state overload relay to detect over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 27.75 inches tall, 10.5 inches wide and 9.59 inches deep. A wide variety of accessories are available for Type S starters. This combination starters is supplied with a HOA selector switch, a red and green pilot light, auxiliary contacts and an interlock on disconnect. Type S combination starters are UL listed and CSA certified.

Manuals & Documentation
Catalog Number 8538SDASP4
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
UPC 785901876427
GTIN 00785901876427
Width 10.5
Width UOM Inch
Height 27.75
Height UOM Inch
Depth 9.59 IN
