Schneider Electric

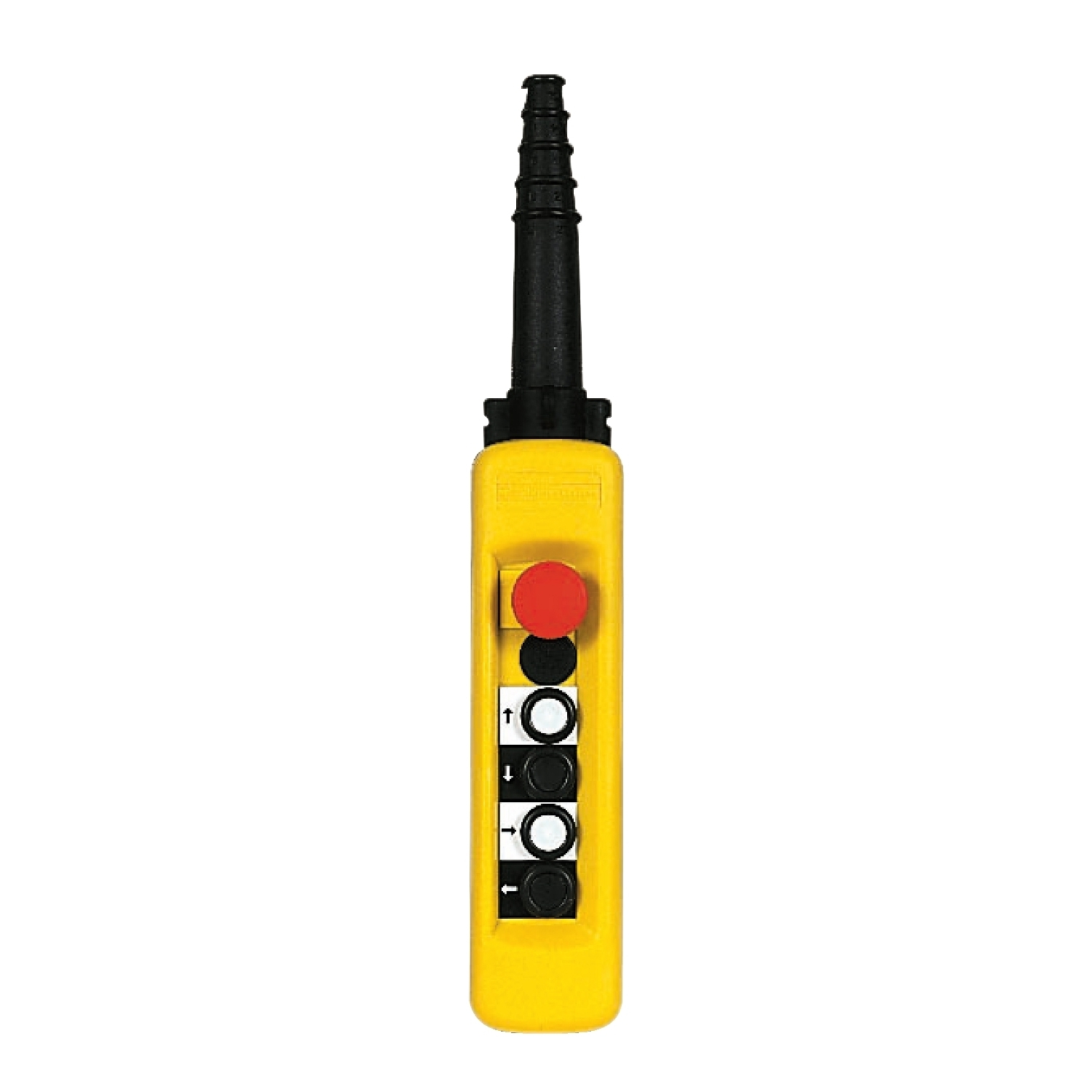

XACA4713 Harmony Double Insulated Medium Duty Pendant Control Station, 600 V AC/DC, 10 A, 4NO-1NC Contact, 4 Operators, NEMA 4/4X/5/IP65 NEMA Rating

MFR:
Schneider Electric
MFR #:
XACA4713
Item #:
625972

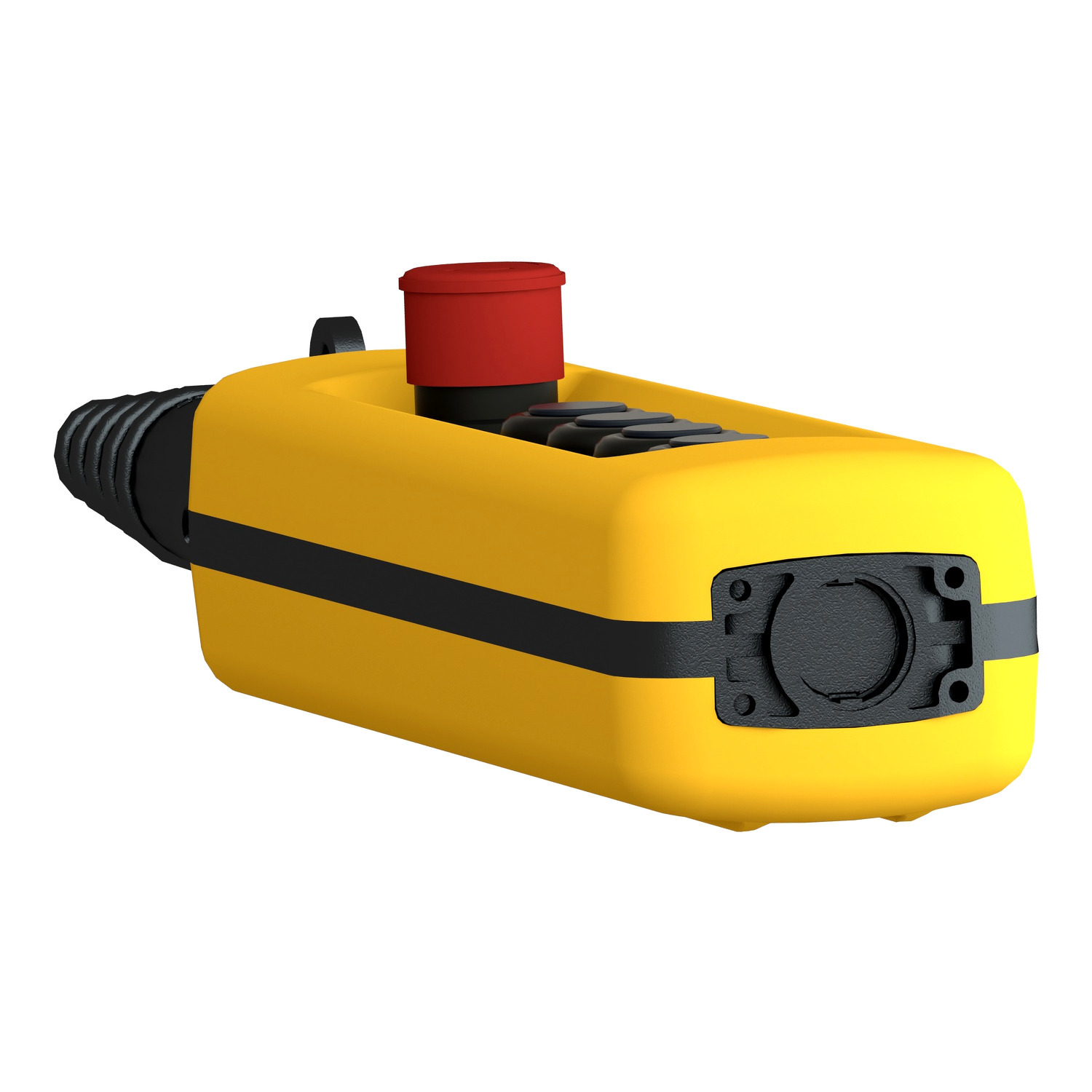

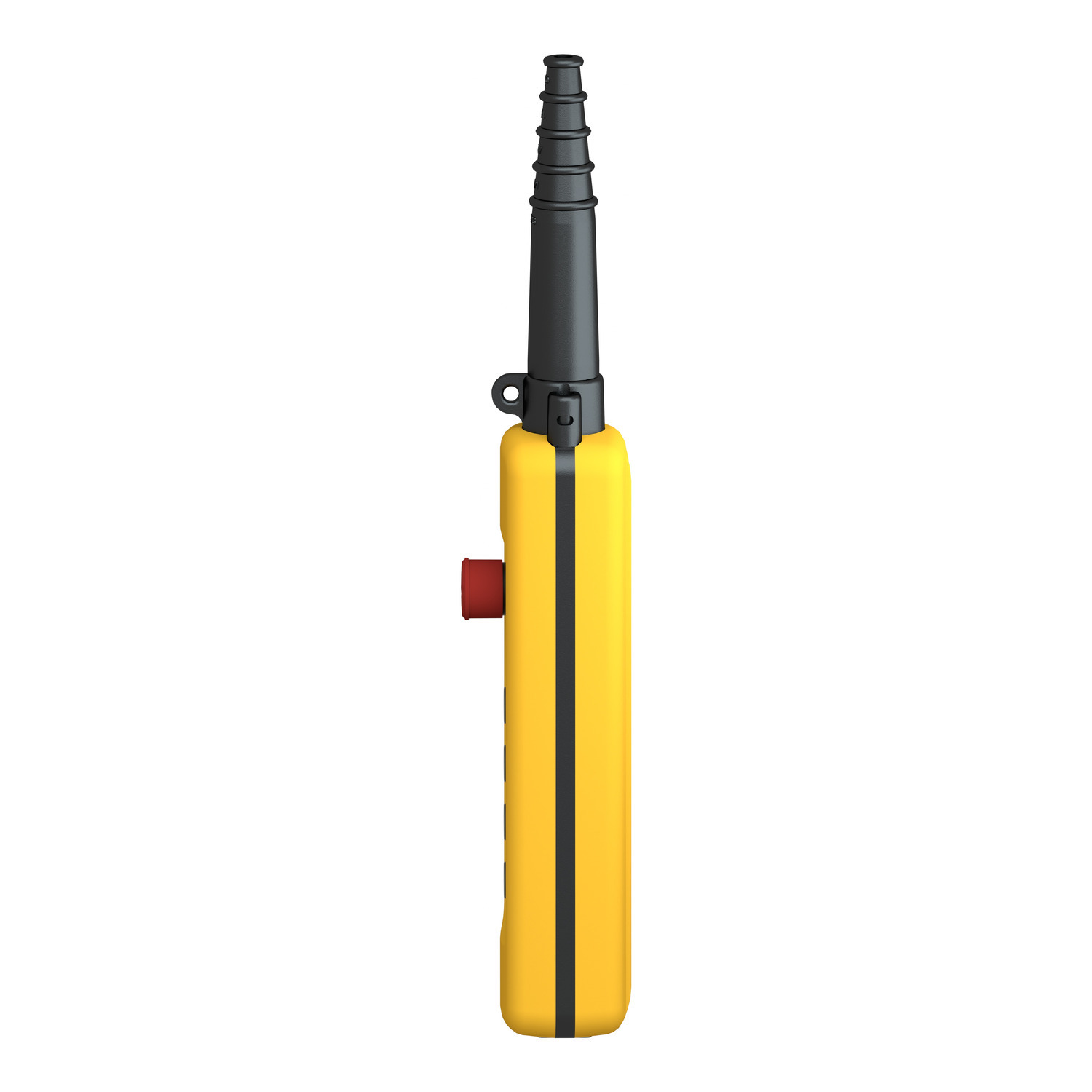

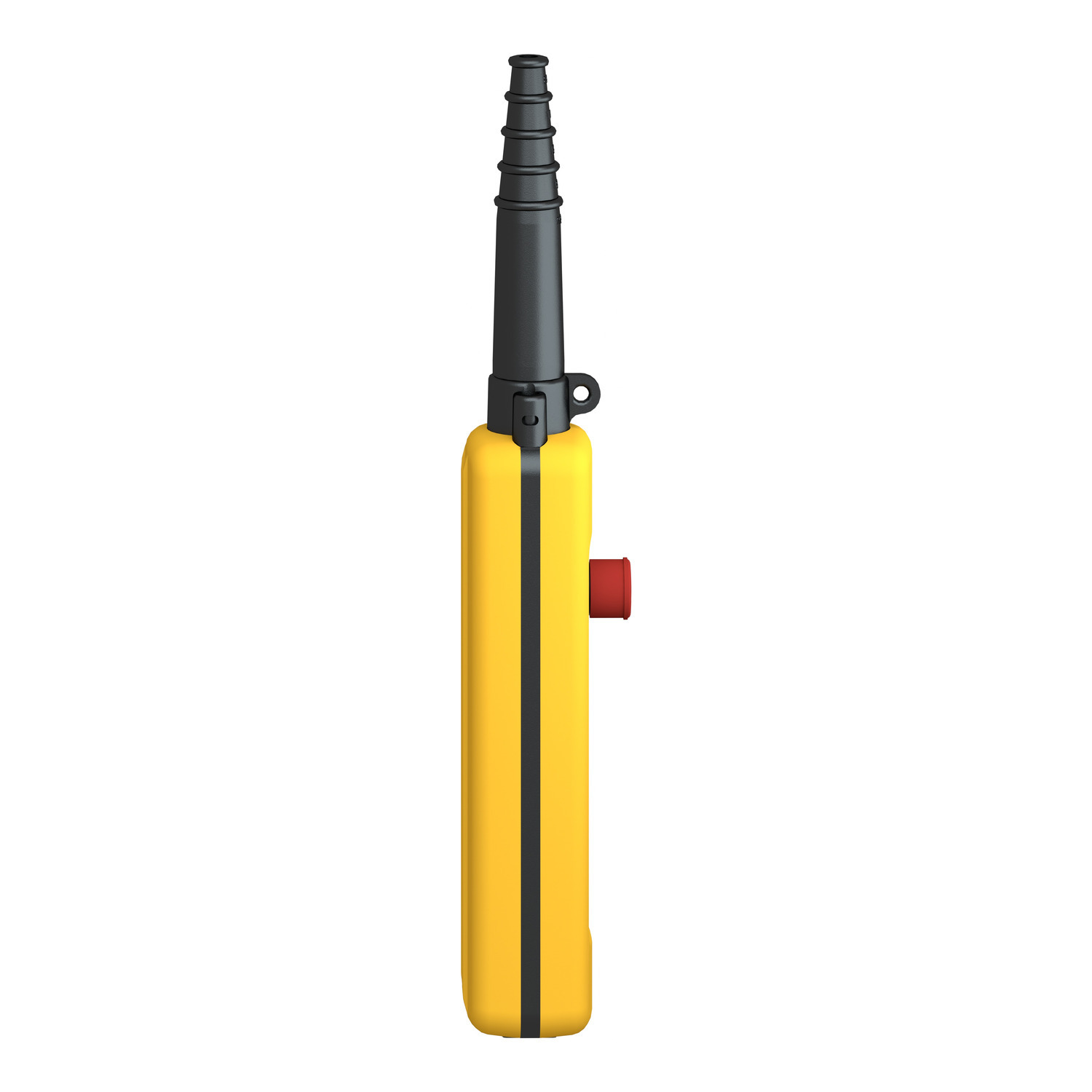

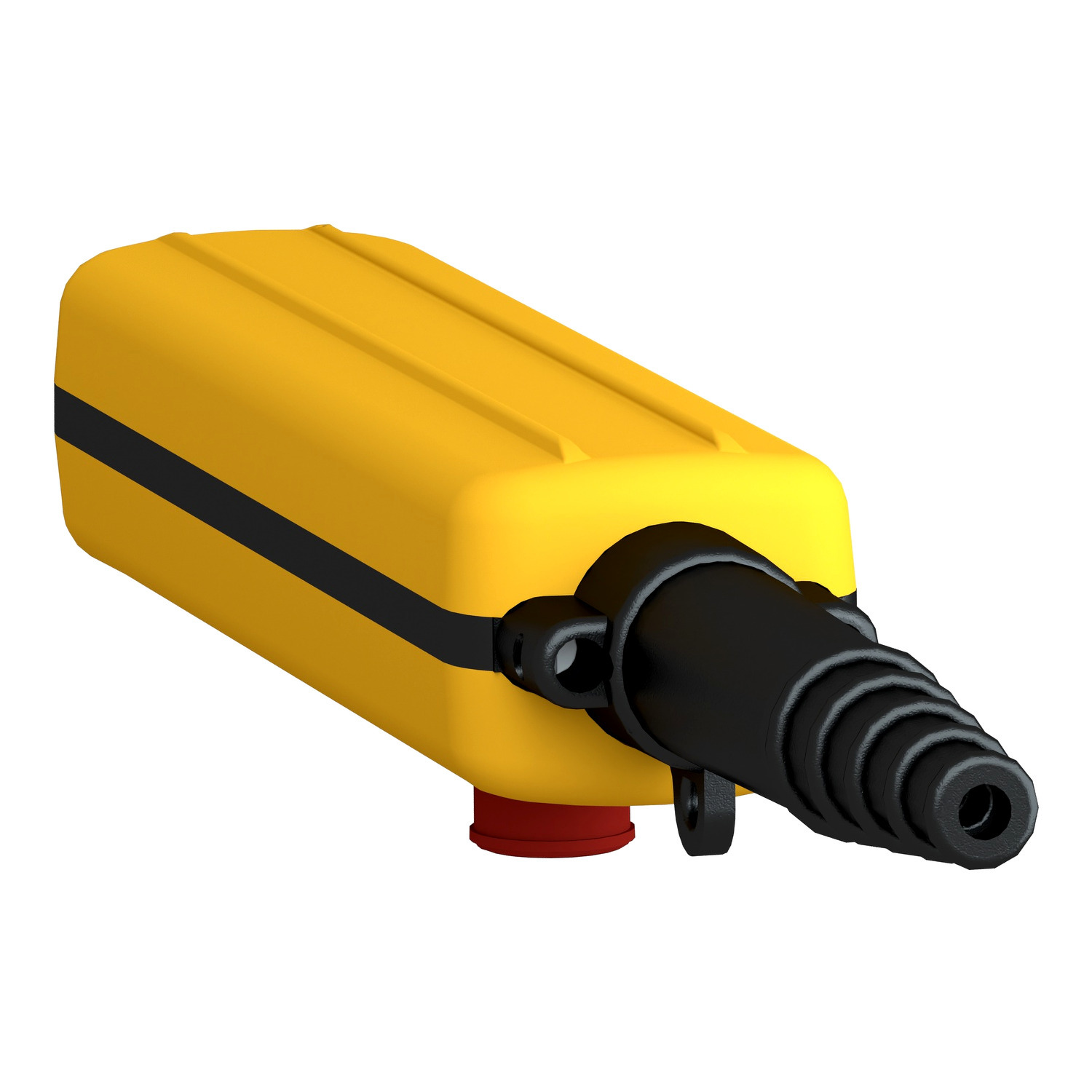

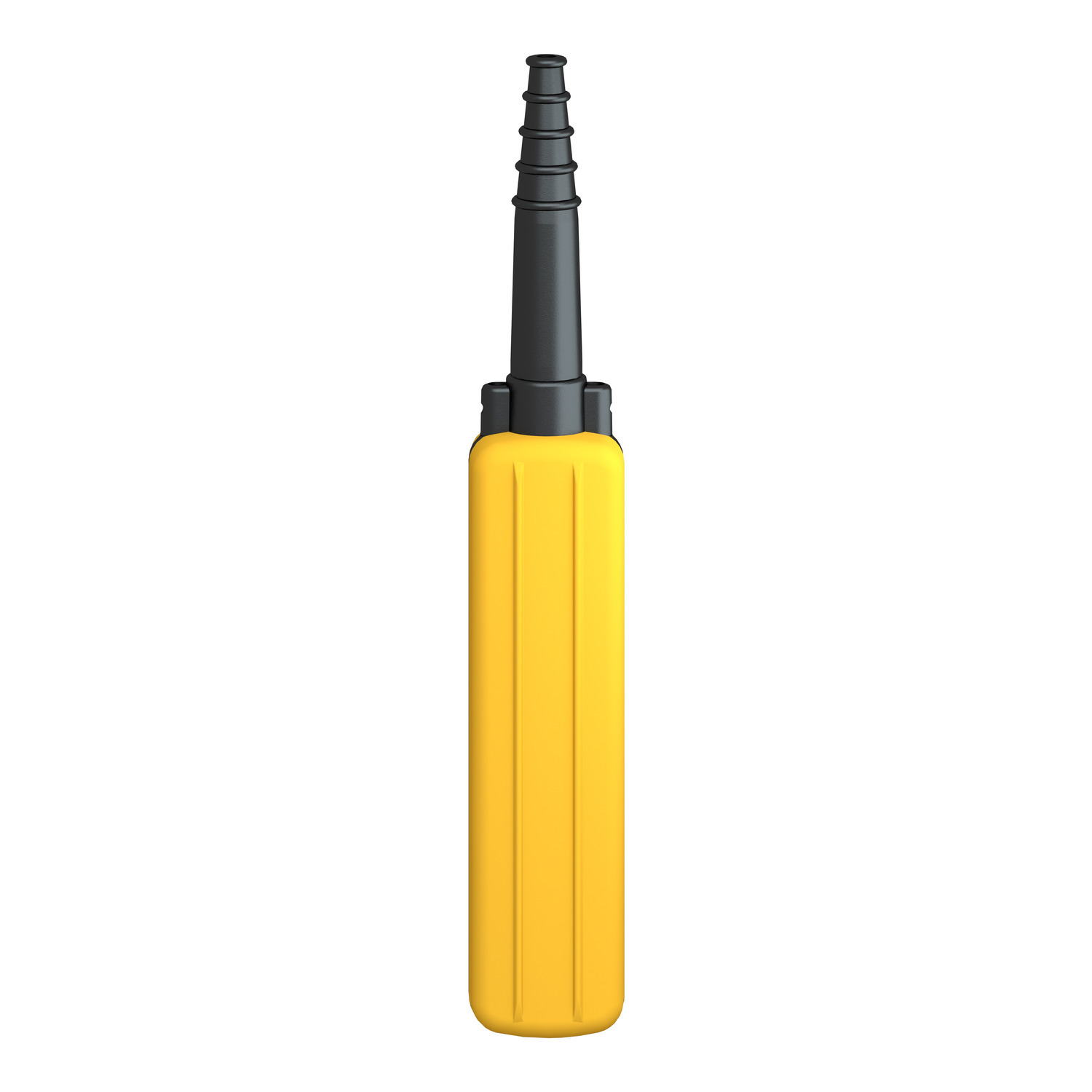

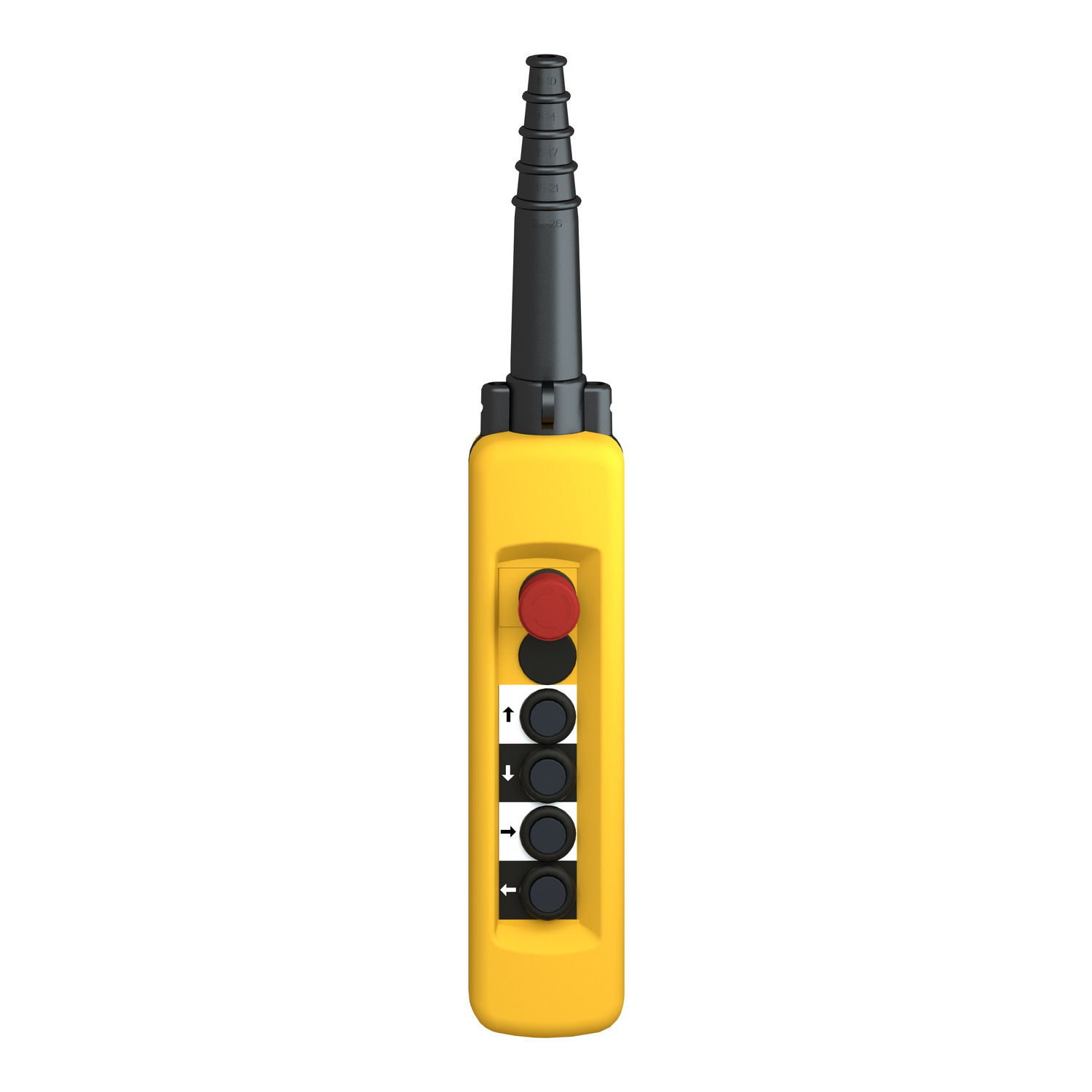

This Harmony XAC, yellow pendant station for hoist motor has single speed. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 4 push buttons and 1 emergency stop with "raise", "lower", "left", "right" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25C to 70C allows versatility in usage of product.

Manuals & Documentation
Catalog Number XACA4713
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Control of single speed hoist motor;ZB2BE101 for each direction;ZB2BE102 for emergency stop;Control circuit
Cable Entry Rubber sleeve with stepped entry 8-26 mm
Connection Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end;screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Contact Rating Slow-break
Enclosure Polypropylene
Special Features Complete ready for use;With mechanical interlocking between pairs
Standard GOST;CCC;IK08 conforming to EN 50102;UL 508;CSA C22.2 No 14;EN/IEC 60947-5-1;EN/IEC 60204-32;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=674056&lang=en-us
GTIN 03389110426878
Item Type Pendant control station;Double insulated
