Appleton

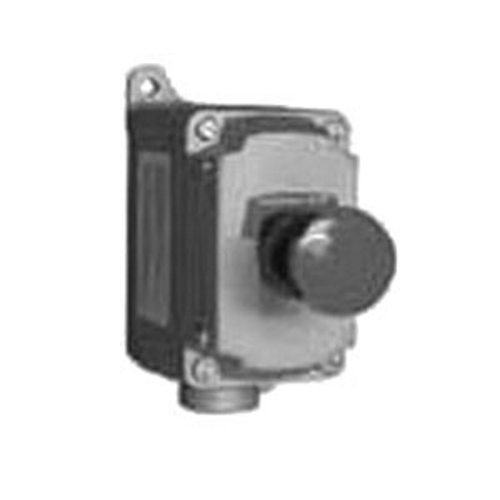

Heavy-Duty Watertight/Oiltight With Guard Transformer Factory Sealed Pushbutton; 600 Volt AC, 10 Amp, Maintained, 1 NO/1 NC, Mushroom Actuator, Malleable Iron Body, Aluminum Cover, Red

MFR:
Appleton Electric
MFR #:
EFDB175UM1
UPC:
781381701310
Item #:
625390

EFDB Series 1-Gang 1 Circuit Push Button Switch, Action: Maintained, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Actuator: Red Mushroom Head, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN De

Manuals & Documentation
Catalog Number EFDB175UM1
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Action Maintained
Application For Remote Control Of Motors
Enclosure NEMA 3, 7CD, 9EFG
Mounting Surface
Special Features Eliminate need for adding sealing fittings and compound at each conduit entrance; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity; Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation; Push button switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements. Assures positive contact and long trouble-free operation; Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration installations; Push button models also available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered
Standard UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, DClass I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
UPC 781381701310
GTIN 00781381701310
Item Type EFDB Series 1-Gang 1 Circuit Push Button Switch
